Product Specifications
| Manufacturer Part Number | 02883055 |
| Cutting Diameter (Decimal Inch) | 7.874" |
| Cutting Diameter (mm) | 200.00mm |
| Diameter Bolt Circle 1 (Decimal Inch) | 4.000" |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Connection Bore Diameter (Decimal Inch) | 2.500" |
| Connection Bore Diameter (mm) | 63.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.118" |
| Contact Surface Diameter Machine Side (mm) | 130.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 8.465" |
| Maximum Cutting Diameter (mm) | 215.00mm |
| Functional Length (Decimal Inch) | 3.150" |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Depth of Key Way (Decimal Inch) | 0.551" |
| Depth of Key Way (mm) | 14.00mm |
| Keyway Width (Decimal Inch) | 1.000" |
| Keyway Width (mm) | 25.40mm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 40 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 40 Degree |
| Maximum Rotational Speed (rpm) | 2700 rpm |
| Insert Shape Code | O |
| Shank Type | Arbor |

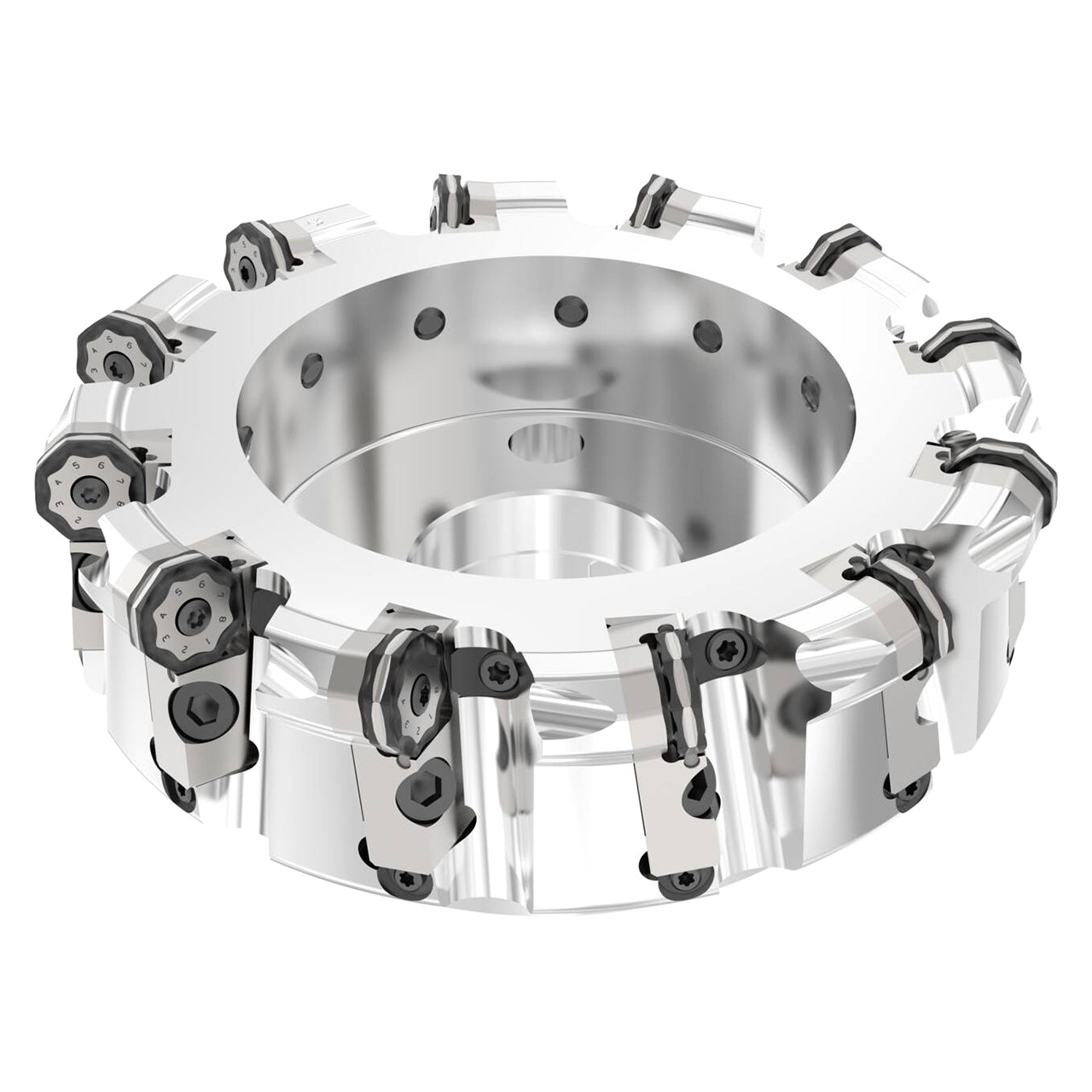

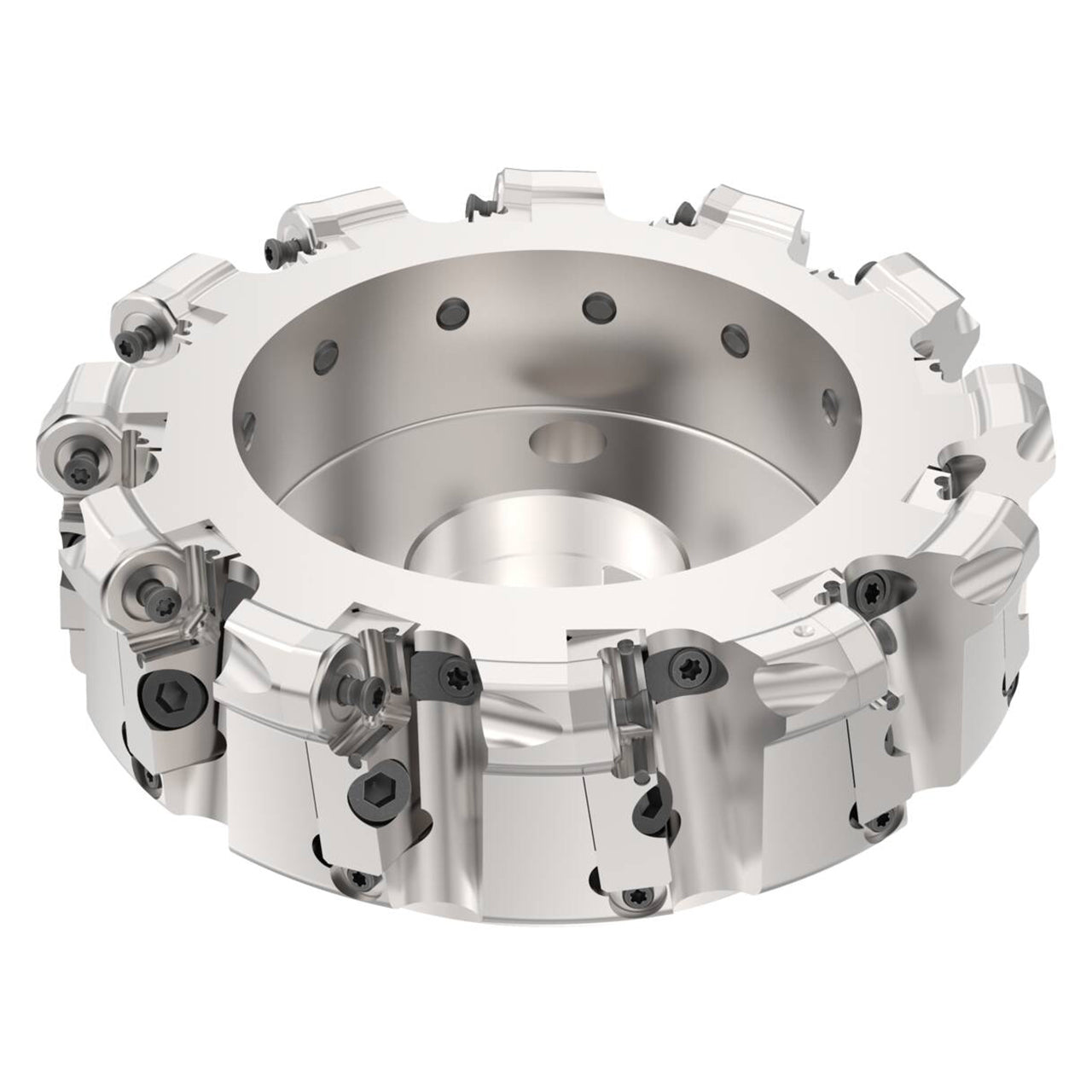

| Product Type | Indexable Face Mill Cutter |
