Seco Tools

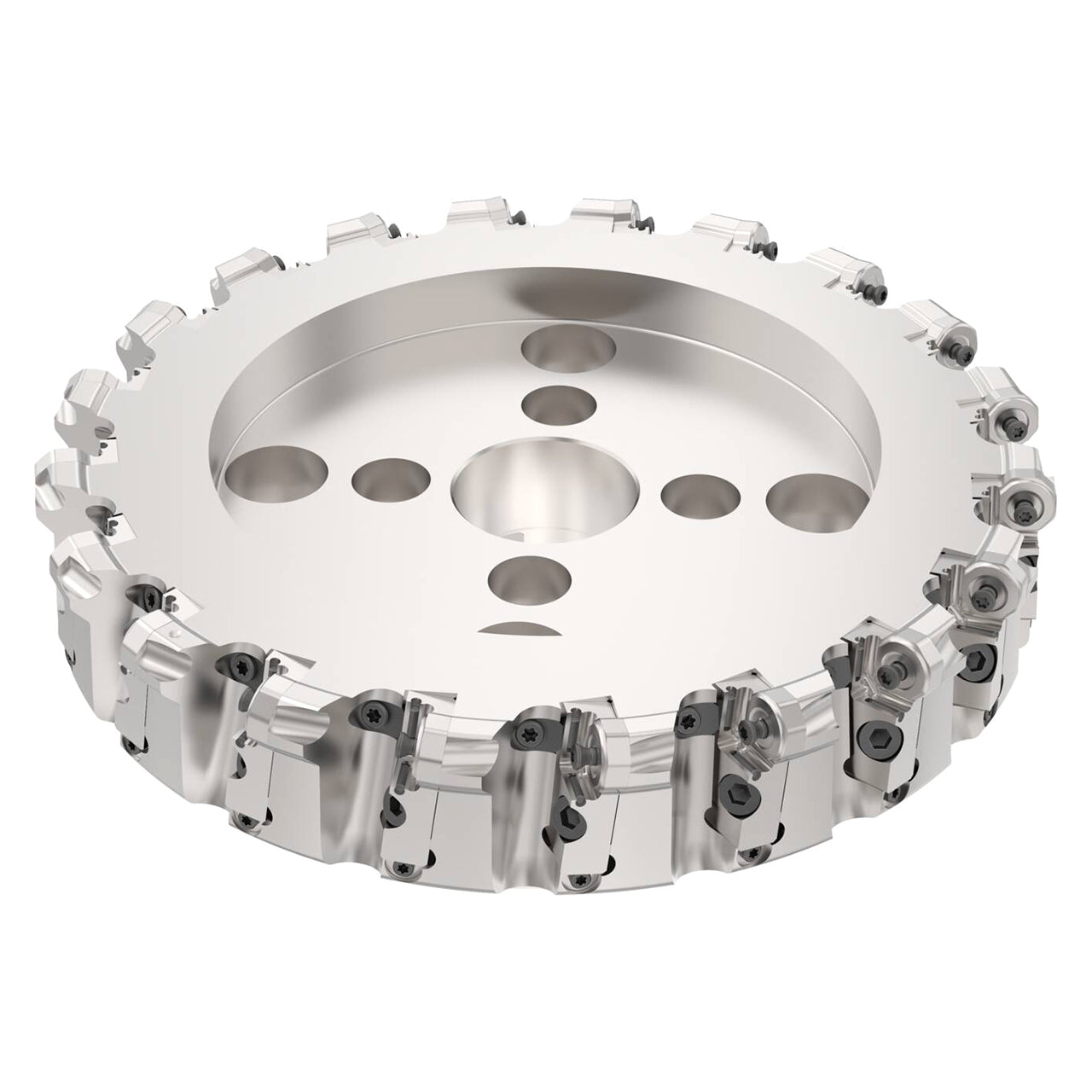

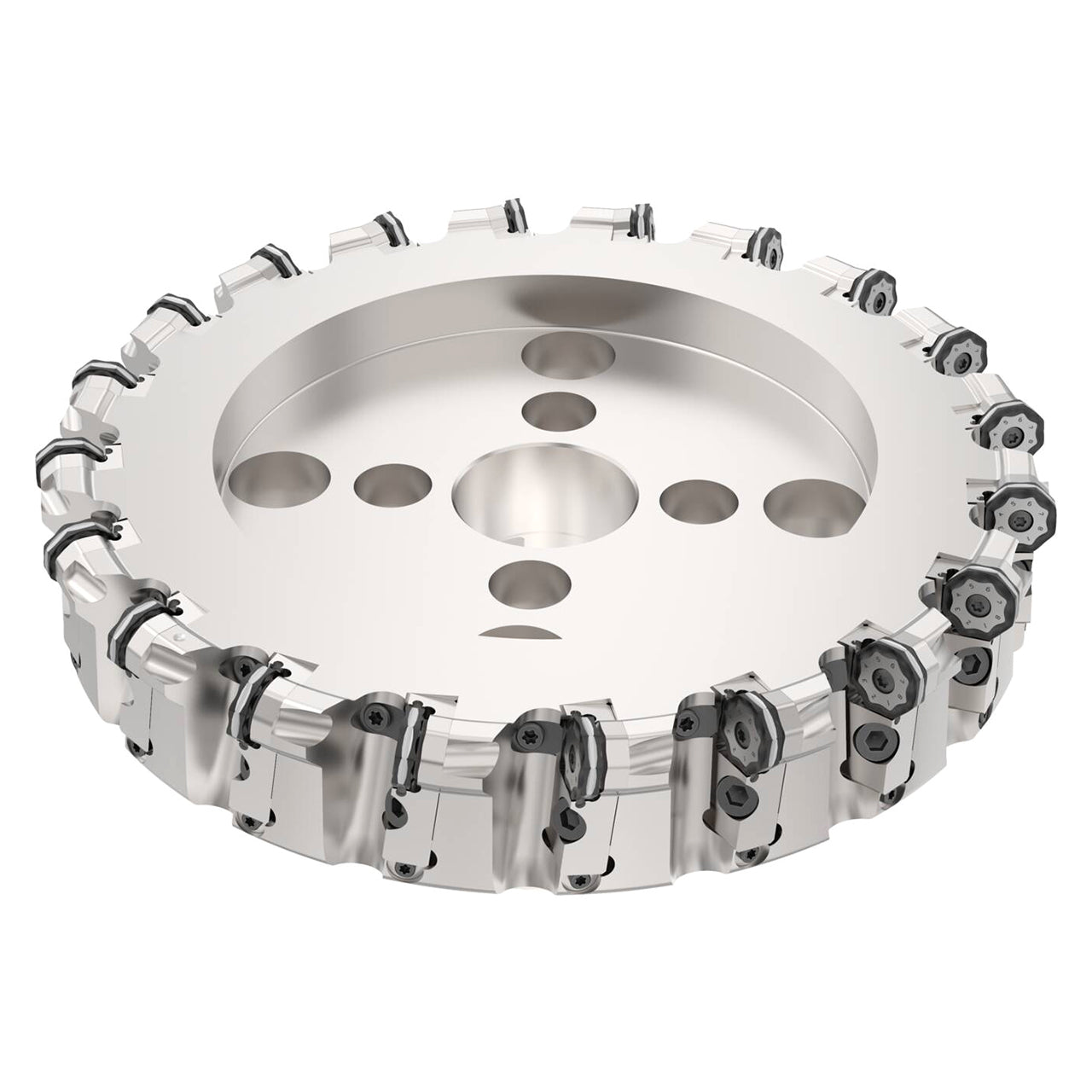

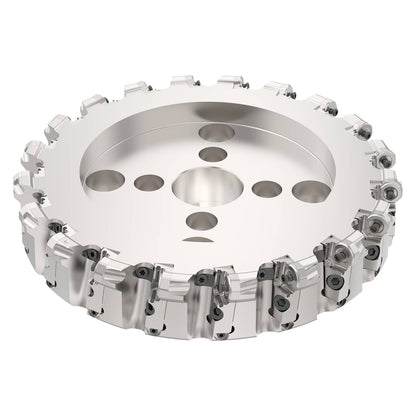

Seco Tools 02883051 | L220.48-8160-09-10CS 160.00mm Cutting Diameter x 6.00mm Depth of Cut Maximum x 80.00mm Functional Length x -8.00 Degree Rake Axial Angle 10 Cutting Edge 3100 rpm Rotational Speed L220.48 Indexable Chamfer & Angle Face Mill

Seco Tools 02883051 | L220.48-8160-09-10CS 160.00mm Cutting Diameter x 6.00mm Depth of Cut Maximum x 80.00mm Functional Length x -8.00 Degree Rake Axial Angle 10 Cutting Edge 3100 rpm Rotational Speed L220.48 Indexable Chamfer & Angle Face Mill

SKU: 23282396

$3,200.00 USD
$3,200.00 USD $3,200.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

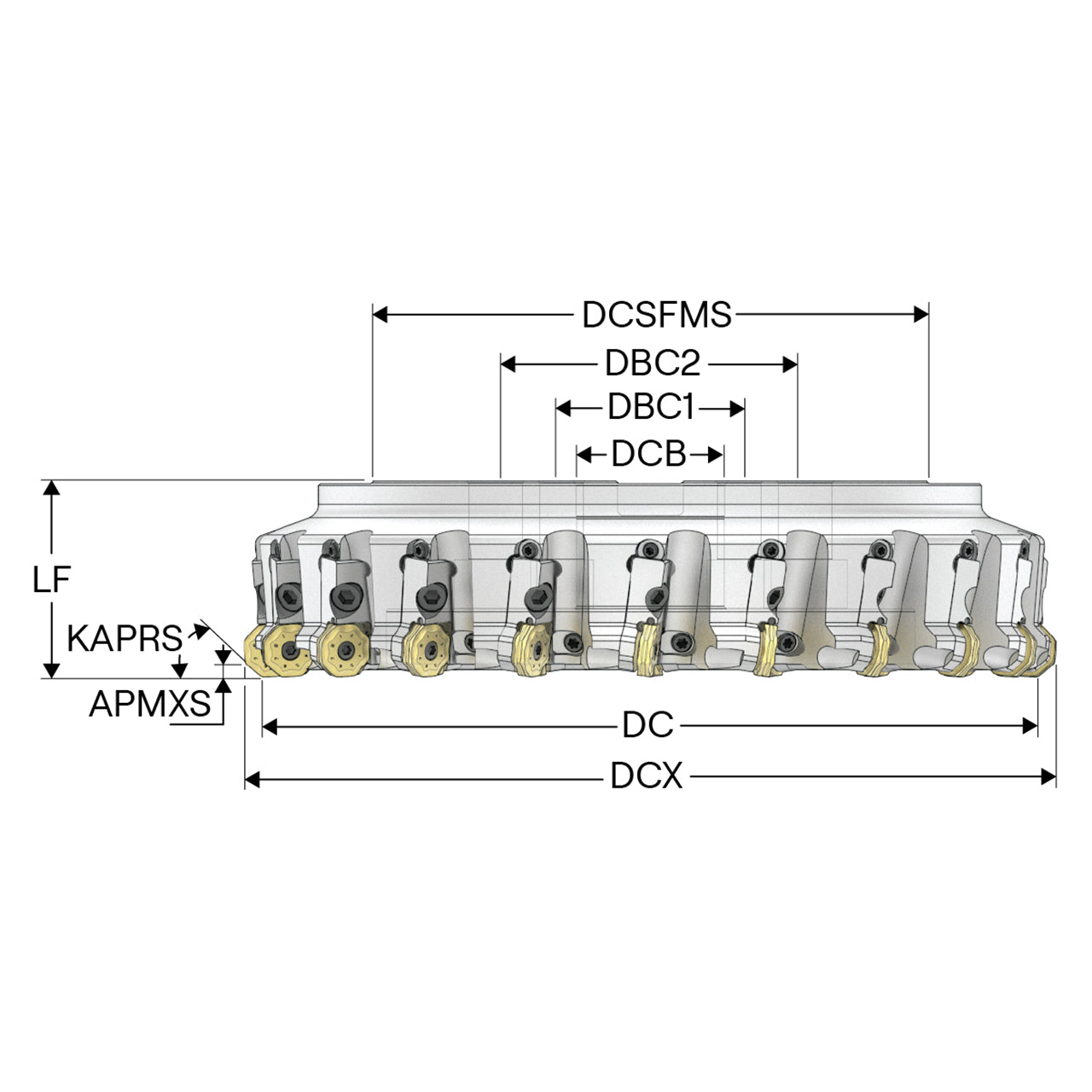

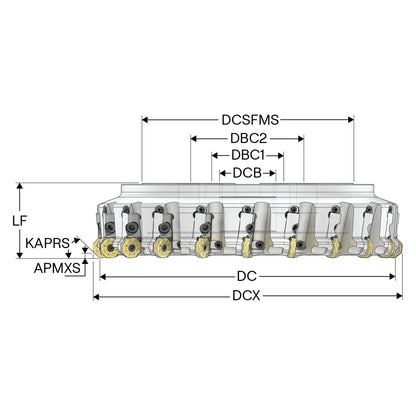

Product Specifications
Manufacturer Part Number 02883051
Depth of Cut Maximum in Feed Direction Side (mm) 6.00mm
Cutting Pitch Density Normal
Cutting Diameter (mm) 160.00mm
Contact Surface Diameter Machine Side (mm) 130.00mm
Cutting Diameter Maximum (mm) 175.00mm
Cutting Direction Left Hand
Tool Cutting Edge Angle in Feed Direction Side (Degree) 40.00 Degree
Functional Length (mm) 80.00mm
Rotational Speed Maximum 3100 rpm
Shank Type Arbor
Peripheral Effective Cutting Edge Count 10
Product Series L220.48
Product Type Indexable Chamfer & Angle Face Mill
