Product Specifications
| Manufacturer Part Number | 02883047 |
| Cutting Diameter (mm) | 200.00mm |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (mm) | 160.00mm |
| Maximum Cutting Diameter (mm) | 215.00mm |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 14.00mm |
| Keyway Width (mm) | 25.70mm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 40 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 40 Degree |
| Maximum Rotational Speed (rpm) | 2700 rpm |
| Insert Shape Code | O |
| Shank Type | Arbor |

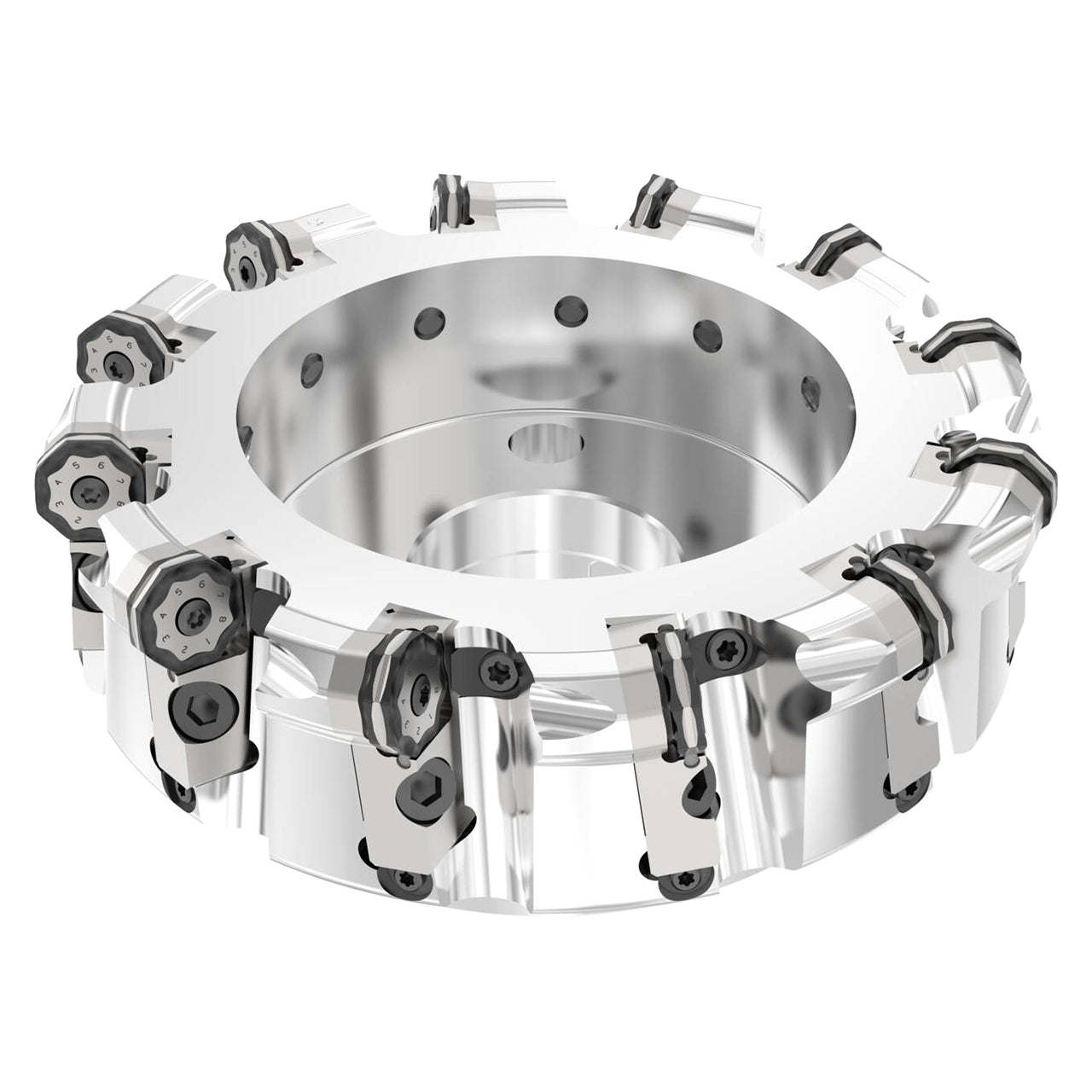

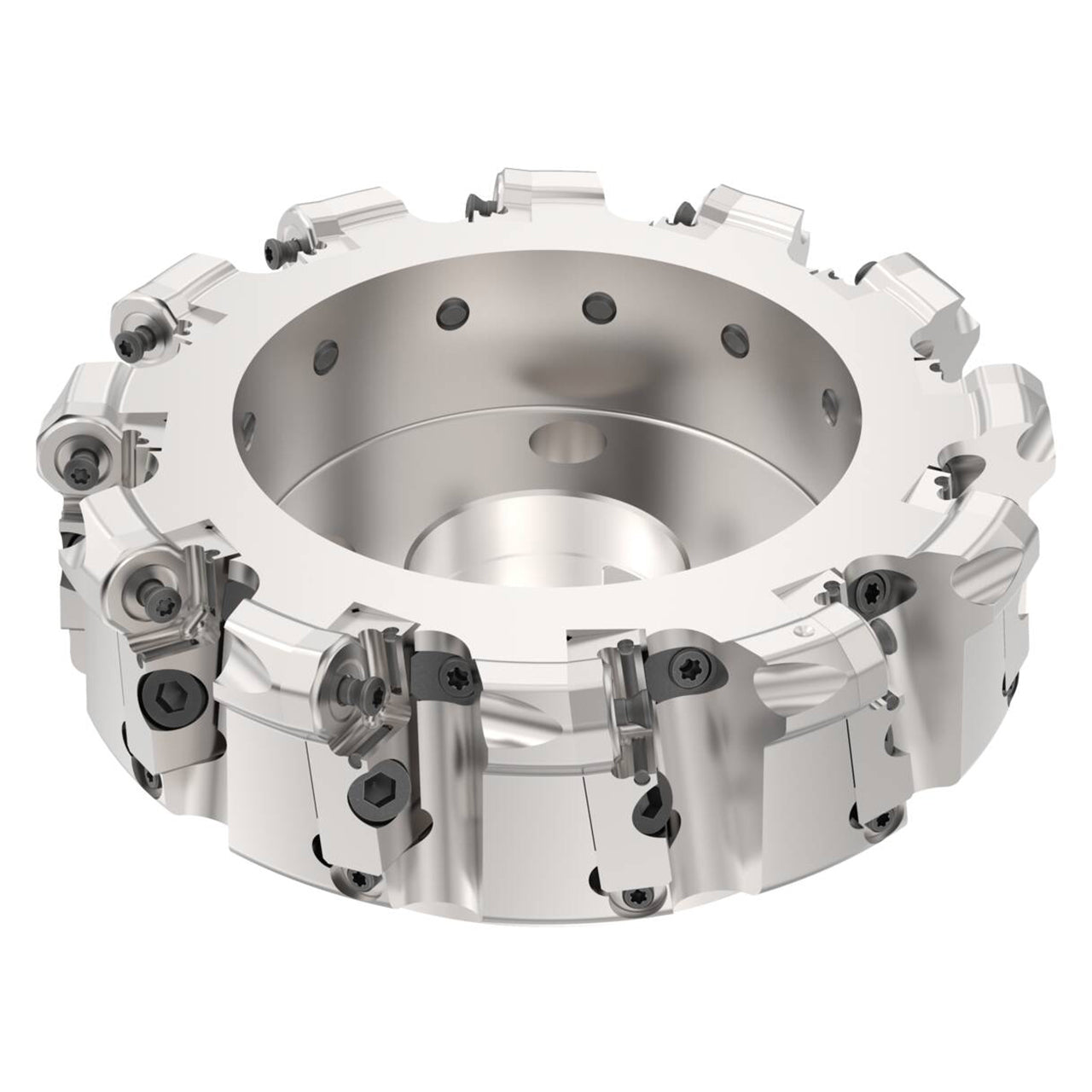

| Product Type | Indexable Face Mill Cutter |
