Product Specifications
| Manufacturer Part Number | 02880759 |
| Thread Diameter (Decimal Inch) | 0.524" |
| Thread Diameter (mm) | 13.31mm |
| Threading Chamfer Length (Decimal Inch) | 0.167" |
| Threading Chamfer Length (mm) | 4.23mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.562" |
| Connection Diameter Machine Side (mm) | 14.27mm |
| Shank Diameter (Decimal Inch) | 0.562" |
| Shank Diameter (mm) | 14.27mm |
| Functional Length (Decimal Inch) | 3.937" |
| Functional Length (mm) | 100.00mm |
| Usable Length (Decimal Inch) | 2.323" |
| Usable Length (mm) | 59.00mm |
| Thread Length (Decimal Inch) | 0.787" |
| Thread Length (mm) | 20.00mm |
| Thread Diameter Size | NPTF1/4-18 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.433" |
| Recommended Premachined Hole Diameter (mm) | 11.00mm |
| Connection Size Code | 14.27X10.69 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.435" |
| Maximum Premachined Hole Diameter (mm) | 11.05mm |
| Minimum Threads Per Inch (mm) | 18.00mm |
| Maximum Threads Per Inch (mm) | 18.00mm |
| Flute Helix Angle (Degree) | 15 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Threading Chamfer Type | C |
| Thread Form Type | NPTF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | -V |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | Vaporised |

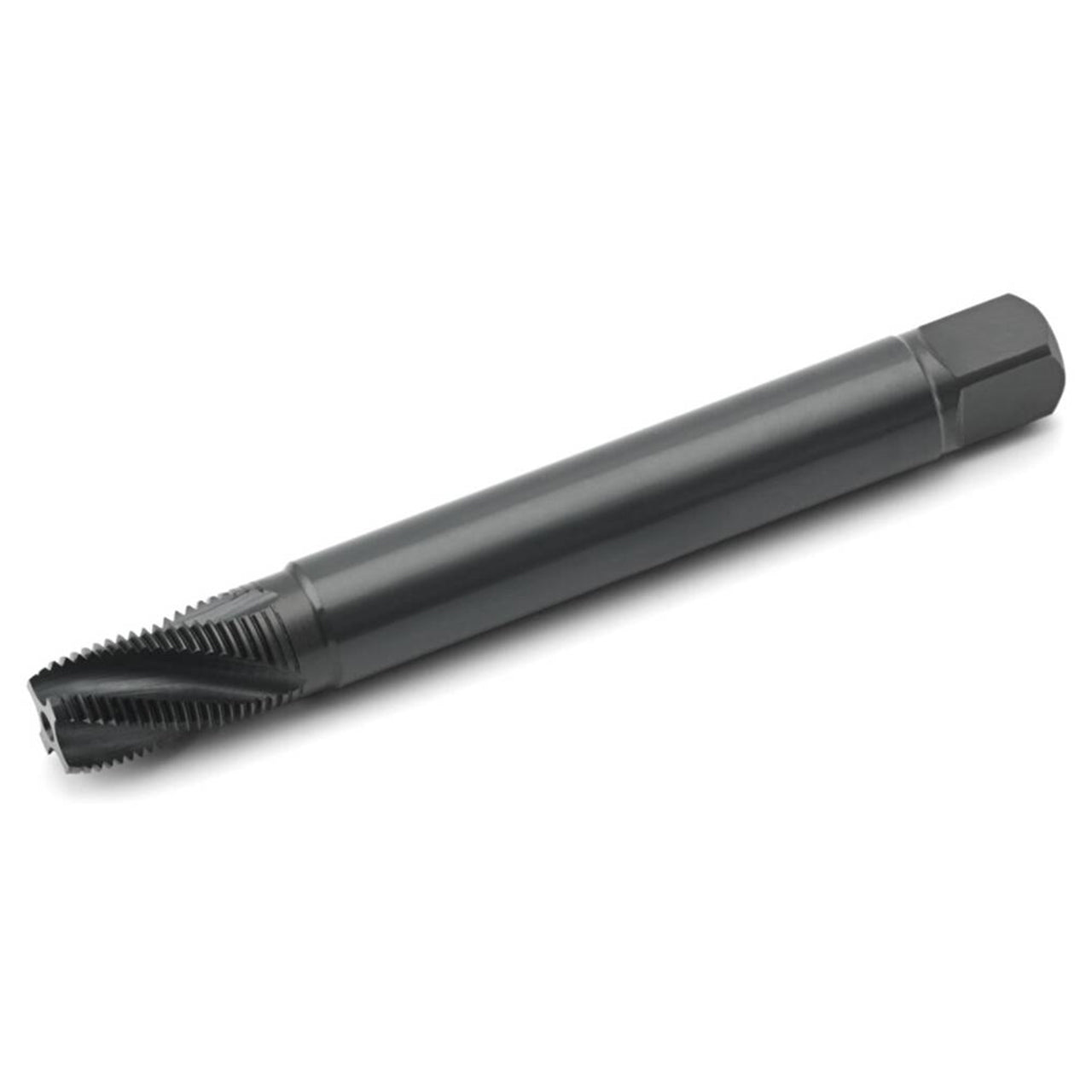

| Product Type | Spiral Flute Pipe Tap |
