Product Specifications
| Manufacturer Part Number | 02880756 |
| Thread Diameter (Decimal Inch) | 1.296" |
| Thread Diameter (mm) | 32.91mm |
| Threading Chamfer Length (Decimal Inch) | 0.261" |
| Threading Chamfer Length (mm) | 6.63mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.125" |
| Connection Diameter Machine Side (mm) | 28.58mm |
| Shank Diameter (Decimal Inch) | 1.125" |
| Shank Diameter (mm) | 28.58mm |
| Functional Length (Decimal Inch) | 5.906" |
| Functional Length (mm) | 150.00mm |
| Usable Length (Decimal Inch) | 2.284" |
| Usable Length (mm) | 58.00mm |
| Thread Length (Decimal Inch) | 1.221" |
| Thread Length (mm) | 31.00mm |
| Thread Diameter Size | NPT1-11.5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.142" |
| Recommended Premachined Hole Diameter (mm) | 29.00mm |
| Connection Size Code | 28.58X21.41 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.144" |
| Maximum Premachined Hole Diameter (mm) | 29.05mm |
| Minimum Threads Per Inch (mm) | 11.50mm |
| Maximum Threads Per Inch (mm) | 11.50mm |
| Flute Helix Angle (Degree) | 15 Degree |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Threading Chamfer Type | C |
| Thread Form Type | NPT |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | -V |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | Vaporised |

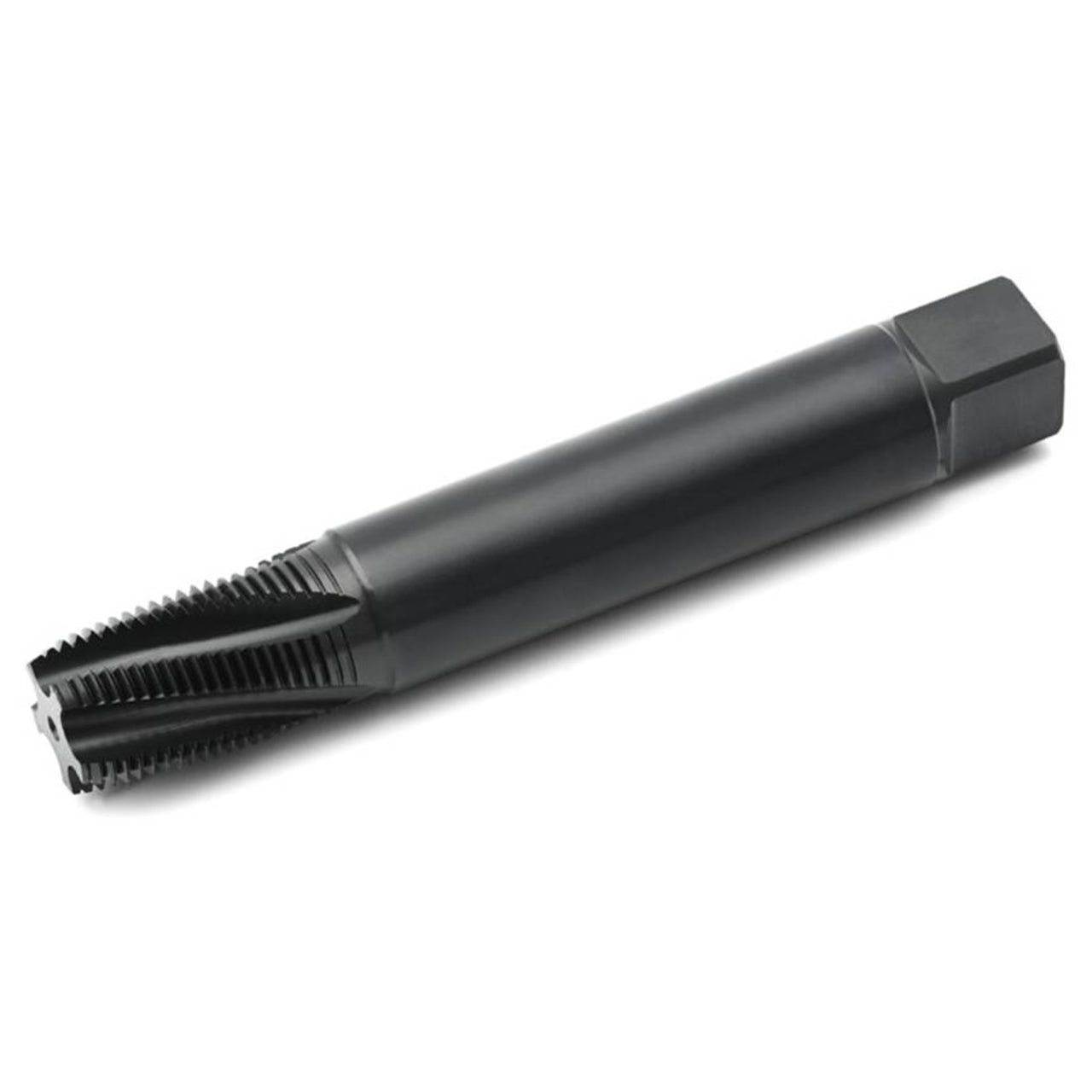

| Product Type | Spiral Flute Pipe Tap |
