Product Specifications
| Manufacturer Part Number | 02880755 |
| Thread Diameter (Decimal Inch) | 1.035" |
| Thread Diameter (mm) | 26.29mm |
| Threading Chamfer Length (Decimal Inch) | 0.214" |
| Threading Chamfer Length (mm) | 5.44mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.906" |
| Connection Diameter Machine Side (mm) | 23.01mm |
| Shank Diameter (Decimal Inch) | 0.906" |
| Shank Diameter (mm) | 23.01mm |
| Functional Length (Decimal Inch) | 5.512" |
| Functional Length (mm) | 140.00mm |
| Usable Length (Decimal Inch) | 3.071" |
| Usable Length (mm) | 78.00mm |
| Thread Length (Decimal Inch) | 1.024" |
| Thread Length (mm) | 26.00mm |
| Thread Diameter Size | NPT3/4-14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.913" |
| Recommended Premachined Hole Diameter (mm) | 23.20mm |
| Connection Size Code | 23.01X17.25 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.915" |
| Maximum Premachined Hole Diameter (mm) | 23.25mm |
| Minimum Threads Per Inch (mm) | 14.00mm |
| Maximum Threads Per Inch (mm) | 14.00mm |
| Flute Helix Angle (Degree) | 15 Degree |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Threading Chamfer Type | C |
| Thread Form Type | NPT |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | -V |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | Vaporised |

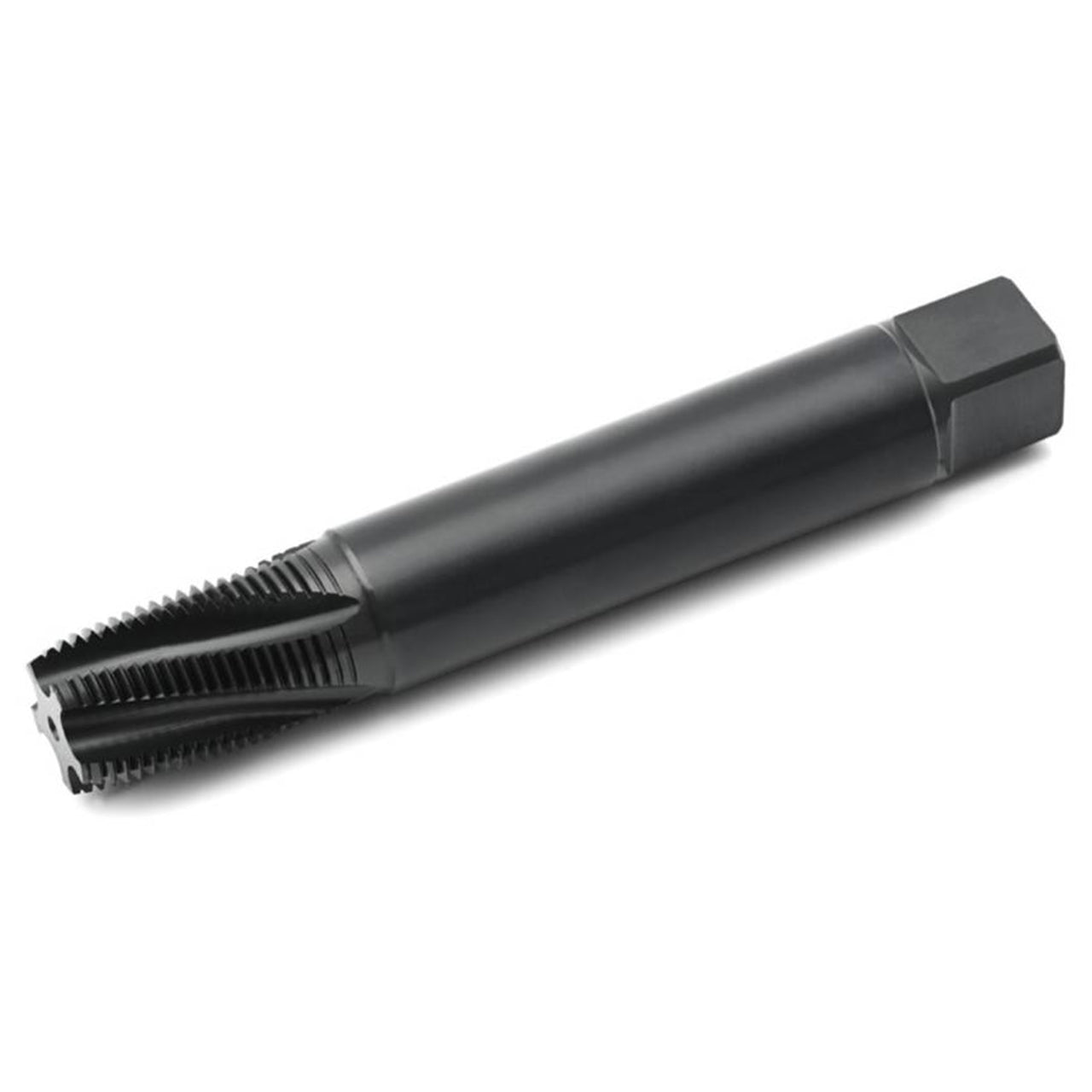

| Product Type | Spiral Flute Pipe Tap |
