Product Specifications
| Manufacturer Part Number | 02880753 |
| Thread Diameter (Decimal Inch) | 0.662" |
| Thread Diameter (mm) | 16.81mm |
| Threading Chamfer Length (Decimal Inch) | 0.167" |
| Threading Chamfer Length (mm) | 4.23mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.700" |
| Connection Diameter Machine Side (mm) | 17.78mm |
| Shank Diameter (Decimal Inch) | 0.700" |
| Shank Diameter (mm) | 17.78mm |
| Functional Length (Decimal Inch) | 4.331" |
| Functional Length (mm) | 110.00mm |
| Usable Length (Decimal Inch) | 2.638" |
| Usable Length (mm) | 67.00mm |
| Thread Length (Decimal Inch) | 0.787" |
| Thread Length (mm) | 20.00mm |
| Thread Diameter Size | NPT3/8-18 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.563" |
| Recommended Premachined Hole Diameter (mm) | 14.30mm |
| Connection Size Code | 17.78X13.49 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.565" |
| Maximum Premachined Hole Diameter (mm) | 14.35mm |
| Minimum Threads Per Inch (mm) | 18.00mm |
| Maximum Threads Per Inch (mm) | 18.00mm |
| Flute Helix Angle (Degree) | 15 Degree |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Threading Chamfer Type | C |
| Thread Form Type | NPT |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | -V |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | Vaporised |

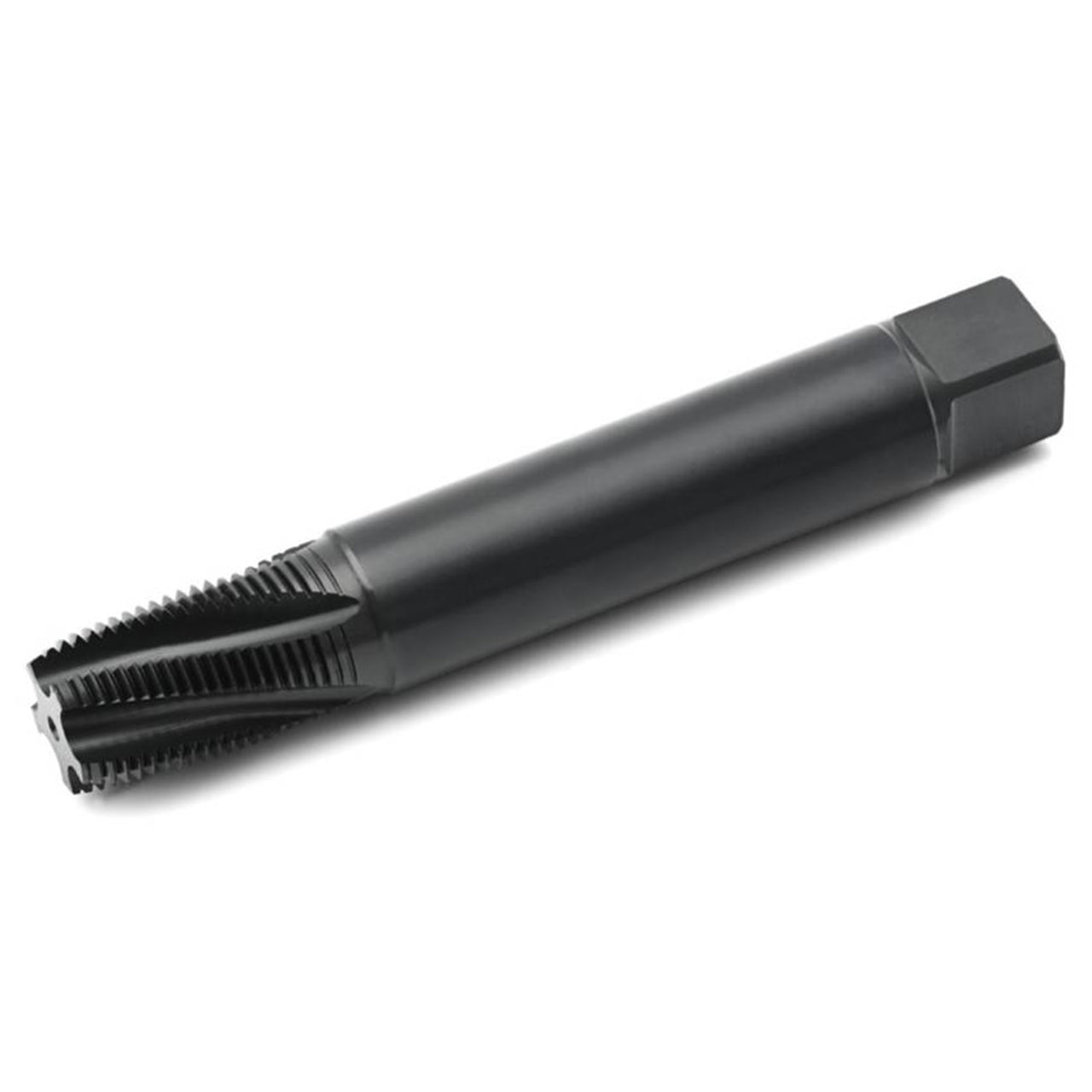

| Product Type | Spiral Flute Pipe Tap |
