Product Specifications
| Manufacturer Part Number | 02870633 |
| Body Diameter (Decimal Inch) | 0.532" |
| Body Diameter (mm) | 13.50mm |
| Body Diameter 1 (Decimal Inch) | 0.618" |
| Body Diameter 1 (mm) | 15.70mm |
| Body Diameter 2 (Decimal Inch) | 0.728" |
| Body Diameter 2 (mm) | 18.50mm |
| Body Length (Decimal Inch) | 1.612" |
| Body Length (mm) | 40.95mm |
| Body Length 1 (Decimal Inch) | 0.394" |
| Body Length 1 (mm) | 10.00mm |
| Body Length 2 (Decimal Inch) | 0.984" |
| Body Length 2 (mm) | 25.00mm |
| Body Length 3 (Decimal Inch) | 1.612" |
| Body Length 3 (mm) | 40.95mm |
| Functional Length (Decimal Inch) | 2.362" |
| Functional Length (mm) | 60.00mm |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Overall Length (Decimal Inch) | 5.055" |
| Overall Length (mm) | 128.40mm |
| Body Half Taper Angle Degree) | 5.3 Degree |
| Data Chip Provision | 1 |

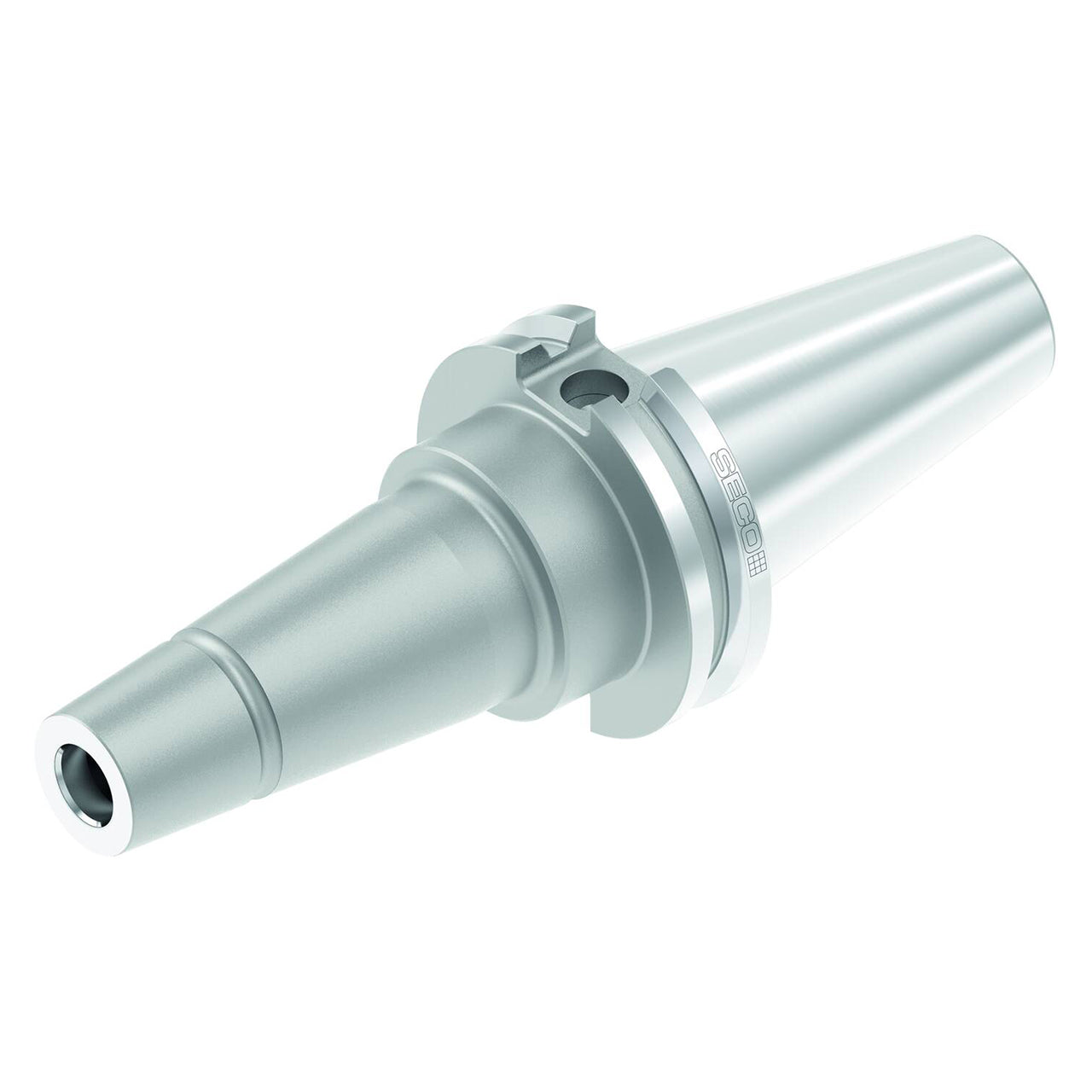

| Product Type | End Mill Holder |
