Product Specifications
| Manufacturer Part Number | 02869738 |
| Cutting Diameter (Decimal Inch) | 6.000" |
| Cutting Diameter (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.875" |
| Contact Surface Diameter Machine Side (mm) | 47.63mm |
| Functional Length (Decimal Inch) | 0.500" |
| Functional Length (mm) | 12.70mm |
| Keyway Width (Decimal Inch) | 0.312" |
| Keyway Width (mm) | 7.92mm |
| Cutting Width (Decimal Inch) | 0.500" |
| Cutting Width (mm) | 12.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.500" |
| Maximum Depth of Cut (mm) | 12.70mm |
| Maximum Cutting Depth (Decimal Inch) | 2.000" |
| Maximum Cutting Depth (mm) | 50.80mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 4700 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 335.19-1207 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

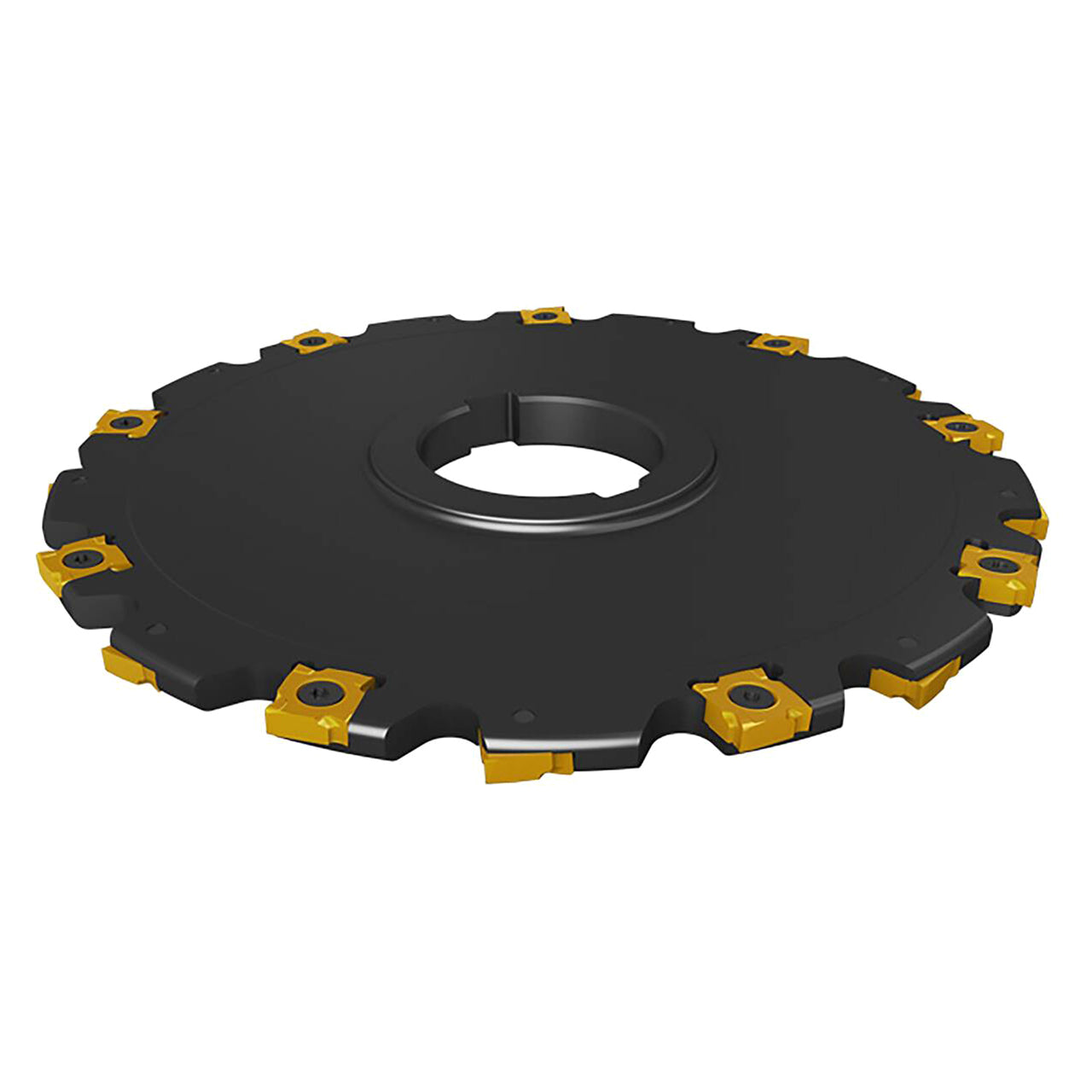

| Product Type | Indexable Slotting Cutter |
