Product Specifications
| Manufacturer Part Number | 02865419 |

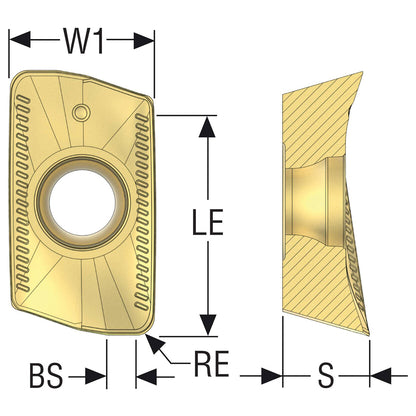

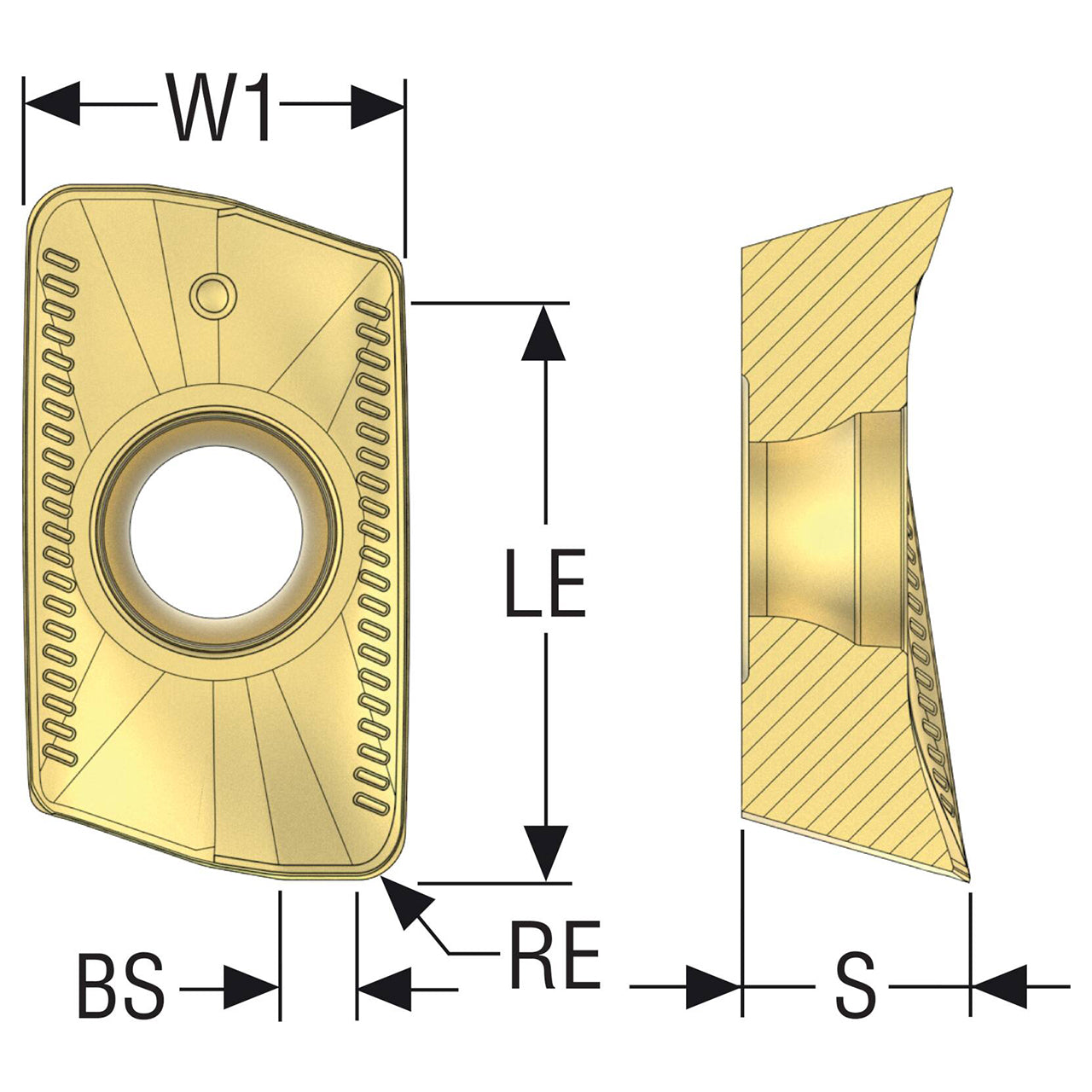

| Fixing Hole Diameter (Decimal Inch) | 0.118" |
| Fixing Hole Diameter (mm) | 3.00mm |
| Wiper Edge Length (Decimal Inch) | 0.024" |
| Wiper Edge Length (mm) | 0.60mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.366" |
| Cutting Edge Effective Length (mm) | 9.30mm |
| Corner Radius (Decimal Inch) | 0.079" |
| Corner Radius (mm) | 2.00mm |
| Insert Thickness (Decimal Inch) | 0.151" |
| Insert Thickness (mm) | 3.83mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME07 |
| Pocket Seat Code of The Cutter | XO.X10T3 |
| Insert Size And Shape | XOMX10T3 |
| Insert Rake Angle (Degree) | 20.4 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

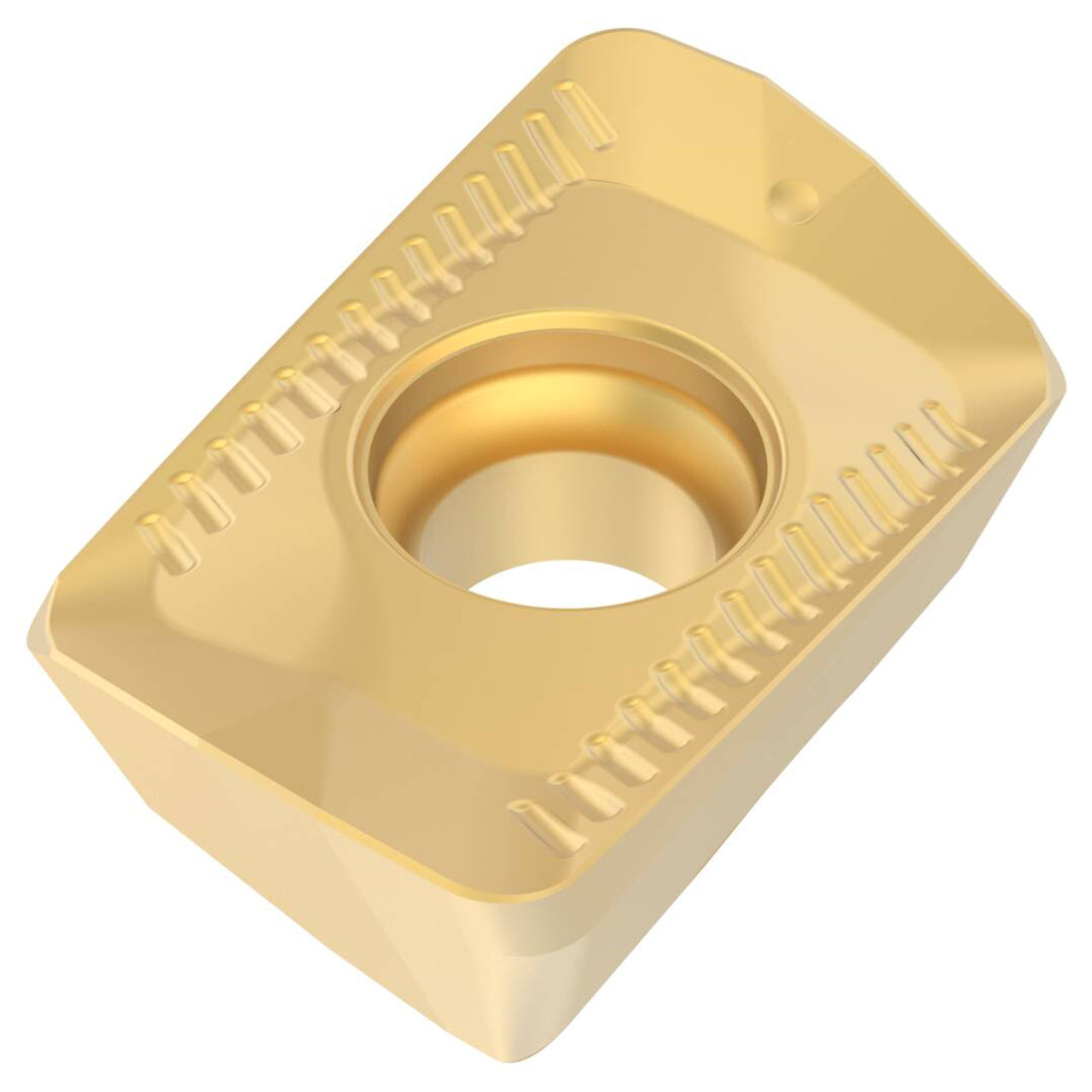

| Product Type | Square Shoulder Milling Insert |
