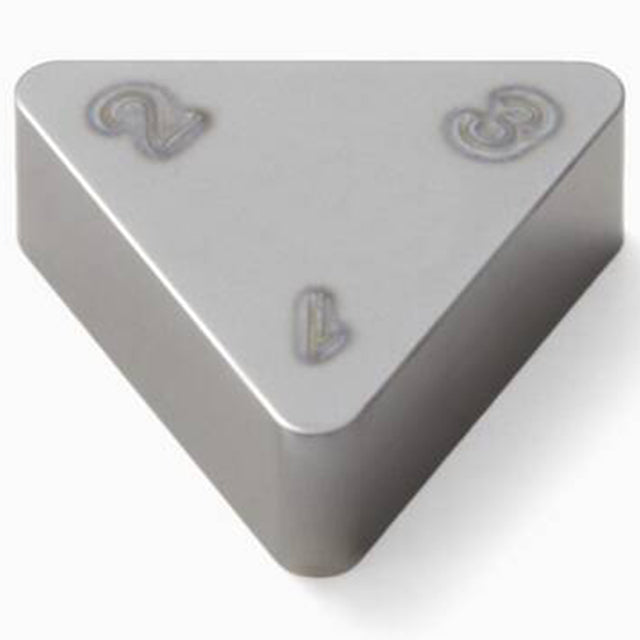

Product Specifications
| Manufacturer Part Number | 02848797 |
| Inscribed Circle Diameter (Decimal Inch) | 0.250" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Wiper Edge Length (Decimal Inch) | 0.018" |
| Wiper Edge Length (mm) | 0.45mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.323" |
| Cutting Edge Effective Length (mm) | 8.20mm |
| Insert Width (Decimal Inch) | 0.173" |
| Insert Width (mm) | 4.40mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.125" |
| Insert Thickness (mm) | 3.18mm |
| Cutting Edge Condition Code | S |
| Cutting Edge Count | 6 |
| Insert Size And Shape | TN1103 |
| Insert Included Angle (Degree) | 60 Degree |
| Insert Hand | Right Hand |
| Material | PCBN |
| Product Type | Turning Insert |
