Product Specifications
| Manufacturer Part Number | 02846691 |
| Cutting Diameter (mm) | 90.00mm |
| Minimum Cutting Diameter (mm) | 89.00mm |
| Connection Diameter Machine Side (mm) | 28.00mm |
| Maximum Cutting Diameter (mm) | 90.00mm |
| Flange Diameter (mm) | 50.00mm |
| Shank Diameter (mm) | 28.00mm |
| Shank Length (mm) | 30.00mm |
| Usable Length (mm) | 500.00mm |
| Overall Length (mm) | 160.00mm |
| Adjustment Range (mm) | 5.00mm |
| Shank Type | Graflex |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 87 Degree |

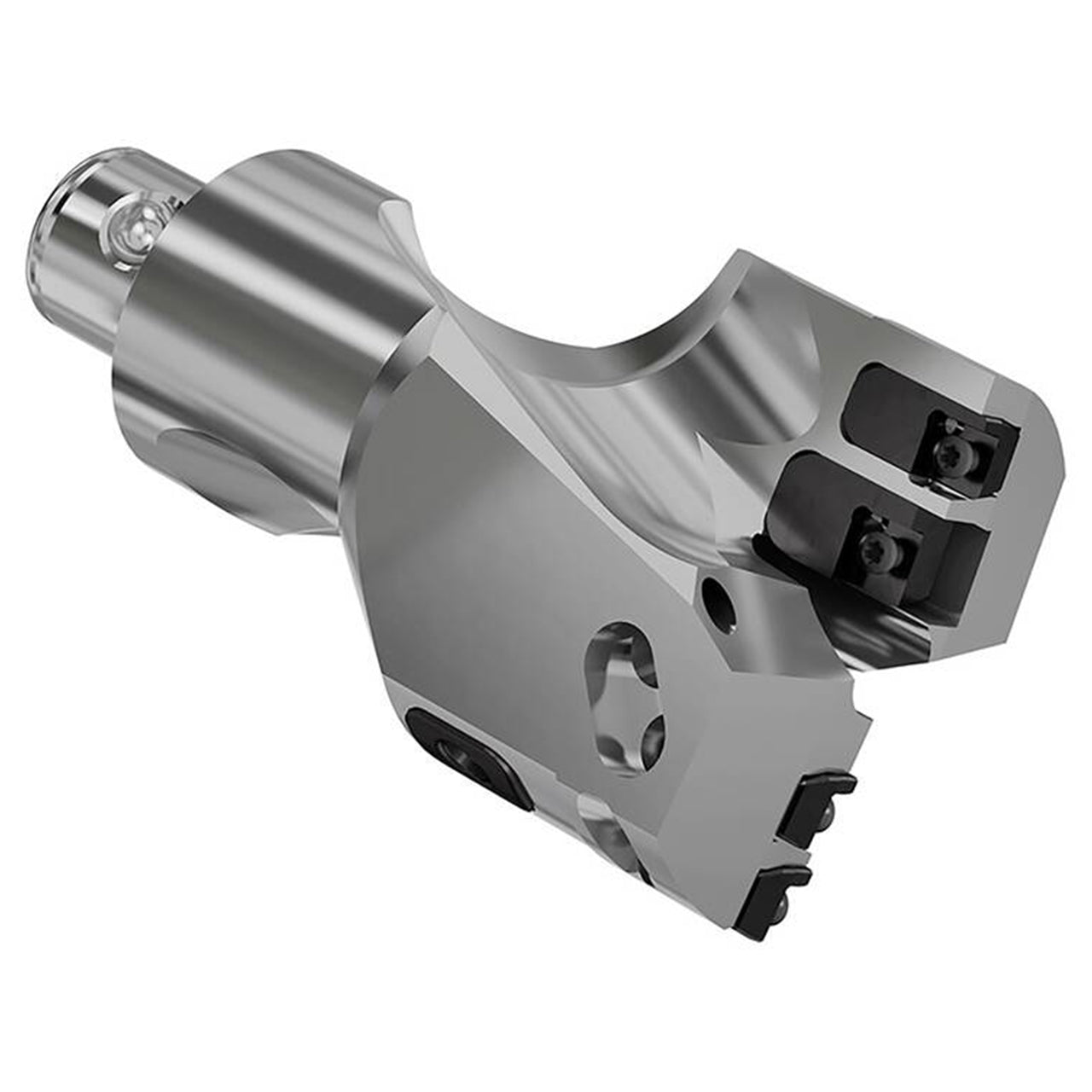

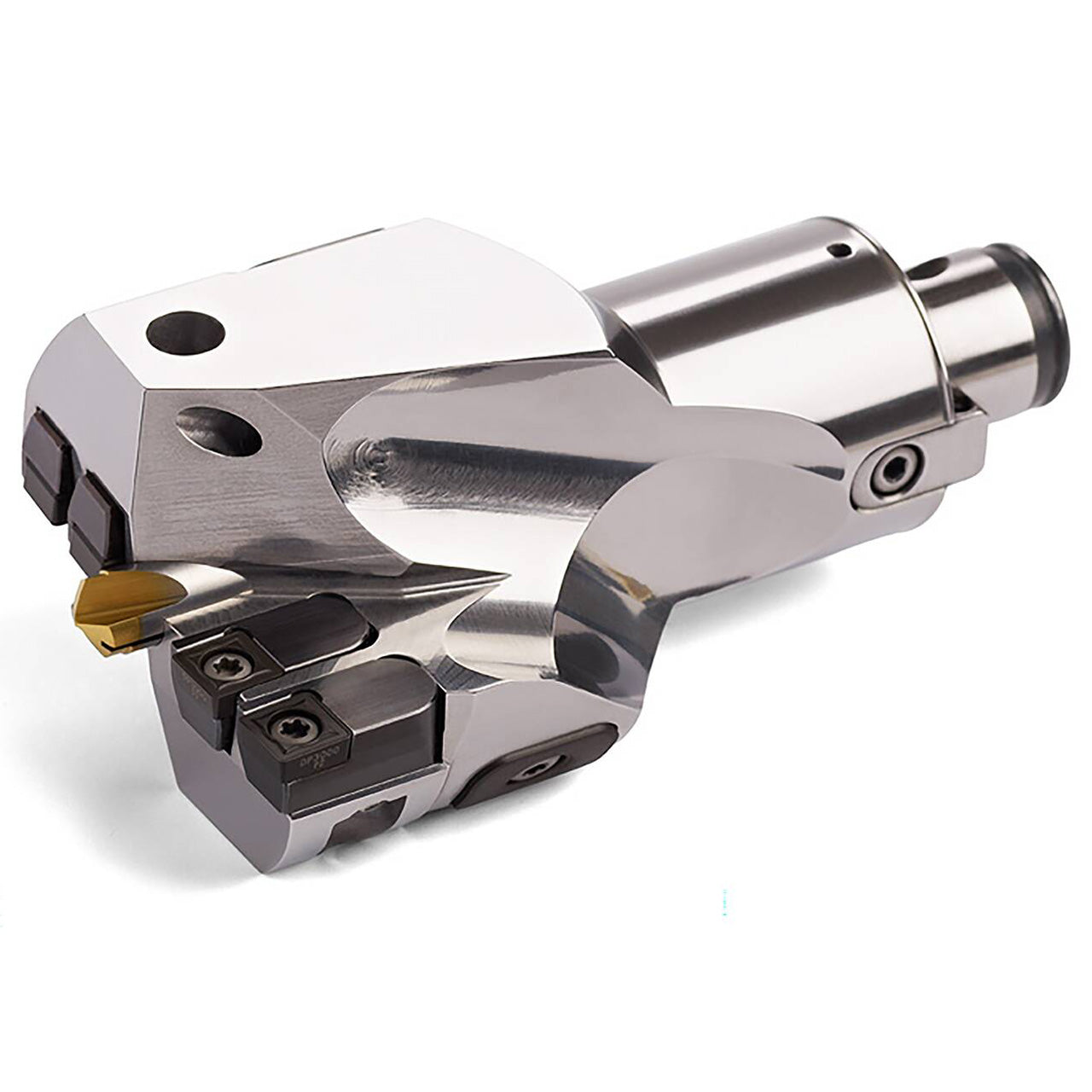

| Product Type | Modular Drill Head |
