Product Specifications
| Manufacturer Part Number | 02845593 |
| Body Diameter 1 (Decimal Inch) | 1.732" |
| Body Diameter 1 (mm) | 44.00mm |
| Body Diameter 2 (Decimal Inch) | 2.092" |
| Body Diameter 2 (mm) | 53.13mm |
| Body Diameter 3 (Decimal Inch) | 3.839" |
| Body Diameter 3 (mm) | 97.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Thread Diameter Size | M16x1 |
| Body Length (Decimal Inch) | 4.803" |
| Body Length (mm) | 122.00mm |
| Body Length 1 (Decimal Inch) | 2.284" |
| Body Length 1 (mm) | 58.00mm |
| Functional Length (Decimal Inch) | 4.685" |
| Functional Length (mm) | 119.00mm |
| Minimum Functional Length (Decimal Inch) | 4.291" |
| Protruding Length (Decimal Inch) | 6.299" |
| Protruding Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 1.614" |
| Clamping Length (mm) | 41.00mm |
| Overall Length (Decimal Inch) | 10.307" |
| Overall Length (mm) | 261.80mm |
| Connection Bore Depth (mm) | 52.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.847" |
| Radial Location (mm) | 21.50mm |

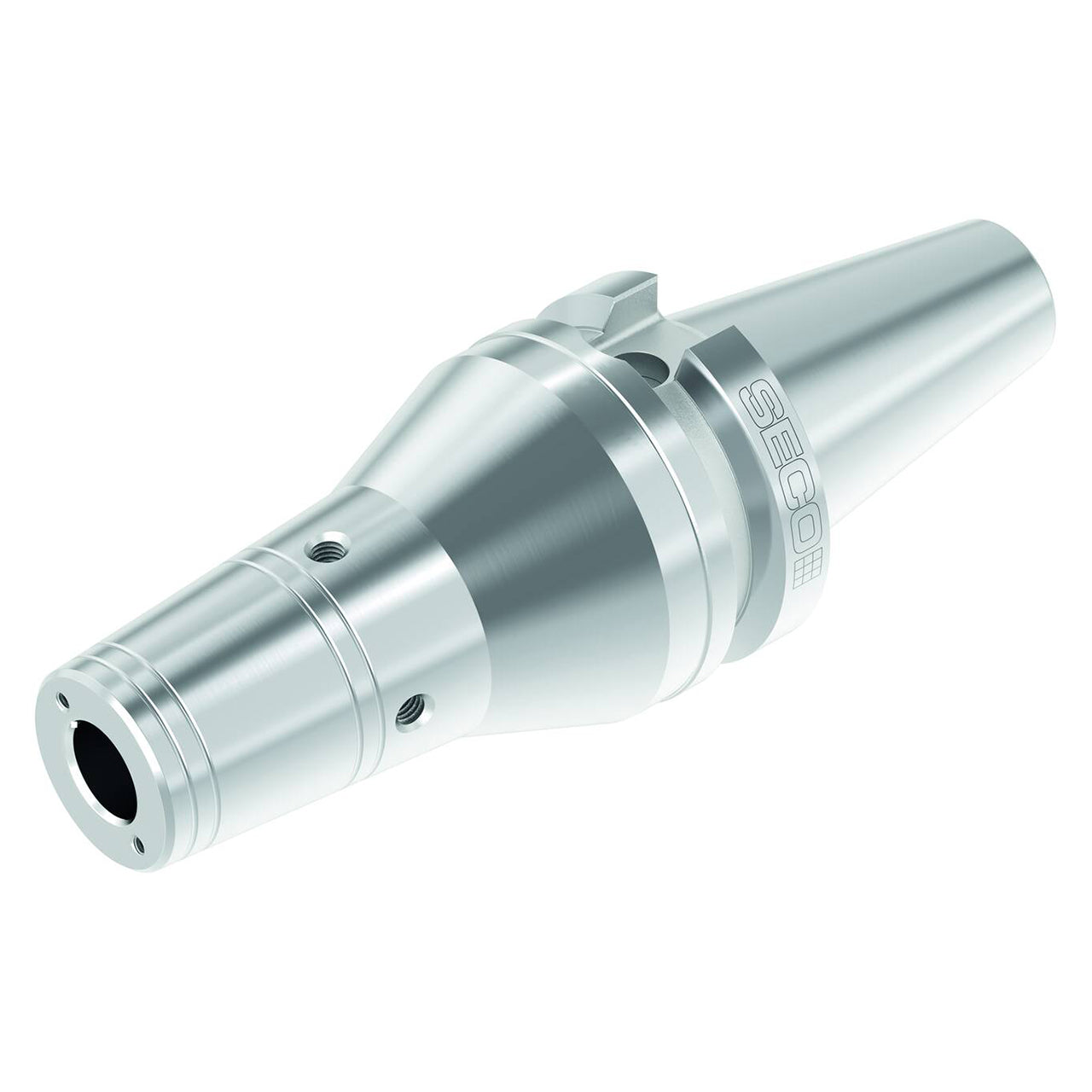

| Product Type | Shrink-Fit Tool Holder |
