Product Specifications
| Manufacturer Part Number | 02845497 |
| Body Diameter 1 (Decimal Inch) | 1.299" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Decimal Inch) | 1.659" |
| Body Diameter 2 (mm) | 42.13mm |
| Body Diameter 3 (Decimal Inch) | 3.445" |
| Body Diameter 3 (mm) | 87.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.630" |
| Connection Bore Diameter (mm) | 16.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Minimum Connection Bore Diameter (mm) | 16.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Thread Diameter Size | M12x1 |
| Body Length (Decimal Inch) | 5.158" |
| Body Length (mm) | 131.00mm |
| Body Length 1 (Decimal Inch) | 2.284" |
| Body Length 1 (mm) | 58.00mm |
| Functional Length (Decimal Inch) | 4.764" |
| Functional Length (mm) | 121.00mm |
| Minimum Functional Length (Decimal Inch) | 4.370" |
| Protruding Length (Decimal Inch) | 6.299" |
| Protruding Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 1.535" |
| Clamping Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 8.268" |
| Overall Length (mm) | 210.00mm |
| Connection Bore Depth (mm) | 50.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.669" |
| Radial Location (mm) | 17.00mm |

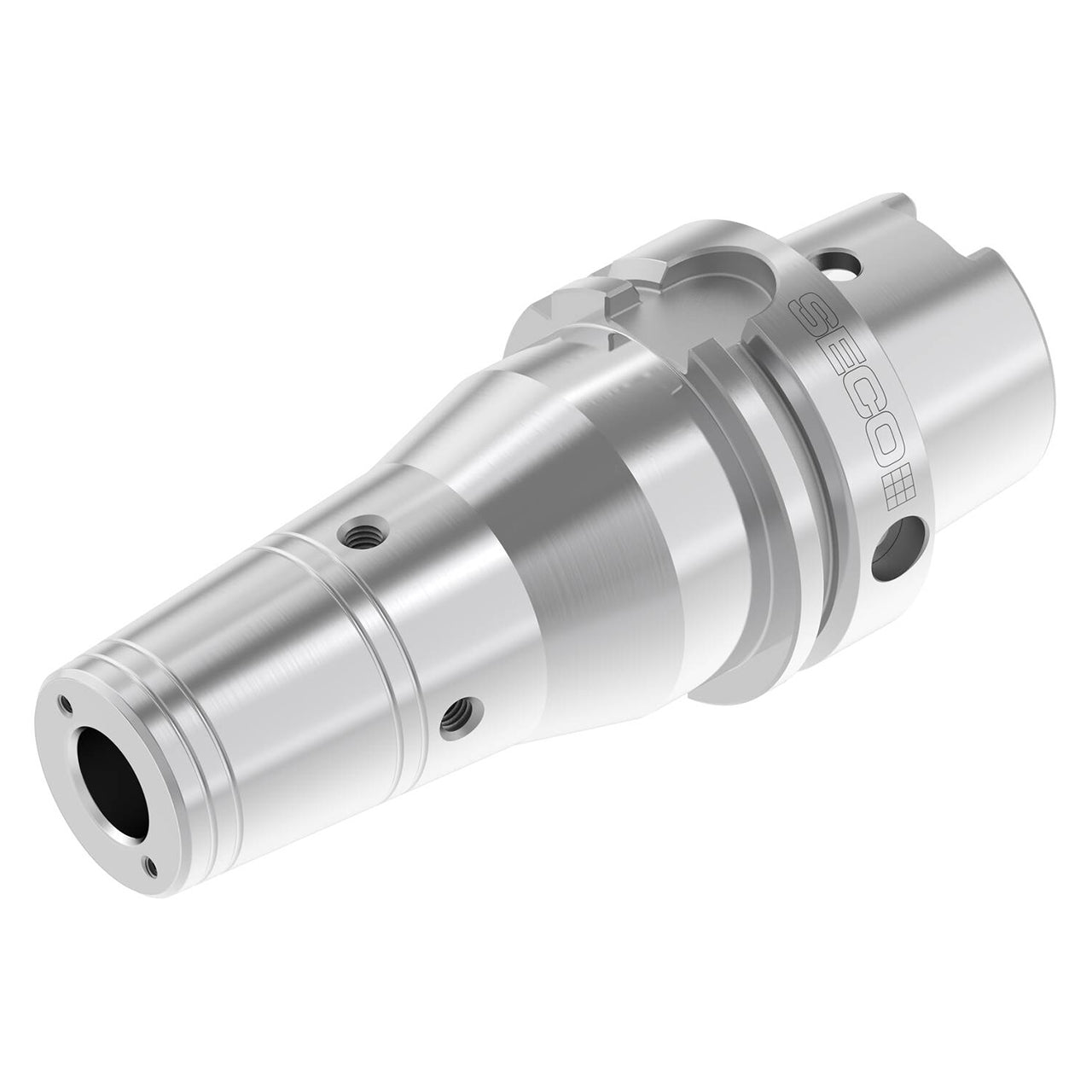

| Product Type | Shrink-Fit Tool Holder |
