Product Specifications
| Manufacturer Part Number | 02842030 |
| Cutting Diameter (Decimal Inch) | 2.429" |
| Cutting Diameter (mm) | 61.70mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.441" |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.996" |
| Maximum Cutting Diameter (mm) | 76.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 5.913" |
| Maximum Helical Interpolation Hole Diameter (mm) | 150.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 5.425" |
| Minimum Helical Interpolation Hole Diameter (mm) | 137.80mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.071" |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Programming Radius (Decimal Inch) | 0.131" |
| Programming Radius (mm) | 3.32mm |
| Uncut Thickness (Decimal Inch) | 0.0343 |
| Uncut Thickness (mm) | 0.87 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Coarse |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Orthogonal Angle (Degree) | -13 Degree |
| Axial Rake Angle (Degree) | -6.5 Degree |
| Tool Cutting Edge Angle (Degree) | 21.3 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 21 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 21 Degree |
| Maximum Ramping Angle (Degree) | 0.5 Degree |
| Maximum Rotational Speed (rpm) | 9800 rpm |
| Insert Shape Code | 218.21 |
| Shank Type | Arbor |

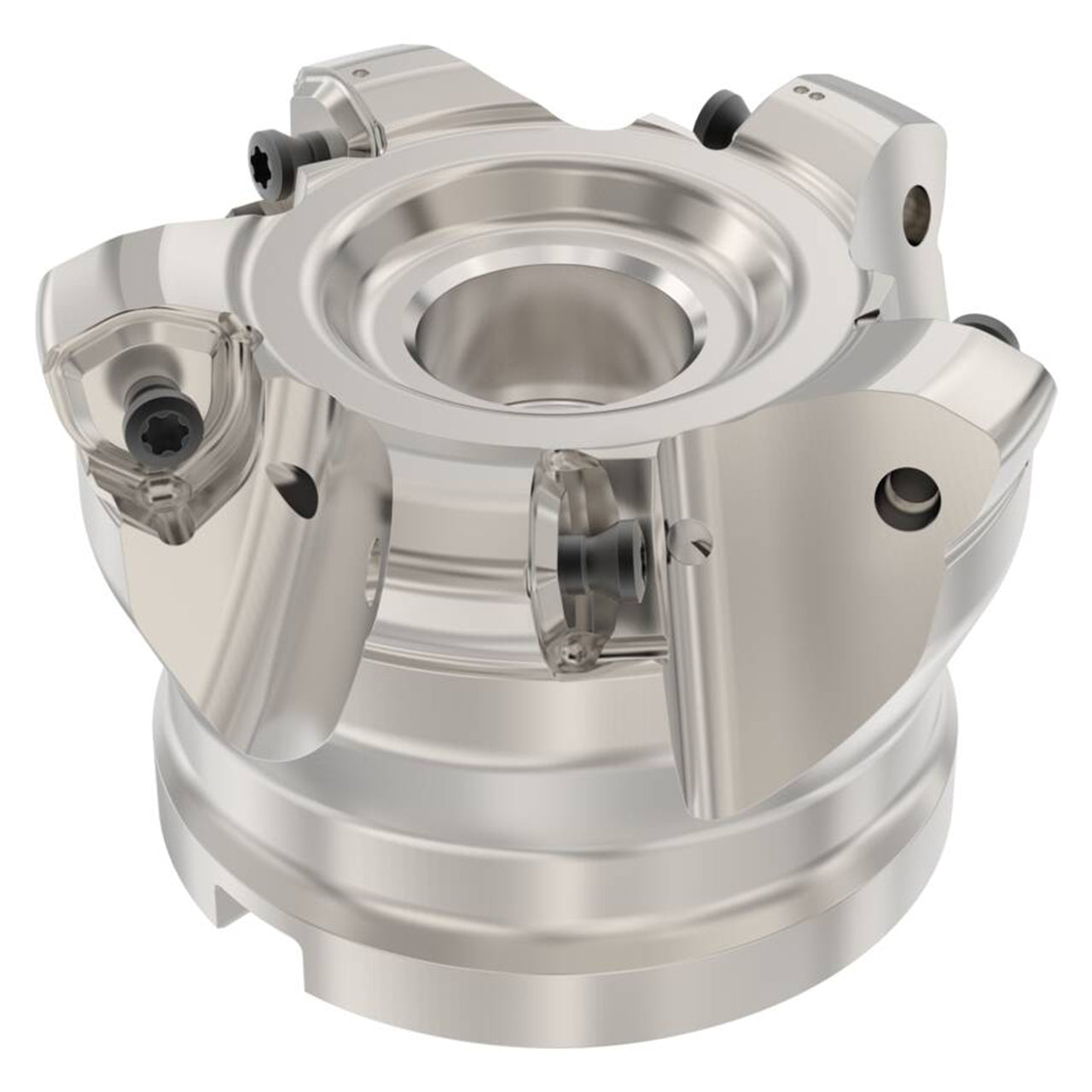

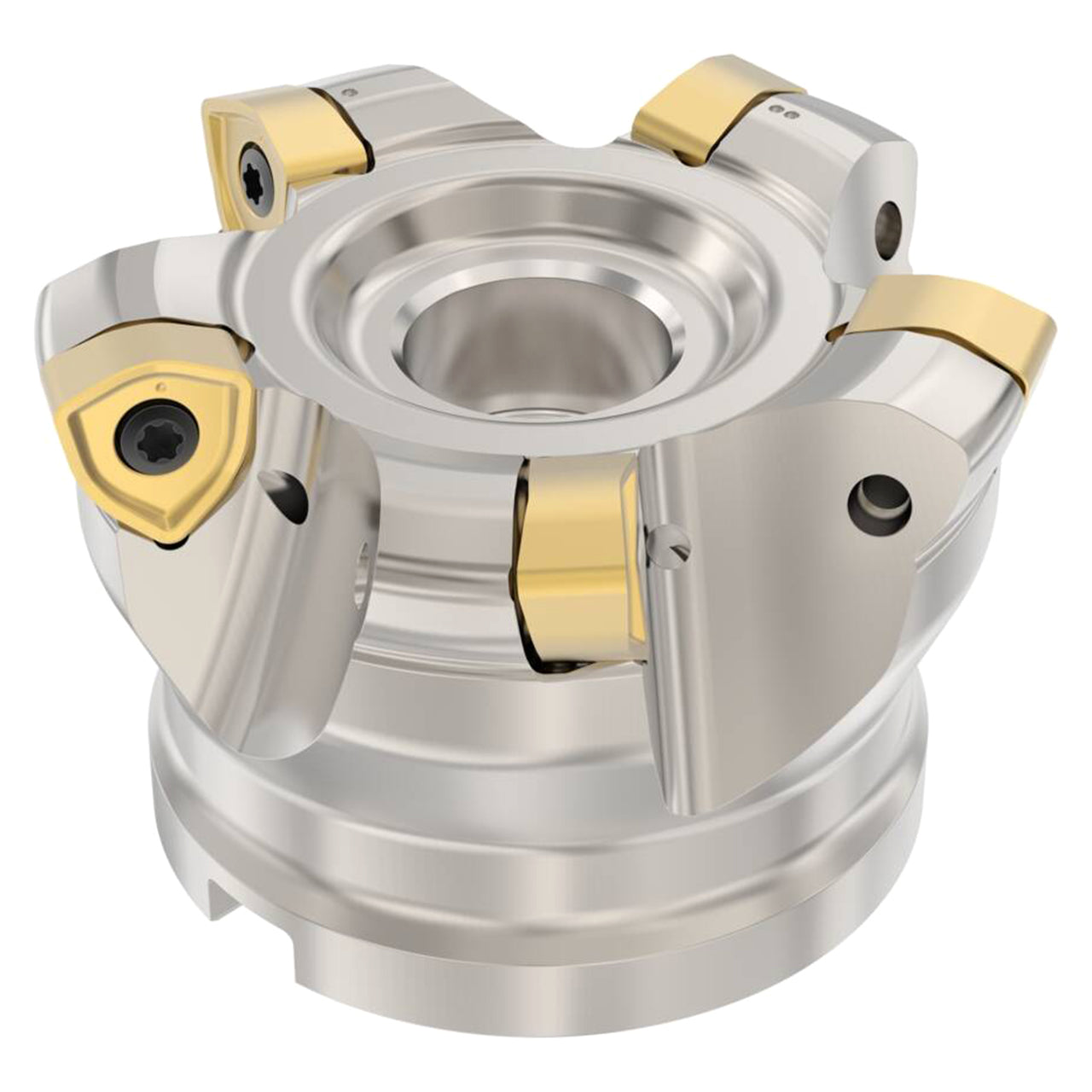

| Product Type | Indexable High-Feed End Mill |
