Product Specifications
| Manufacturer Part Number | 02842021 |
| Cutting Diameter (Decimal Inch) | 0.984" |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.250" |
| Maximum Cutting Diameter (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.421" |
| Maximum Helical Interpolation Hole Diameter (mm) | 61.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.234" |
| Minimum Helical Interpolation Hole Diameter (mm) | 56.75mm |
| Protruding Length (Decimal Inch) | 5.512" |
| Protruding Length (mm) | 140.00mm |
| Shank Length (Decimal Inch) | 6.500" |
| Shank Length (mm) | 165.10mm |
| Overall Length (Decimal Inch) | 8.000" |
| Overall Length (mm) | 203.20mm |
| Maximum Depth of Cut (mm) | 0.90mm |
| Maximum Depth of Cut (Decimal Inch) | 0.035" |
| Programming Radius (Decimal Inch) | 0.071" |
| Programming Radius (mm) | 1.80mm |
| Uncut Thickness (Decimal Inch) | 0.015 |
| Uncut Thickness (mm) | 0.38 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -10.5 Degree |
| Rake Radial Angle (Degree) | -10.5 Degree |
| Rake Orthogonal Angle (Degree) | -10.5 Degree |
| Axial Rake Angle (Degree) | -7 Degree |
| Maximum Ramping Angle (Degree) | 0.5 Degree |
| Maximum Rotational Speed (rpm) | 18600 rpm |
| Insert Shape Code | L |
| Shank Type | Cylindrical |

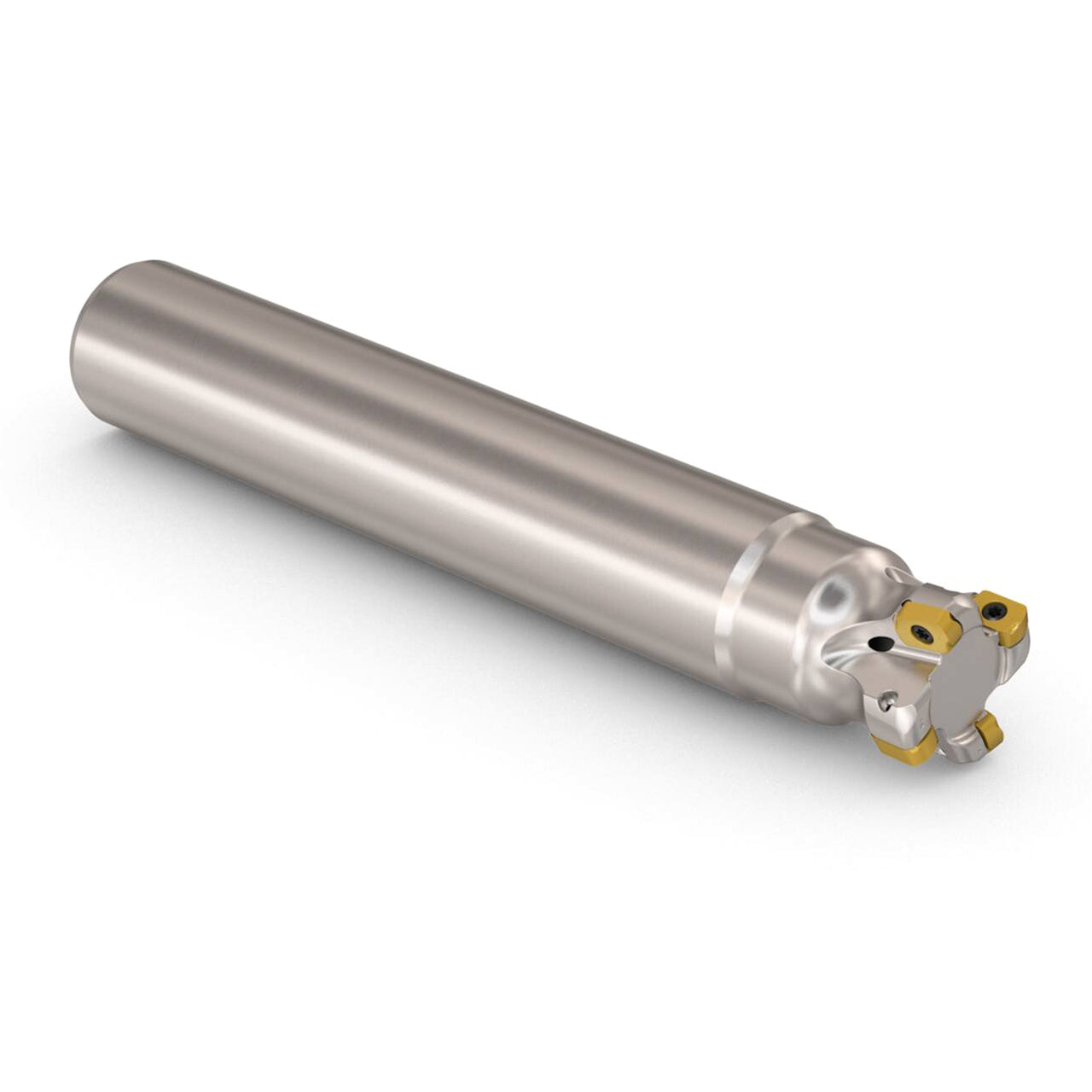

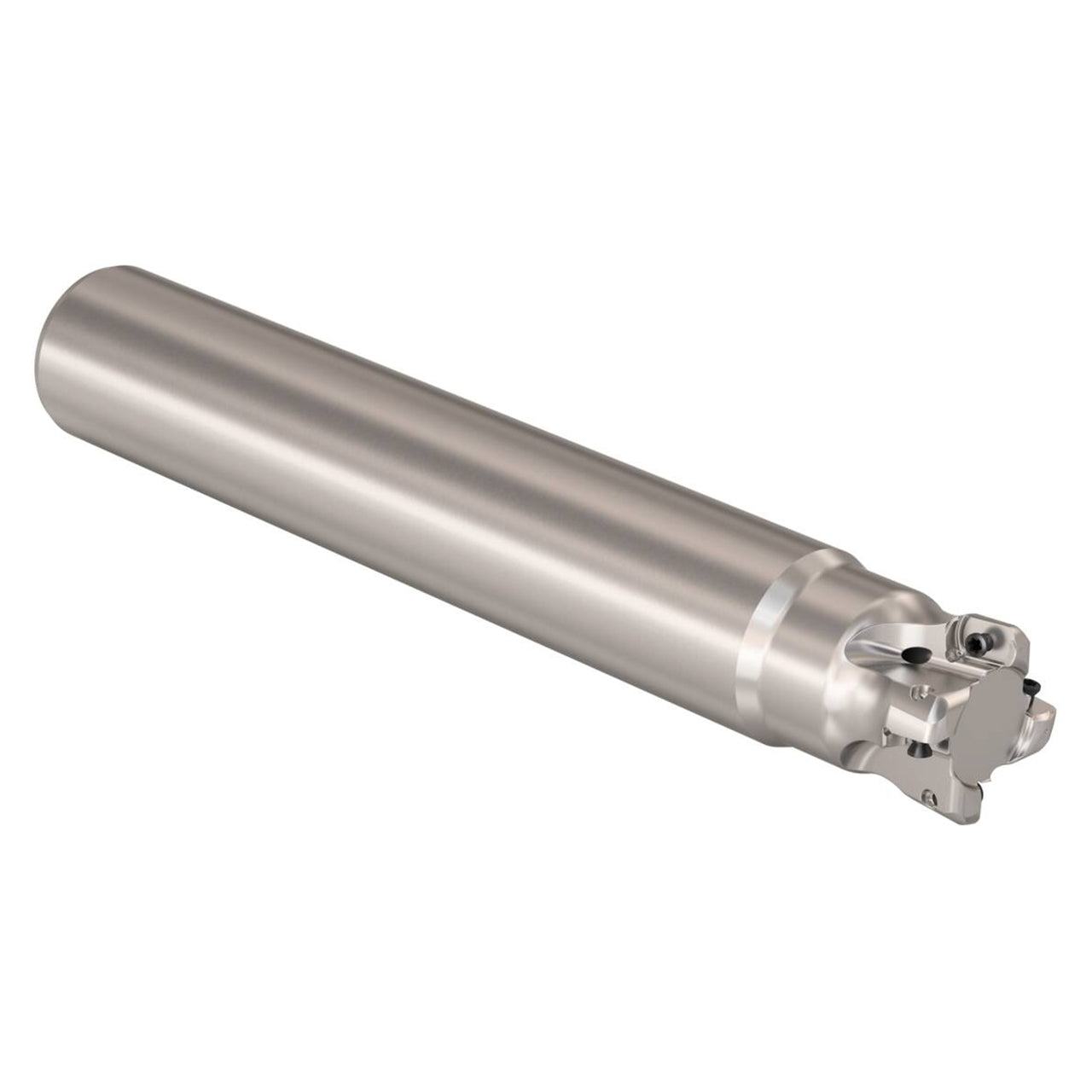

| Product Type | Indexable High-Feed End Mill |
