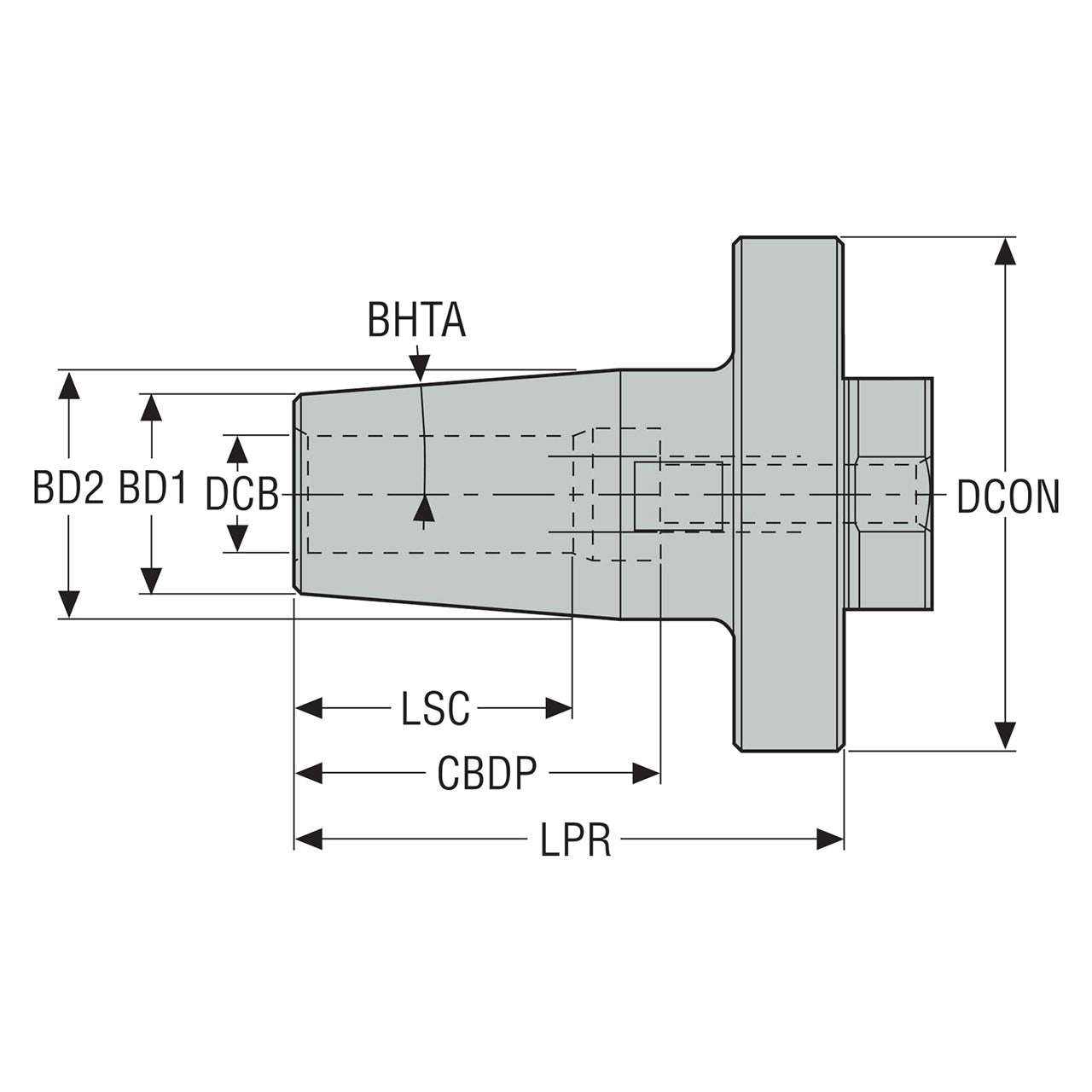

Product Specifications
| Manufacturer Part Number | 02836737 |
| Body Diameter 1 (Decimal Inch) | 0.945" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Decimal Inch) | 1.260" |
| Body Diameter 2 (mm) | 32.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.472" |
| Connection Bore Diameter (mm) | 12.00mm |
| Connection Diameter (Decimal Inch) | 2.362" |
| Connection Diameter (mm) | 60.00mm |
| Protruding Length (Decimal Inch) | 2.756" |
| Protruding Length (mm) | 70.00mm |
| Clamping Length (Decimal Inch) | 1.339" |
| Clamping Length (mm) | 34.00mm |
| Connection Bore Depth (mm) | 47.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Product Type | End Mill Holder |
