Product Specifications
| Manufacturer Part Number | 02830352 |
| Maximum Work Piece Parting Diameter (mm) | 34.00mm |
| Functional Length (mm) | 110.00mm |
| Head Length (mm) | 44.00mm |
| Shank Width (mm) | 7.85mm |
| Maximum Cutting Depth (mm) | 18.50mm |
| Cutting Width (mm) | 2.00mm |
| Height of Tool Holder Shank (mm) | 25.50mm |
| Functional Height (mm) | 20.90mm |
| Functional Width (mm) | 8.00mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Blade |

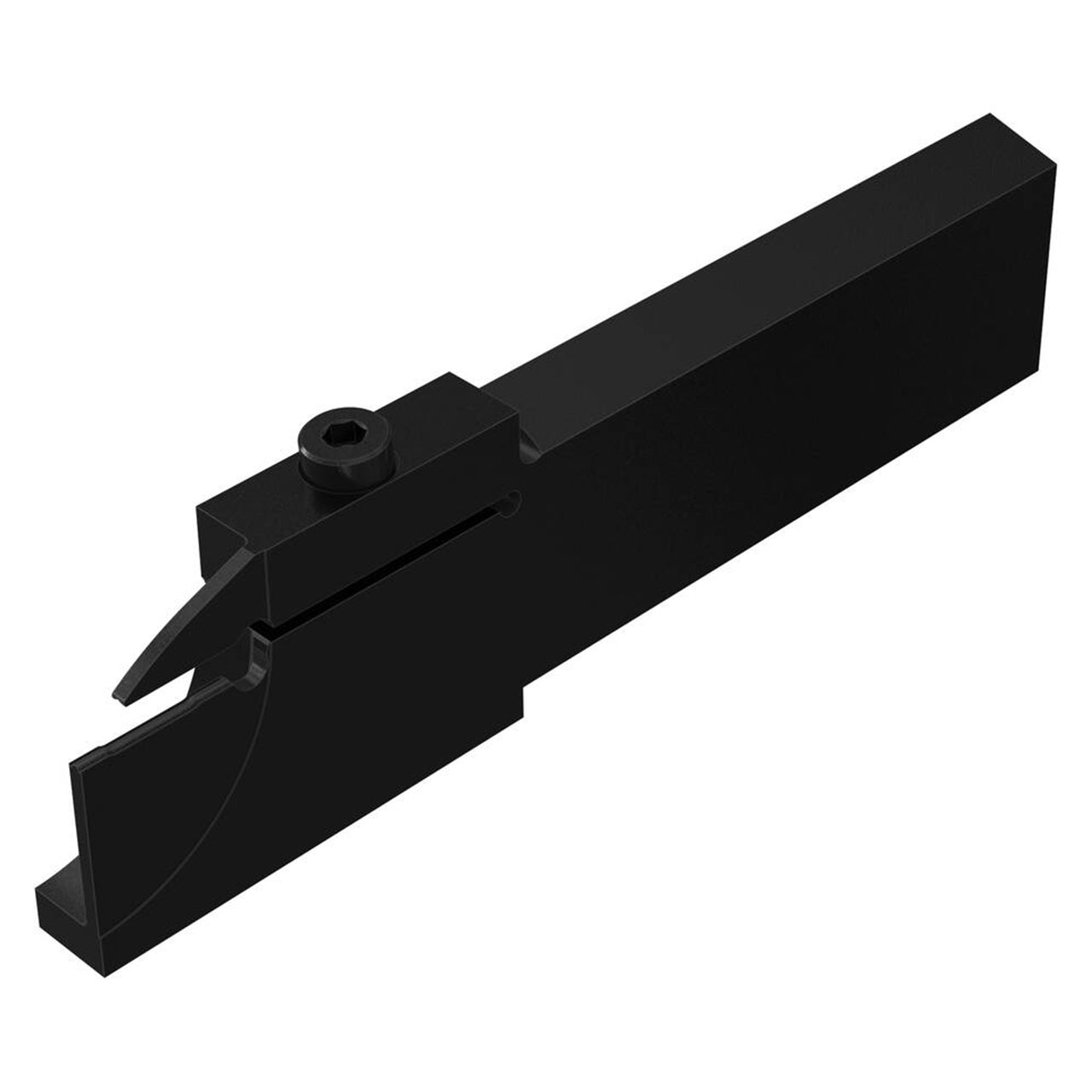

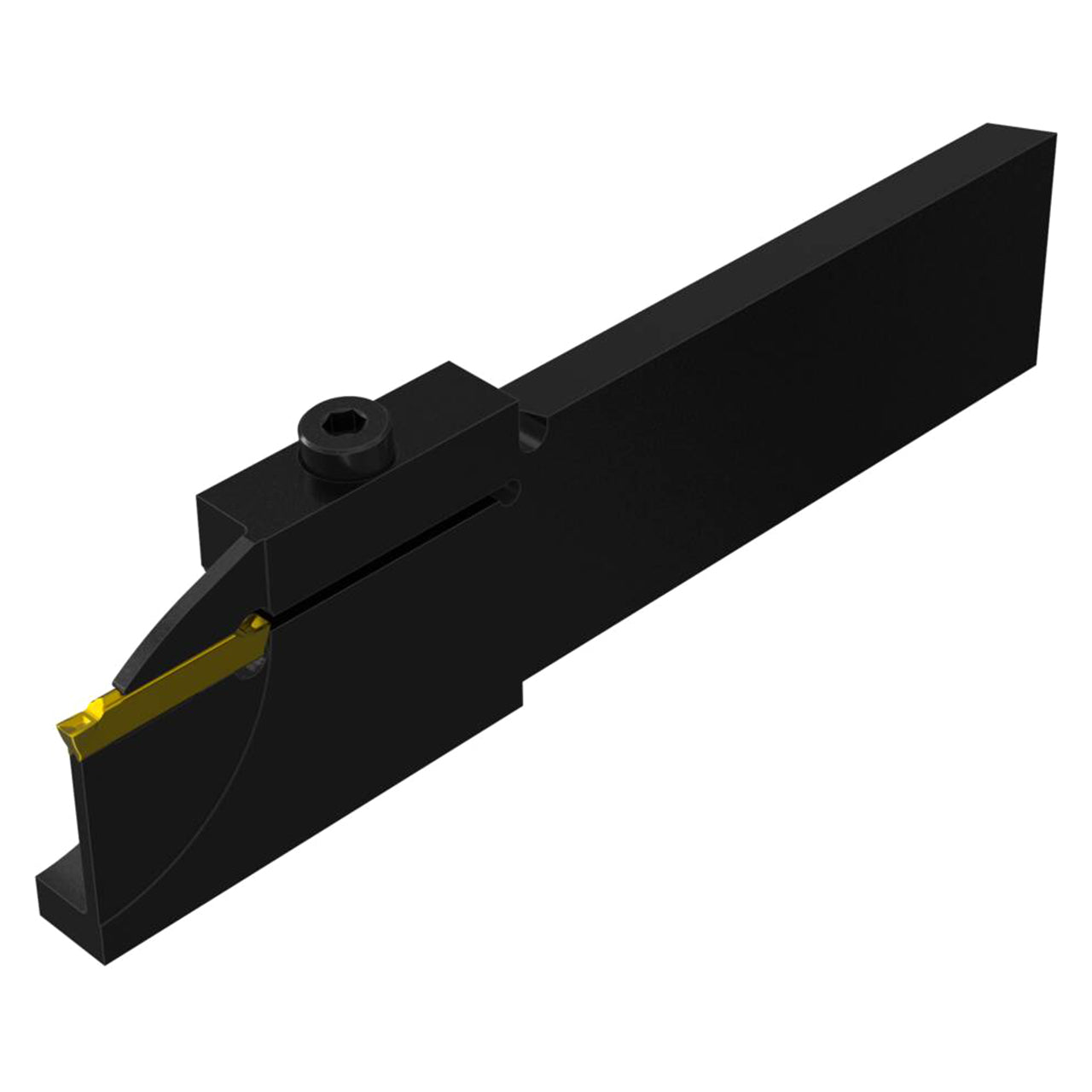

| Product Type | Indexable Grooving Toolholder |
