Product Specifications
| Manufacturer Part Number | 02829692 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.125" |
| Minimum Cutting Diameter Internal (mm) | 28.58mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 10.000" |
| Functional Length (mm) | 254.00mm |
| Head Length (Decimal Inch) | 1.750" |
| Head Length (mm) | 44.45mm |
| Shank Width (Decimal Inch) | 0.707" |
| Shank Width (mm) | 17.96mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.319" |
| Maximum Radial Cutting Depth (mm) | 8.10mm |
| Maximum Cutting Depth (Decimal Inch) | 0.075" |
| Maximum Cutting Depth (mm) | 1.90mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.650" |
| Height of Tool Holder Shank (mm) | 16.50mm |
| Functional Width (Decimal Inch) | 0.625" |
| Functional Width (mm) | 15.88mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | U |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 122 Degree |
| Inclination Angle (Degree) | -57 Degree |
| Insert Shape Code | D |
| Shank Type | Cylindrical |

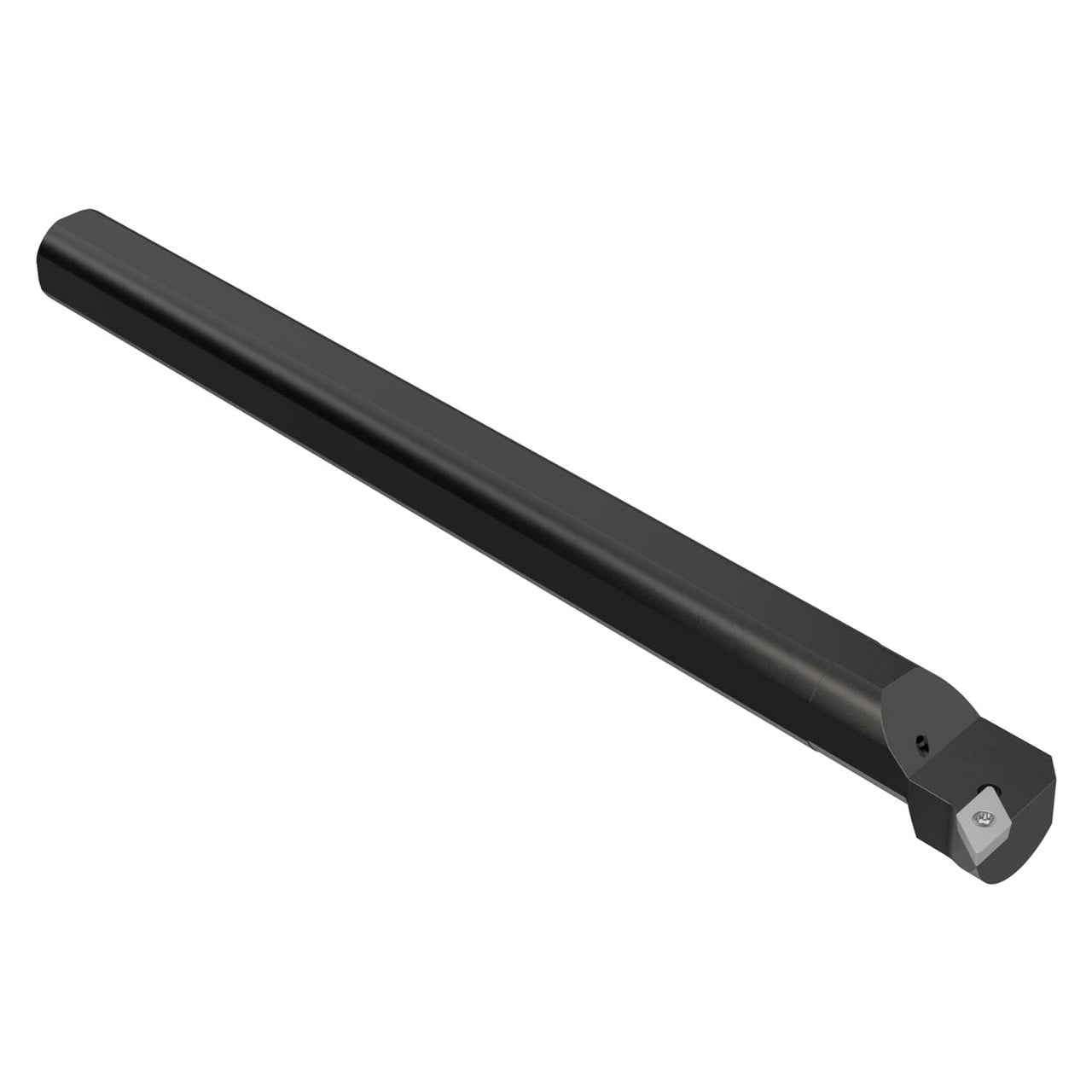

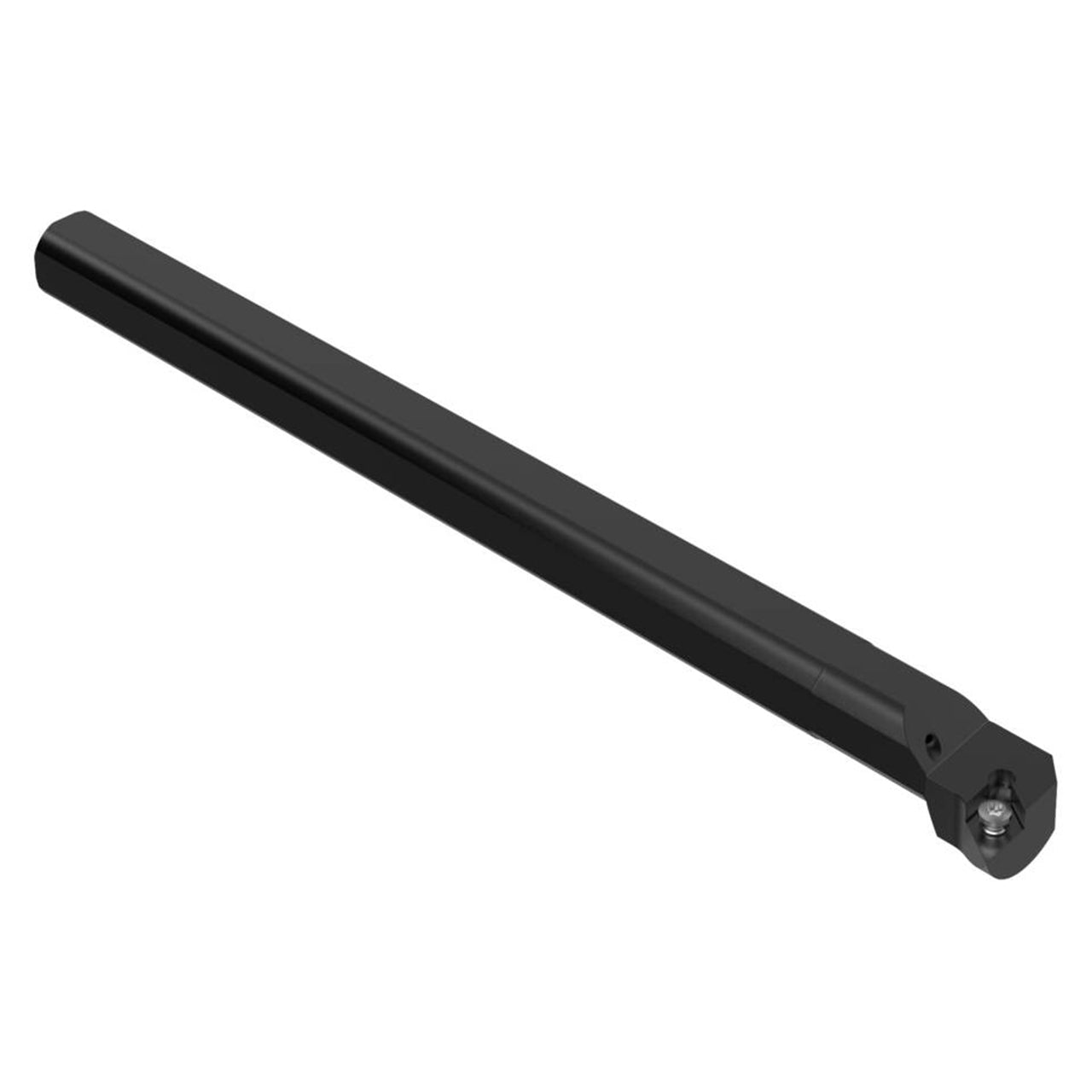

| Product Type | Indexable Boring Bar |
