Product Specifications
| Manufacturer Part Number | 02829668 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.512" |
| Minimum Cutting Diameter Internal (mm) | 13.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.400" |
| Head Length (mm) | 35.56mm |
| Shank Length (Decimal Inch) | 5.984" |
| Shank Length (mm) | 152.00mm |
| Shank Width (Decimal Inch) | 0.345" |
| Shank Width (mm) | 8.77mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.315" |
| Height of Tool Holder Shank (mm) | 8.00mm |
| Functional Width (Decimal Inch) | 0.250" |
| Functional Width (mm) | 6.35mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 118.62 Degree |
| Inclination Angle (Degree) | -107 Degree |
| Insert Shape Code | T |
| Shank Type | Cylindrical |

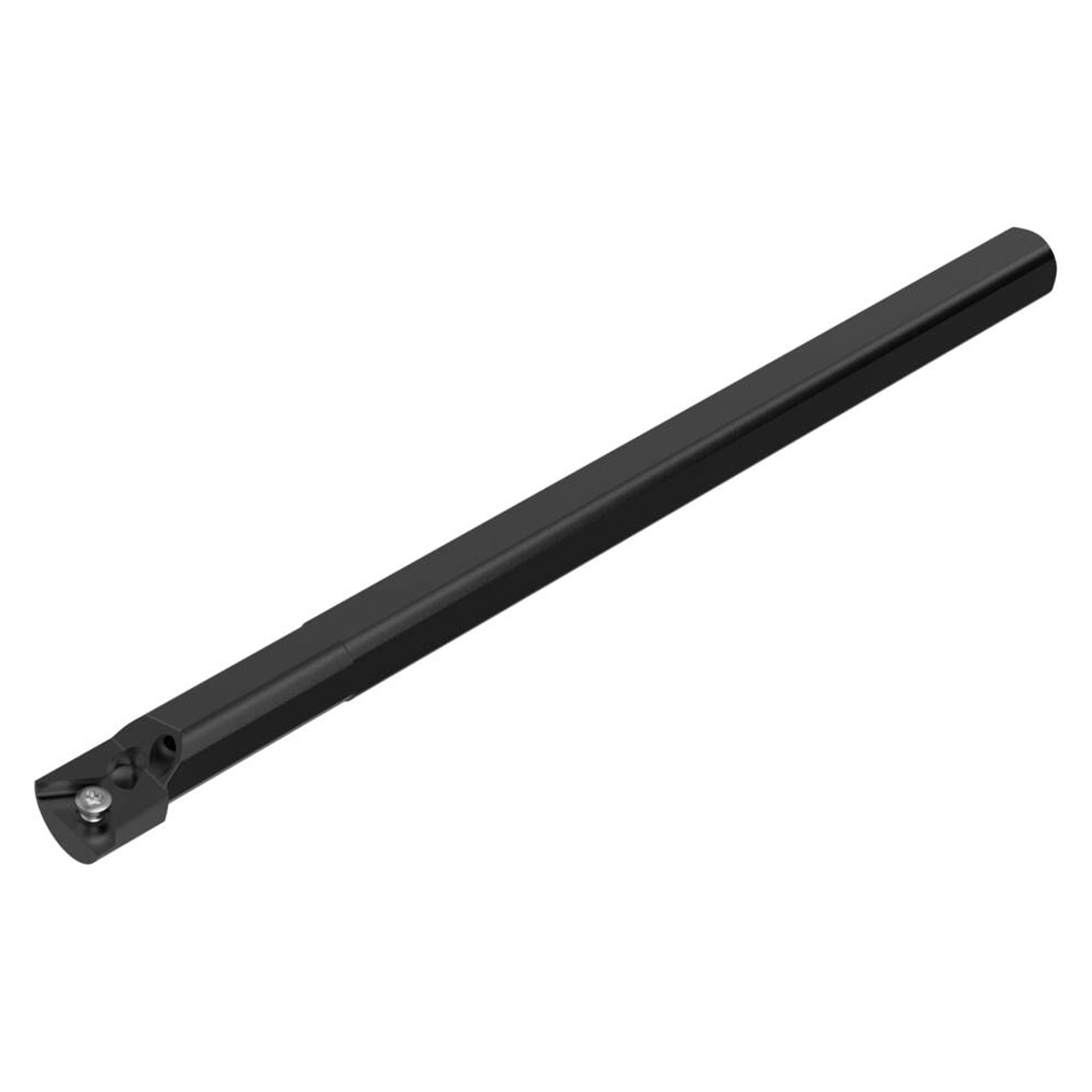

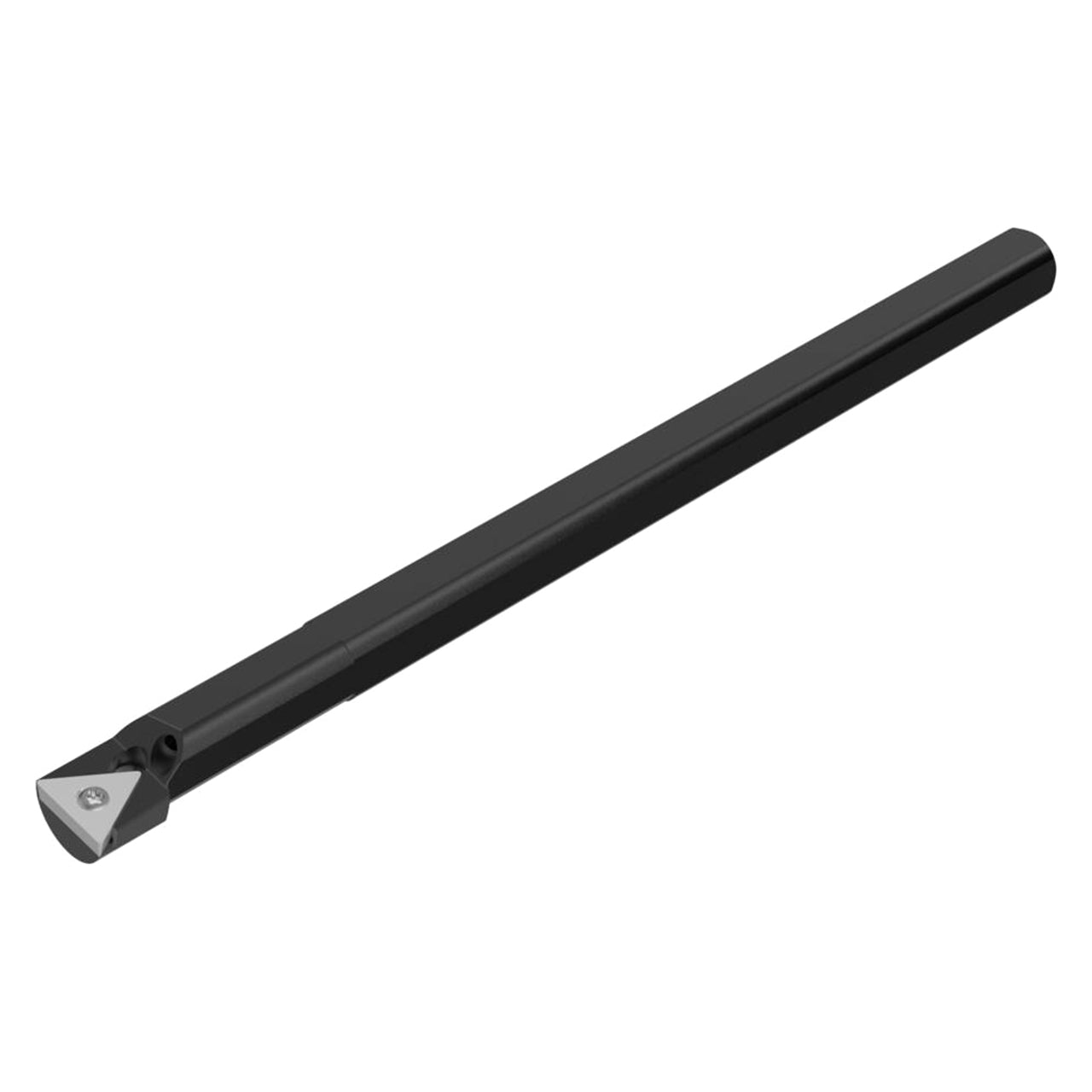

| Product Type | Indexable Boring Bar |
