Product Specifications
| Manufacturer Part Number | 02829665 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.508" |
| Minimum Cutting Diameter Internal (mm) | 12.90mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 0.402" |
| Head Length (mm) | 10.20mm |
| Shank Width (Decimal Inch) | 0.945" |
| Shank Width (mm) | 24.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.055" |
| Maximum Radial Cutting Depth (mm) | 1.39mm |
| Maximum Cutting Depth (Decimal Inch) | 0.014" |
| Maximum Cutting Depth (mm) | 0.35mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.906" |
| Height of Tool Holder Shank (mm) | 23.00mm |
| Functional Width (Decimal Inch) | 0.252" |
| Functional Width (mm) | 6.40mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 98.82 Degree |
| Inclination Angle (Degree) | -11 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

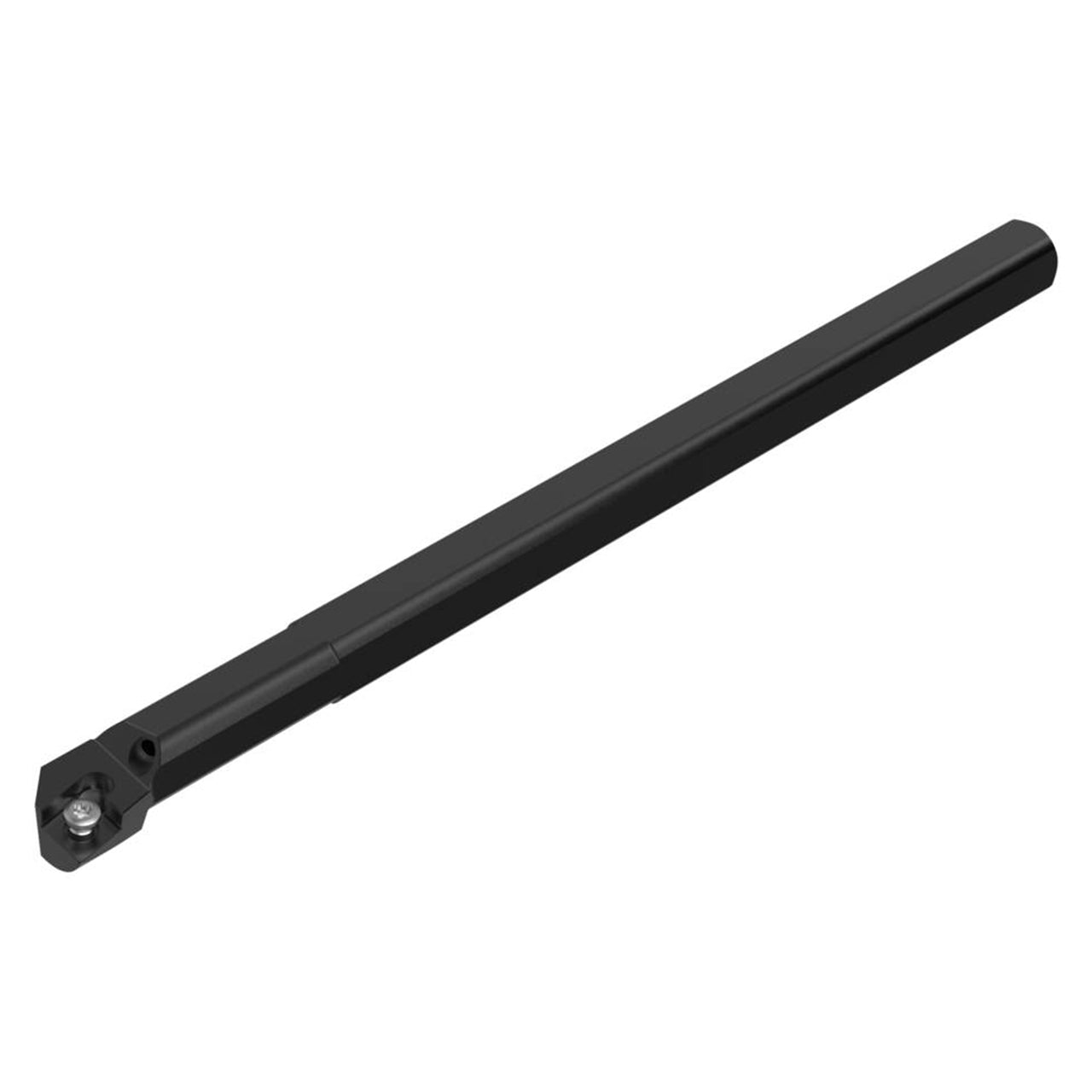

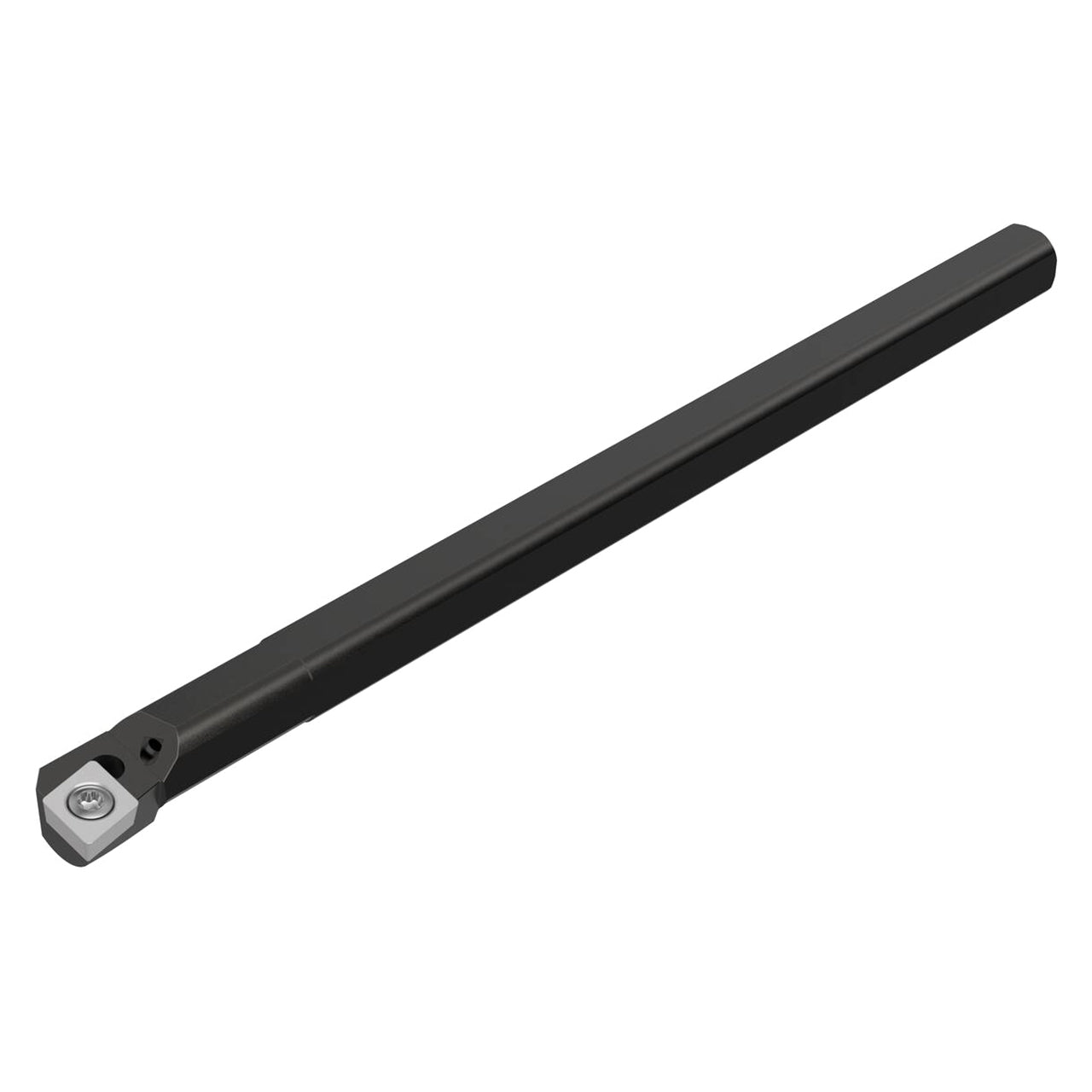

| Product Type | Indexable Boring Bar |
