Product Specifications
| Manufacturer Part Number | 02828767 |
| Maximum Work Piece Parting Diameter (Decimal Inch) | 1.000" |
| Maximum Work Piece Parting Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 4.921" |
| Functional Length (mm) | 125.00mm |
| Head Length (Decimal Inch) | 1.063" |
| Head Length (mm) | 27.00mm |
| Functional Height (Decimal Inch) | 0.503" |
| Functional Height (mm) | 12.78mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.500" |
| Height of Tool Holder Shank (mm) | 12.70mm |
| Shank Width (Decimal Inch) | 0.500" |
| Shank Width (mm) | 12.70mm |
| Cutting Width (Decimal Inch) | 0.079" |
| Cutting Width (mm) | 2.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.492" |
| Maximum Cutting Depth (mm) | 12.50mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Square shank |

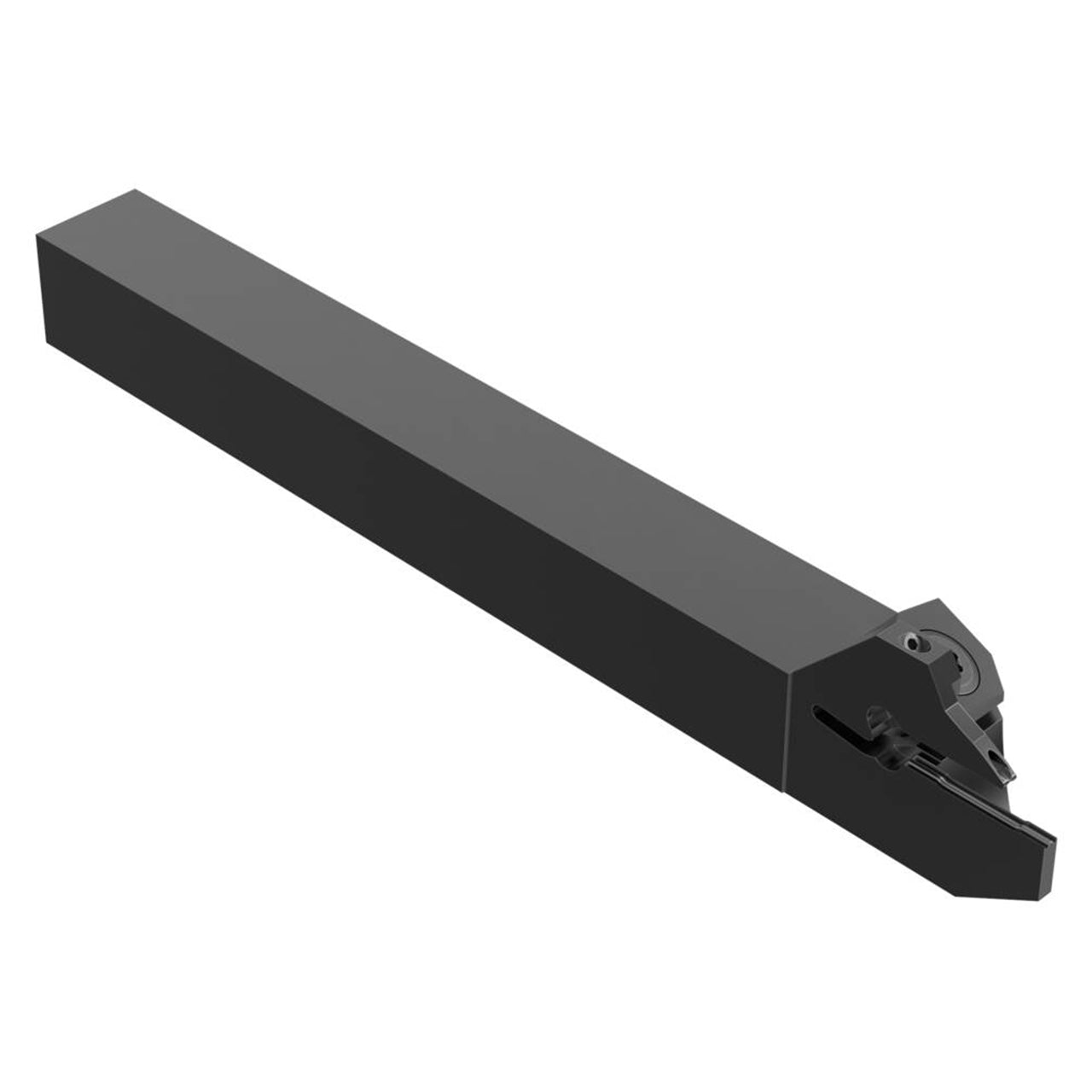

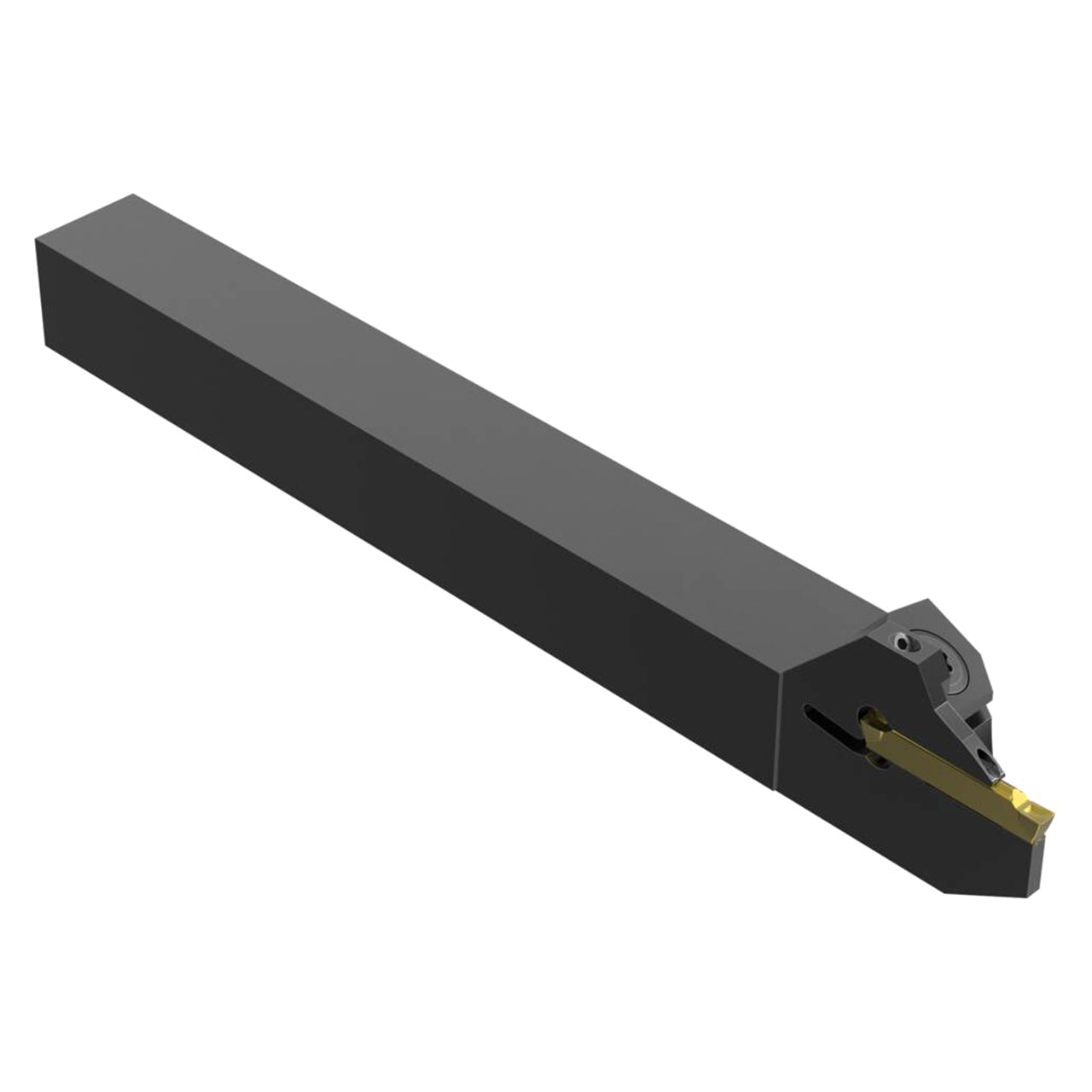

| Product Type | Indexable Grooving Toolholder |
