Product Specifications
| Manufacturer Part Number | 02828470 |
| Cutting Diameter (mm) | 20.30mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Maximum Cutting Diameter (mm) | 27.00mm |
| Shank Diameter (mm) | 25.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 52.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 47.30mm |
| Protruding Length (mm) | 140.00mm |
| Shank Length (mm) | 175.00mm |
| Overall Length (mm) | 200.00mm |
| Maximum Depth of Cut (mm) | 0.90mm |
| Programming Radius (mm) | 1.80mm |
| Uncut Thickness (mm) | 0.38 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -12 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Rake Orthogonal Angle (Degree) | -12 Degree |
| Axial Rake Angle (Degree) | -7 Degree |
| Maximum Ramping Angle (Degree) | 0.7 Degree |
| Maximum Rotational Speed (rpm) | 20100 rpm |
| Insert Shape Code | L |
| Shank Type | Cylindrical |

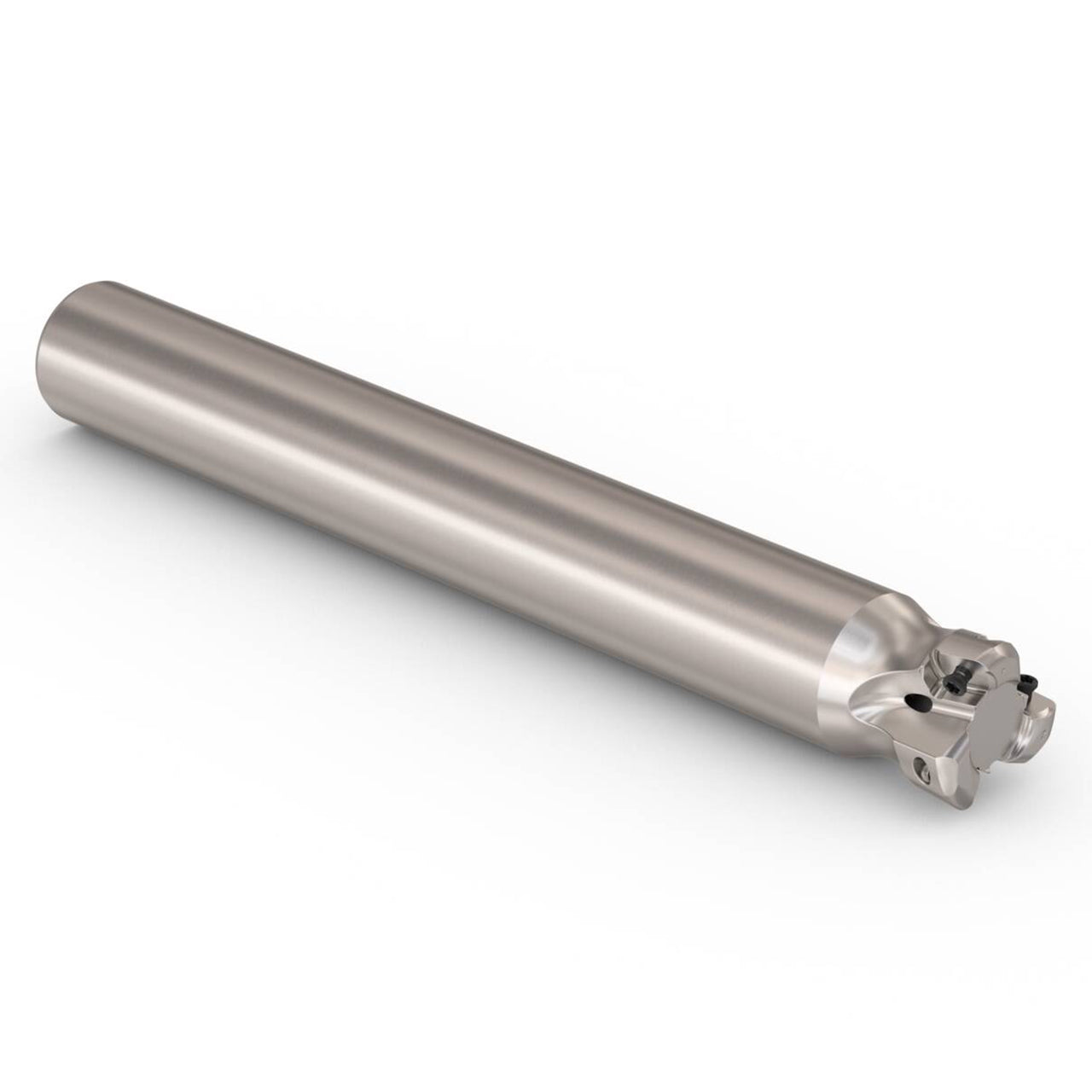

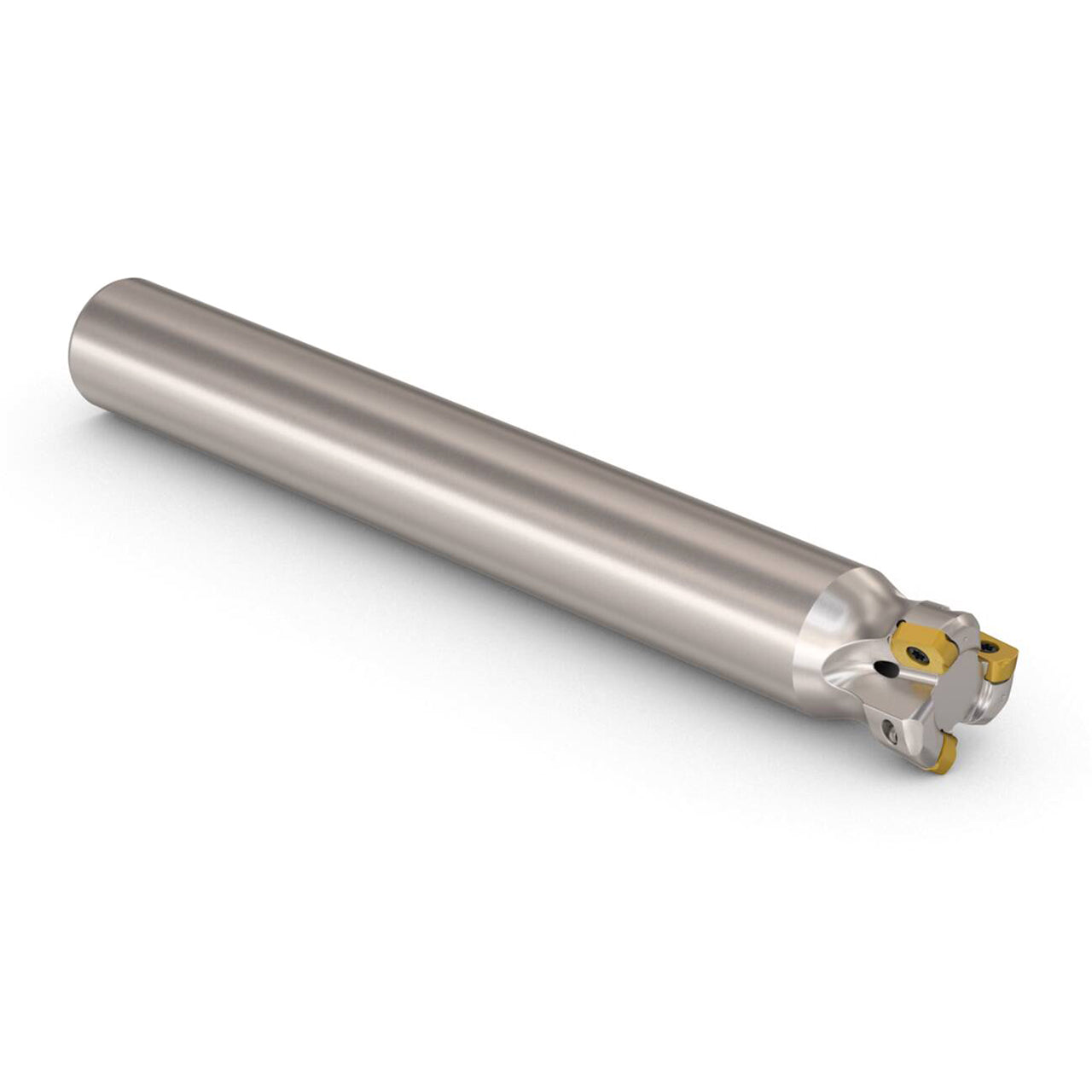

| Product Type | Indexable High-Feed End Mill |
