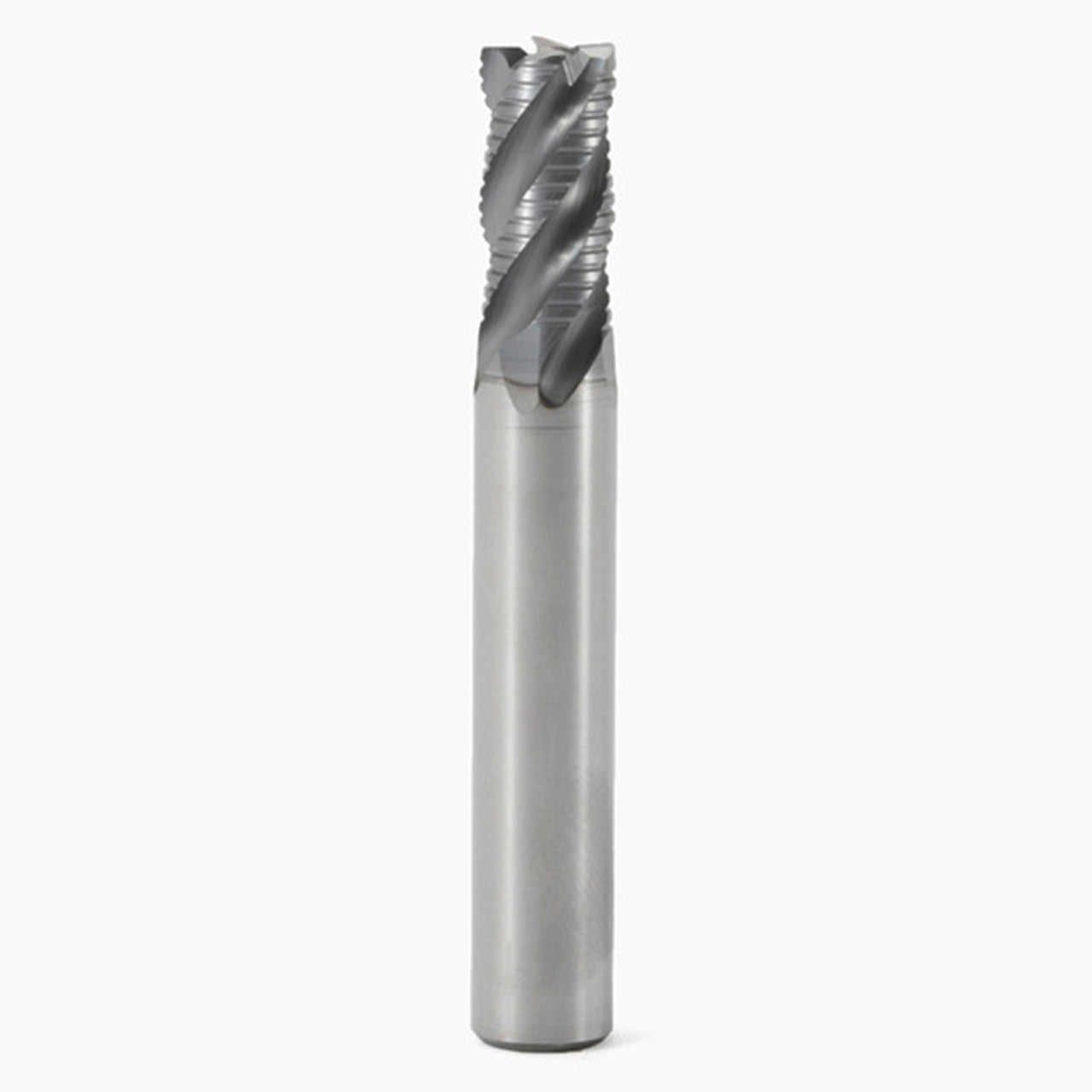

Product Specifications
| Manufacturer Part Number | 02828152 |
| Cutting Diameter (mm) | 5.00mm |
| Cutting Diameter 1 (mm) | 5.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 5.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 6.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 9.69mm |
| Cutting Edge Effective Length (mm) | 12.00mm |
| Neck Length (mm) | 14.75mm |
| Neck Length 1 (mm) | 14.75mm |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 12.00mm |
| Overall Length (mm) | 55.00mm |
| Corner Chamfer Width (mm) | 0.15mm |
| Corner Chamfer Width Lower Tolerance (mm) | 0.05 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (mm) | 12.00mm |
| Axial Runout (mm) | 0.02mm |
| Radial Runout (mm) | 0.02mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Flute Helix Angle (Degree) | 38 Degree |
| Rake Radial Angle (Degree) | 7 Degree |
| Maximum Ramping Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JHP993 |
| Cutting Geometry Type Technical | JHP993 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Weldon |
| Material | Carbide |
| Coating | SIRON-A |
| Product Type | Corner Chamfer End Mill |
