Product Specifications
| Manufacturer Part Number | 02827277 |
| Body Diameter 1 (Decimal Inch) | 1.575" |
| Body Diameter 1 (mm) | 40.00mm |
| Body Diameter 2 (Decimal Inch) | 1.575" |
| Body Diameter 2 (mm) | 40.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.039" |
| Minimum Connection Bore Diameter (mm) | 1.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 2.559" |
| Body Length (mm) | 65.00mm |
| Body Length 1 (Decimal Inch) | 2.441" |
| Body Length 1 (mm) | 62.00mm |
| Functional Length (Decimal Inch) | 1.850" |
| Functional Length (mm) | 47.00mm |
| Minimum Functional Length (Decimal Inch) | 1.142" |
| Protruding Length (Decimal Inch) | 3.347" |
| Protruding Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 4.528" |
| Overall Length (mm) | 115.00mm |
| Data Chip Provision | 1 |

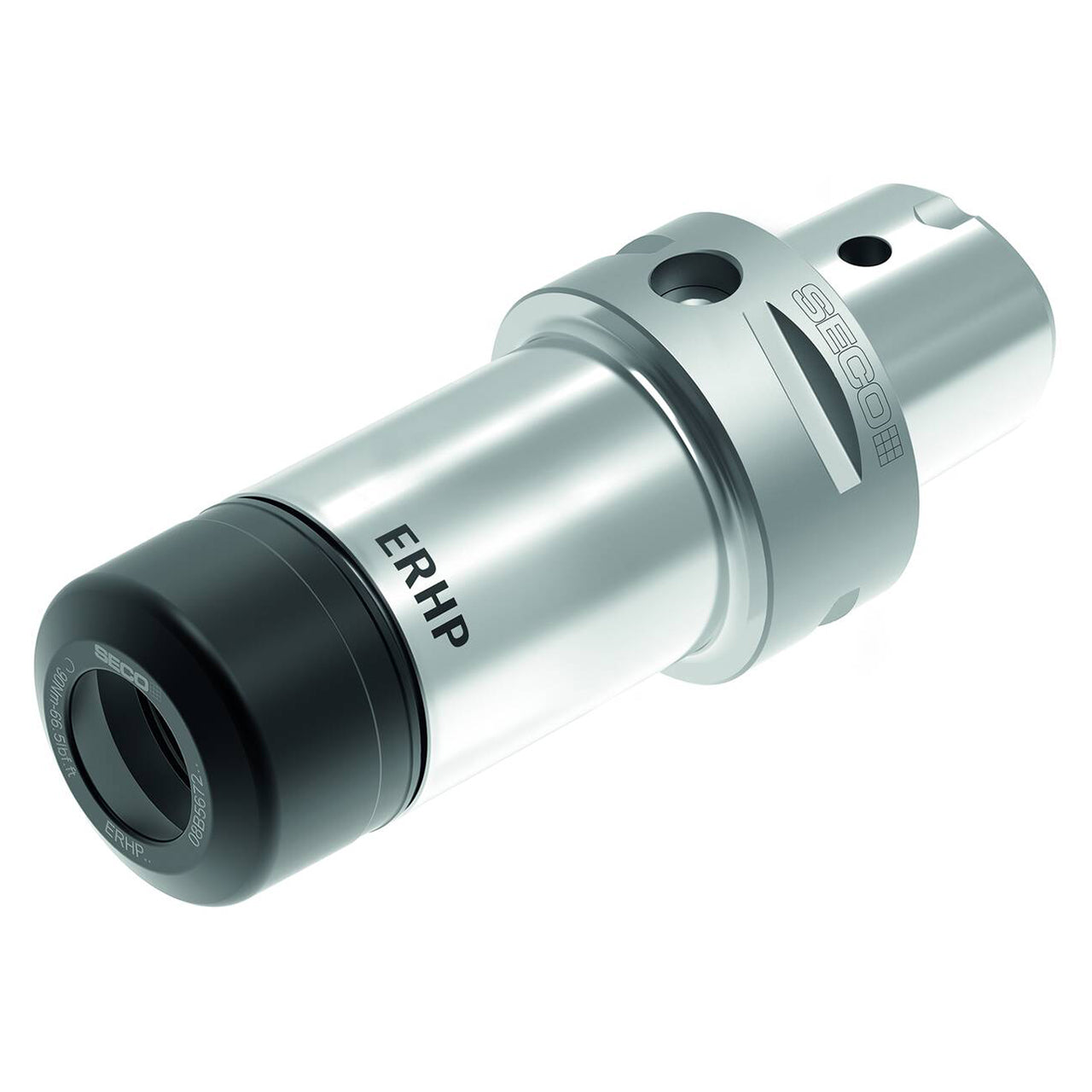

| Product Type | Collet Chuck |
