Product Specifications
| Manufacturer Part Number | 02826561 |
| Cutting Diameter (mm) | 145.20mm |
| Diameter Bolt Circle 1 (mm) | 66.70mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Maximum Cutting Diameter (mm) | 160.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 318.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 305.20mm |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Depth of Key Way (mm) | 9.00mm |
| Keyway Width (mm) | 16.40mm |
| Programming Radius (mm) | 3.32mm |
| Uncut Thickness (mm) | 0.89 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -9 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Rake Orthogonal Angle (Degree) | -9 Degree |
| Axial Rake Angle (Degree) | -6.5 Degree |
| Tool Cutting Edge Angle (Degree) | 21.3 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 21 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 21 Degree |
| Maximum Ramping Angle (Degree) | 0.1 Degree |
| Maximum Rotational Speed (rpm) | 6800 rpm |
| Insert Shape Code | 218.21 |
| Shank Type | Arbor |

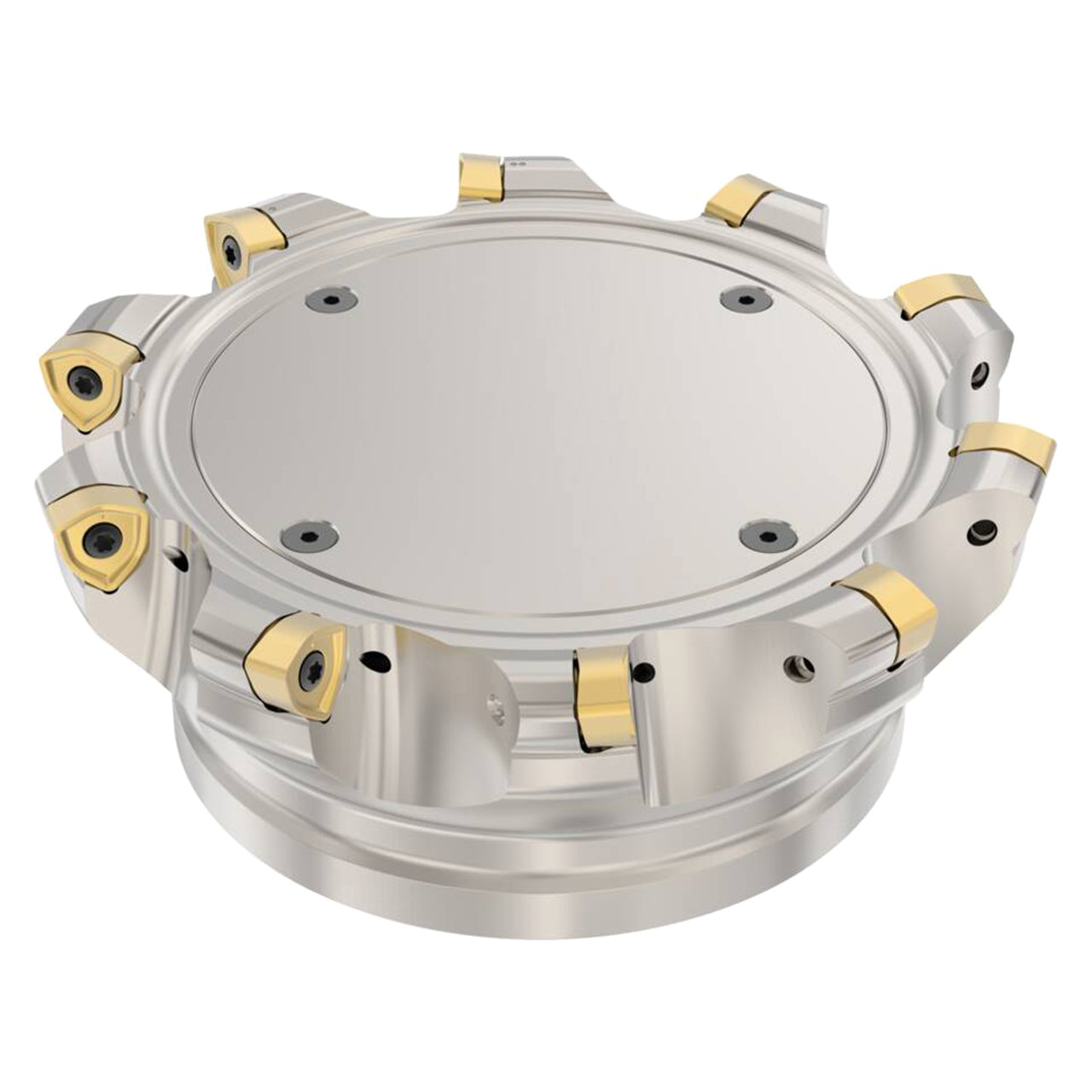

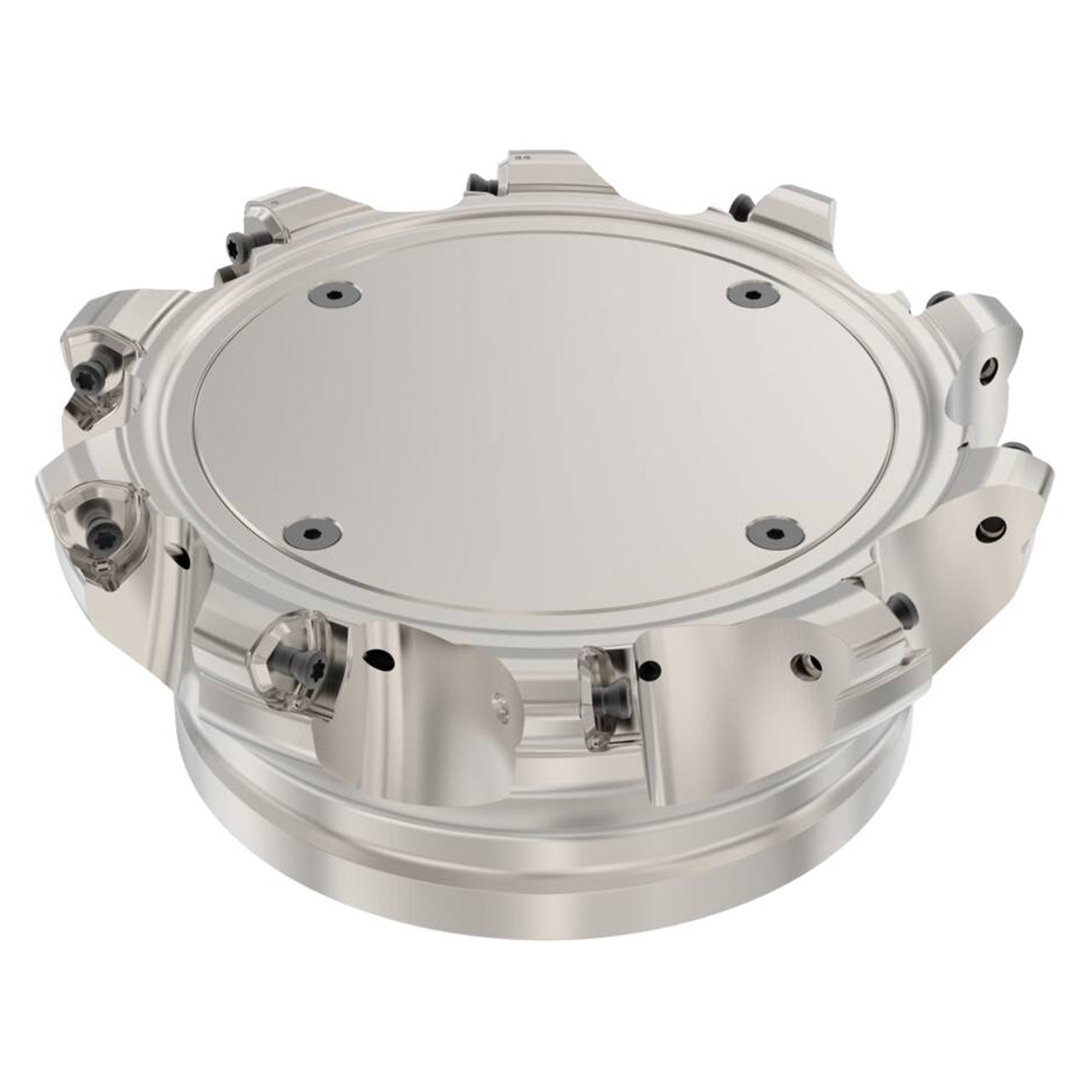

| Product Type | Indexable High-Feed End Mill |
