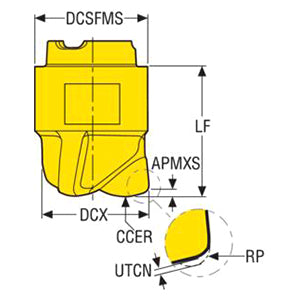

Product Specifications
| Manufacturer Part Number | 02825083 |
| Cutting Diameter (Decimal Inch) | 0.264" |
| Cutting Diameter (mm) | 6.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.454" |
| Contact Surface Diameter Machine Side (mm) | 11.52mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.500" |
| Maximum Cutting Diameter (mm) | 12.70mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.756" |
| Maximum Helical Interpolation Hole Diameter (mm) | 19.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.543" |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.028" |
| Maximum Depth of Cut (mm) | 0.70mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.295" |
| Curved Cutting Edge Radius (mm) | 7.50mm |
| Functional Length (Decimal Inch) | 0.524" |
| Functional Length (mm) | 13.30mm |
| Torque (Nm) | 15Nm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Axial Rake Angle (Degree) | 10 Degree |
| Material | Carbide |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Programming Radius (Decimal Inch) | 0.065" |
| Programming Radius (mm) | 1.66mm |
| Peripheral Effective Cutting Edge Count | 3 |
| Peripheral Edges In The Tool | 3 |
| Product Type | Slotting Milling Tip Insert |
