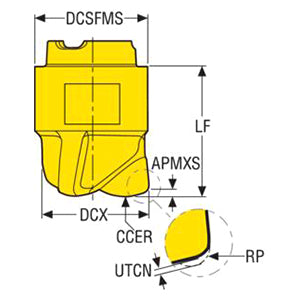

Product Specifications
| Manufacturer Part Number | 02825081 |
| Cutting Diameter (Decimal Inch) | 0.179" |
| Cutting Diameter (mm) | 4.55mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.370" |
| Contact Surface Diameter Machine Side (mm) | 9.40mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.375" |
| Maximum Cutting Diameter (mm) | 9.53mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.528" |
| Maximum Helical Interpolation Hole Diameter (mm) | 13.40mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.409" |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.40mm |
| Maximum Depth of Cut (Decimal Inch) | 0.024" |
| Maximum Depth of Cut (mm) | 0.60mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.244" |
| Curved Cutting Edge Radius (mm) | 6.20mm |
| Functional Length (Decimal Inch) | 0.433" |
| Functional Length (mm) | 11.00mm |
| Torque (Nm) | 11Nm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Axial Rake Angle (Degree) | 10 Degree |
| Material | Carbide |
| Corner Radius (Decimal Inch) | 0.024" |
| Corner Radius (mm) | 0.60mm |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Programming Radius (Decimal Inch) | 0.045" |
| Programming Radius (mm) | 1.13mm |
| Peripheral Effective Cutting Edge Count | 3 |
| Peripheral Edges In The Tool | 3 |
| Product Type | Slotting Milling Tip Insert |
