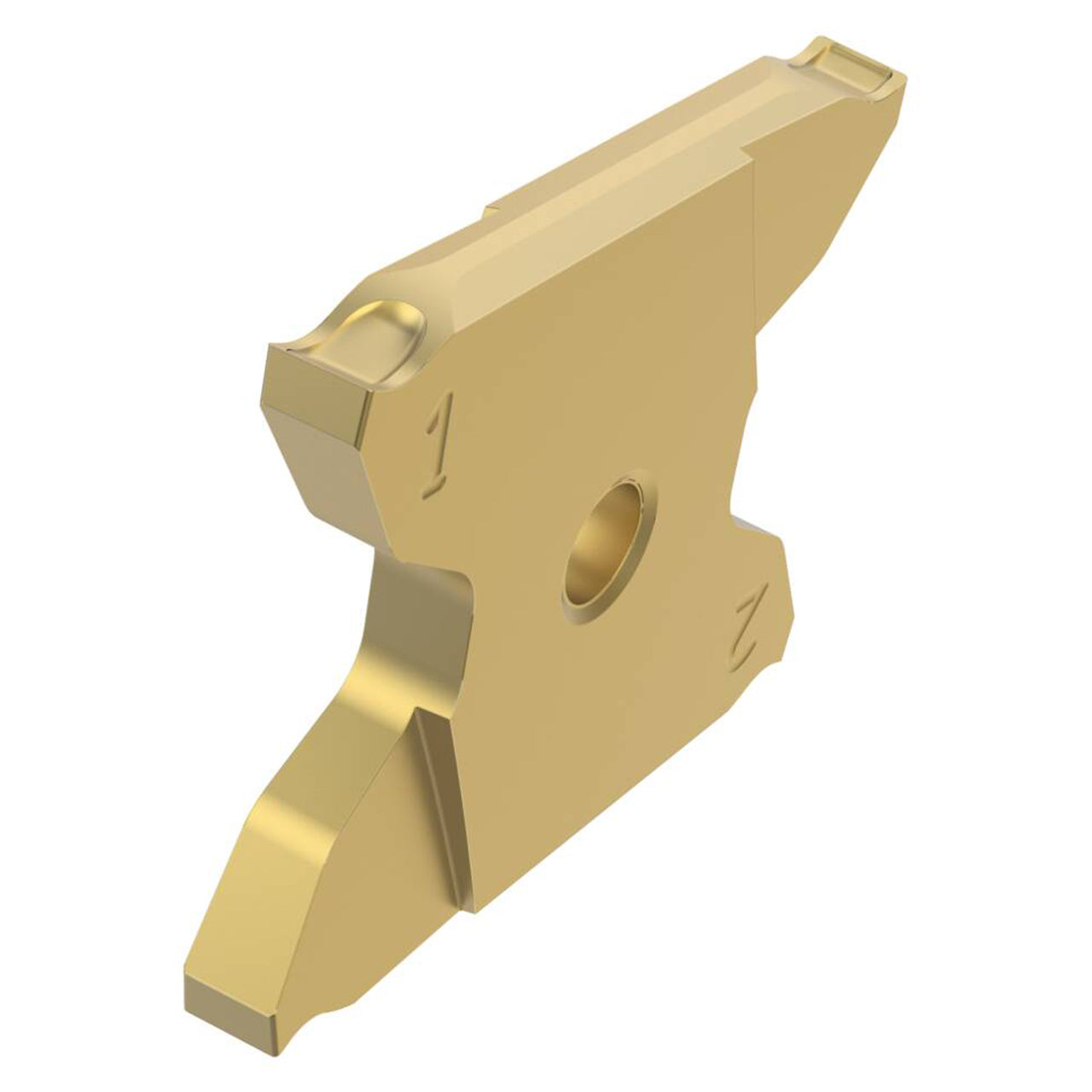

Product Specifications
| Manufacturer Part Number | 02822999 |
| Insert Gauge Length (Decimal Inch) | 0.748" |
| Insert Gauge Length (mm) | 19.00mm |
| Insert Length (Decimal Inch) | 1.002" |
| Insert Length (mm) | 25.44mm |
| Cutting Width (Decimal Inch) | 0.039" |
| Cutting Width (mm) | 1.00mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.169" |
| Maximum Cutting Depth Insert (mm) | 4.30mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Insert Thickness (Decimal Inch) | 0.803" |
| Insert Thickness (mm) | 20.40mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 6 Degree |
| Insert Hand | Right Hand |
| Insert Size And Shape | X42503R |
| Material | Carbide |
| Product Type | Grooving Insert |
