Product Specifications
| Manufacturer Part Number | 02815044 |
| Insert Diameter (Decimal Inch) | 0.079" |
| Insert Diameter (mm) | 2.00mm |

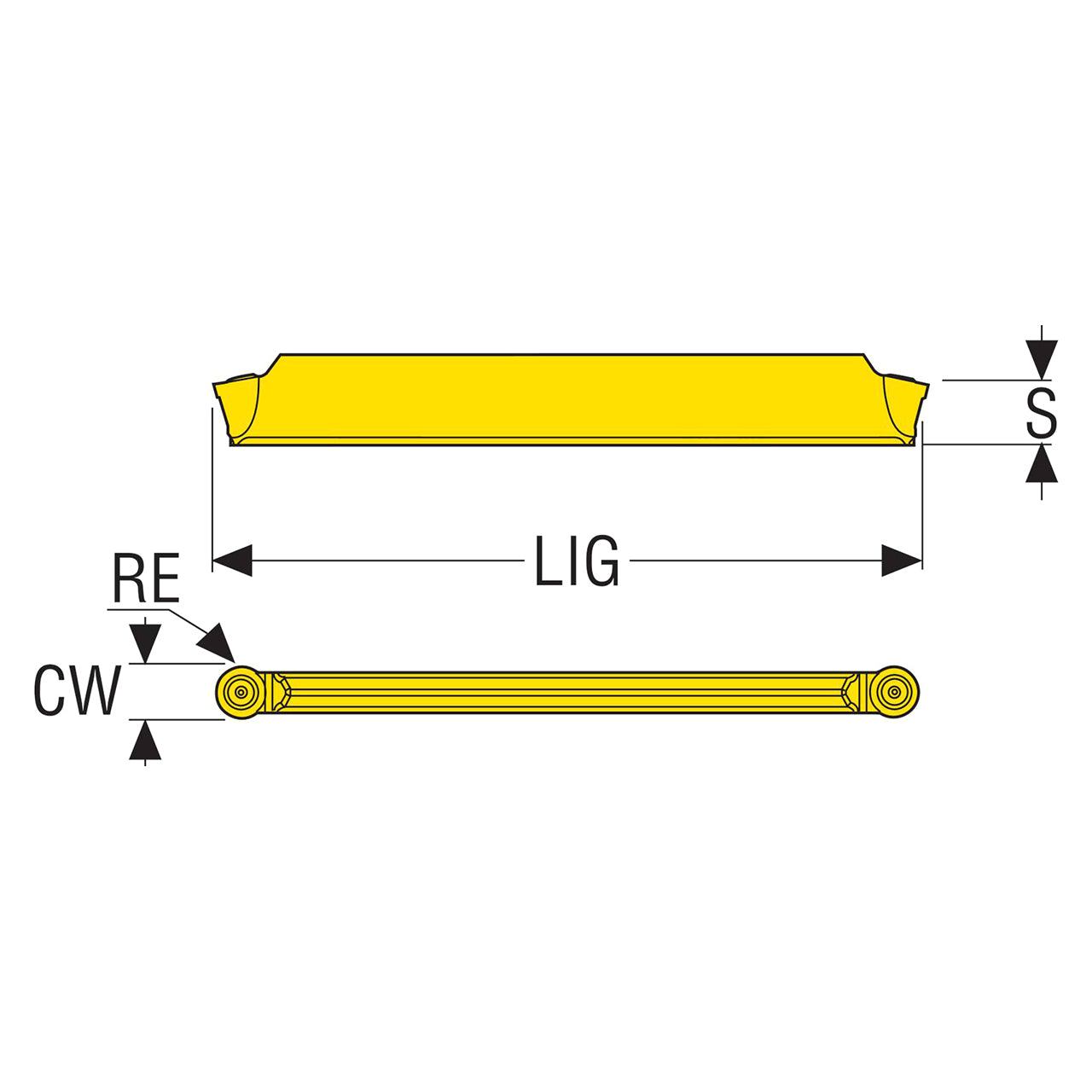

| Insert Gauge Length (Decimal Inch) | 0.728" |
| Insert Gauge Length (mm) | 18.50mm |
| Cutting Width (Decimal Inch) | 0.079" |
| Cutting Width (mm) | 2.00mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.689" |
| Maximum Cutting Depth Insert (mm) | 17.50mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (Decimal Inch) | 0.112" |
| Insert Thickness (mm) | 2.85mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | LC1902 |
| Material | Carbide |

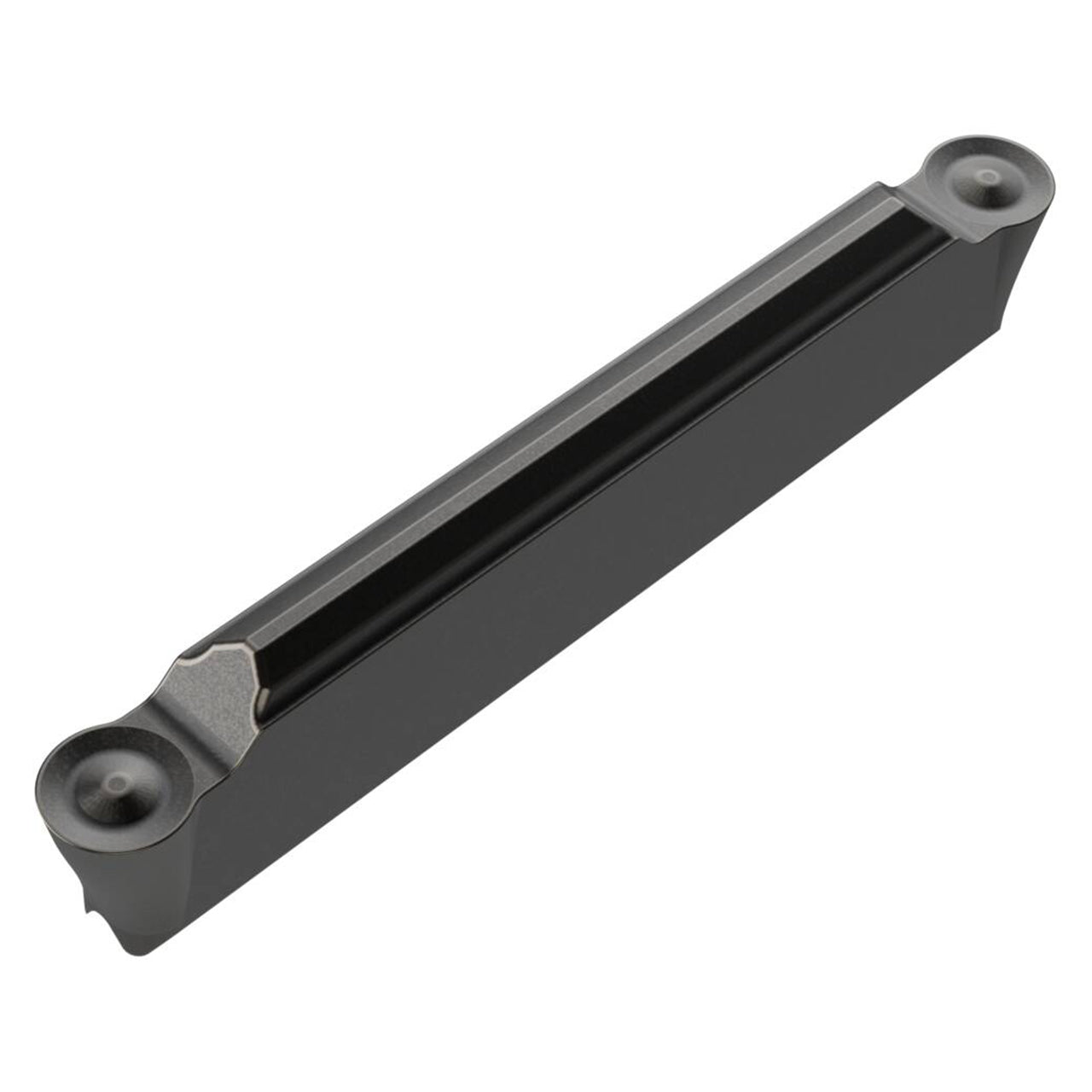

| Product Type | Multi-Directional Turning Insert |
