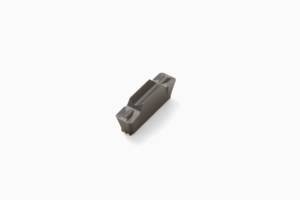

Product Specifications
| Manufacturer Part Number | 02815041 |
| Insert Gauge Length (Decimal Inch) | 0.626" |
| Insert Gauge Length (mm) | 15.90mm |
| Cutting Width (Decimal Inch) | 0.197" |
| Cutting Width (mm) | 5.00mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.551" |
| Maximum Cutting Depth Insert (mm) | 14.00mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.177" |
| Insert Thickness (mm) | 4.50mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | LC1605 |
| Material | Carbide |
| Product Type | Multi-Directional Turning Insert |
