Product Specifications

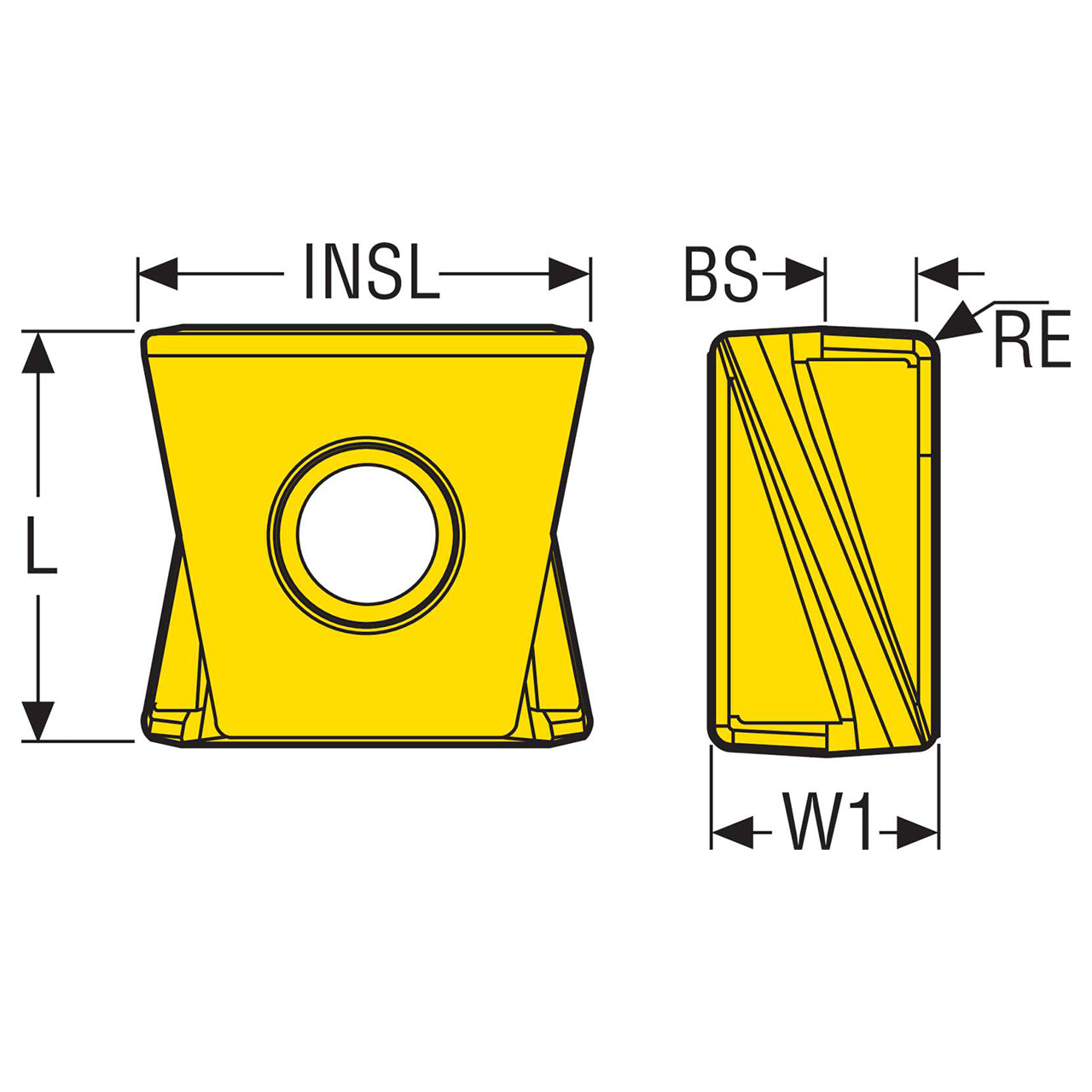

| Manufacturer Part Number | 02809885 |
| Insert Length (Decimal Inch) | 0.595" |
| Insert Length (mm) | 15.10mm |
| Wiper Edge Length (Decimal Inch) | 0.118" |
| Wiper Edge Length (mm) | 3.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.516" |
| Cutting Edge Effective Length (mm) | 13.10mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | E10 |
| Insert Size And Shape | XNHQ1407 |
| Insert Rake Angle (Degree) | 22 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

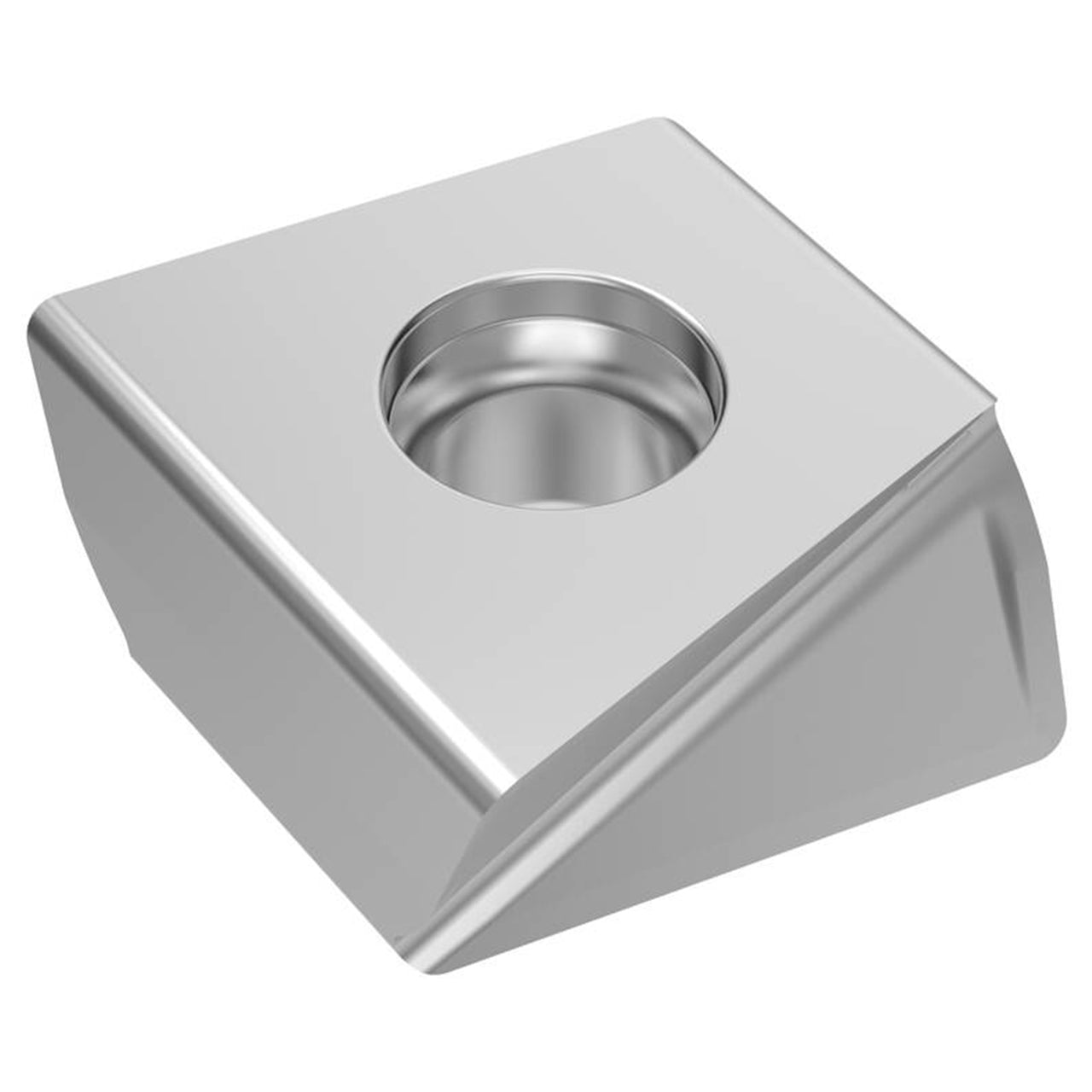

| Product Type | Disc Milling Insert |
