Product Specifications
| Manufacturer Part Number | 02809481 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.969" |
| Minimum Cutting Diameter Internal (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.260" |
| Functional Length (mm) | 32.00mm |
| Insert Width (Decimal Inch) | 0.272" |
| Insert Width (mm) | 6.90mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.572" |
| Maximum Radial Cutting Depth (mm) | 14.53mm |
| Maximum Cutting Depth (Decimal Inch) | 0.049" |
| Maximum Cutting Depth (mm) | 1.24mm |
| Functional Height (Decimal Inch) | 0.002" |
| Functional Height (mm) | 0.05mm |
| Shank Type | GL-Connection |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13.54 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6.21 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 93 Degree |

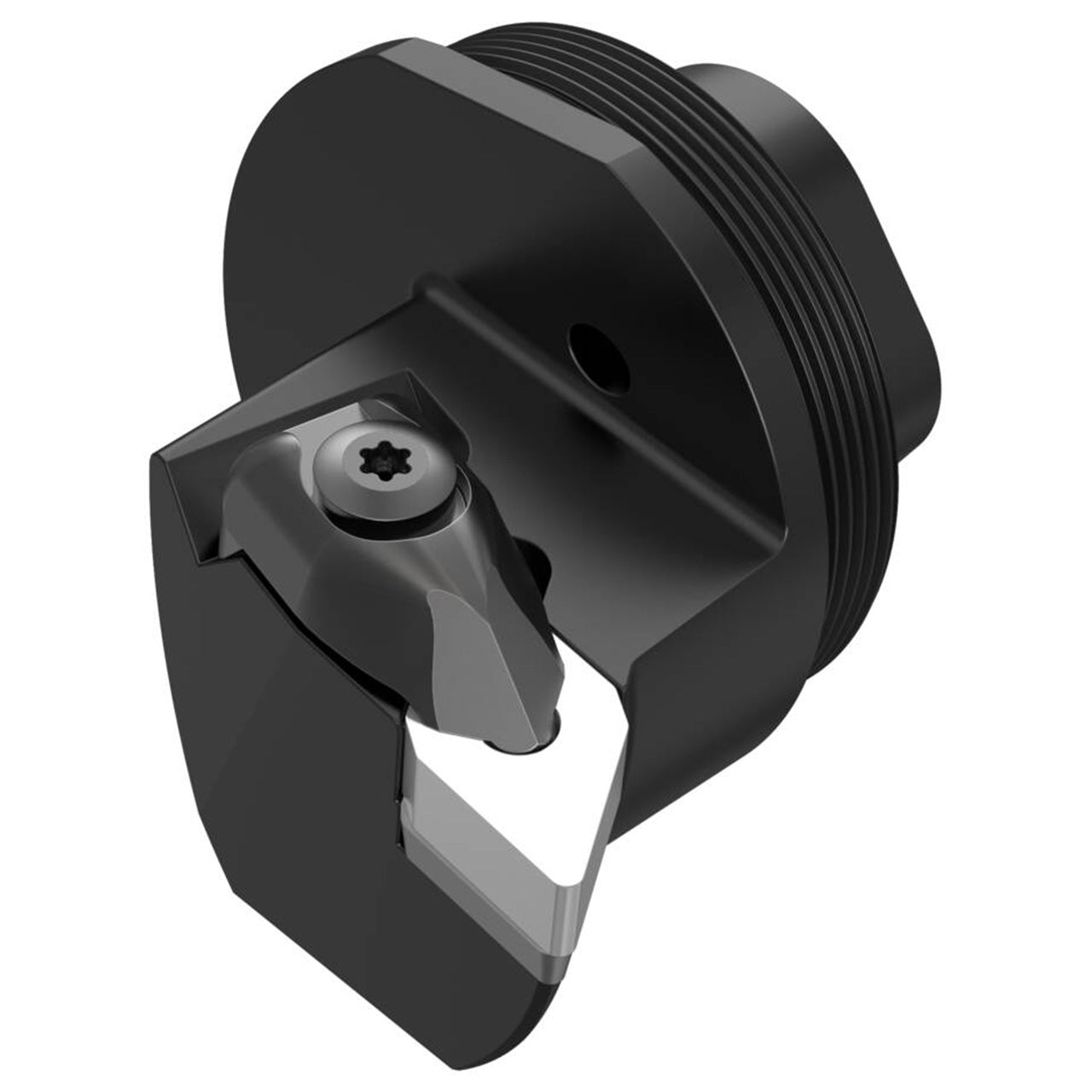

| Product Type | Modular Cutting Head |
