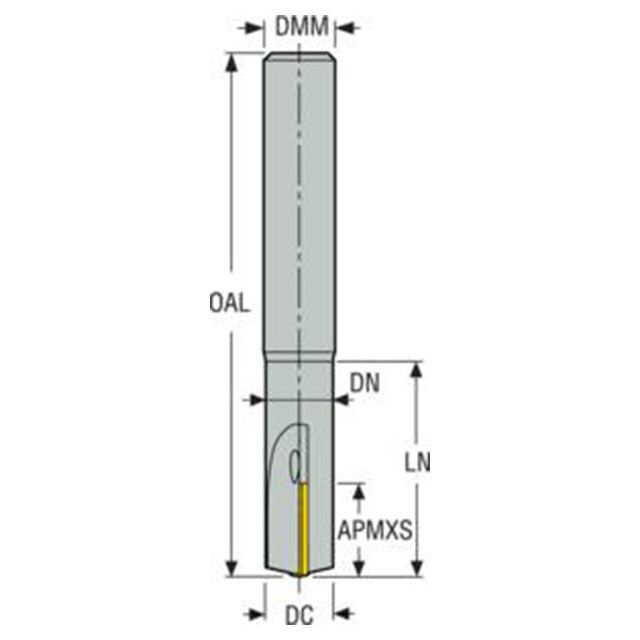

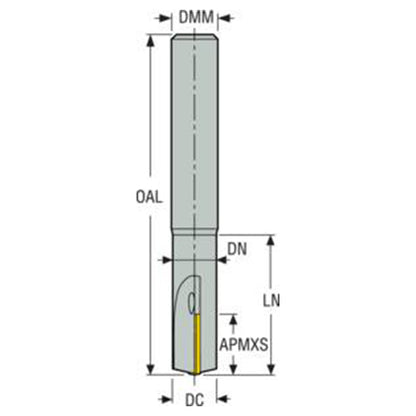

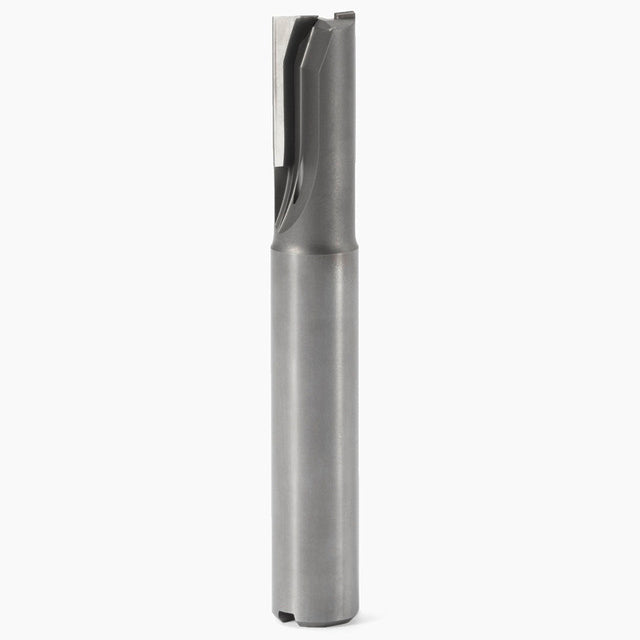

Product Specifications
| Manufacturer Part Number | 02791385 |
| Cutting Diameter (mm) | 10.00mm |
| Cutting Diameter 1 (mm) | 10.00mm |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Neck Diameter (mm) | 9.40mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 19.79mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.00mm |
| Overall Length (mm) | 73.00mm |
| Neck Length (mm) | 30.00mm |
| Neck Length 1 (mm) | 30.00mm |
| Cutting Edge Effective Length (mm) | 20.00mm |
| Maximum Depth of Cut (mm) | 20.00mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JPD890 |
| Cutting Geometry Type Technical | JPD890 |
| Face Cutting Edge Count | 2 |
| Flute Helix Direction | Straight |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | Yes |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 2 |
| Material | PCD |
| Coating | Uncoated |
| Product Type | Straight Router Bit |
