Product Specifications
| Manufacturer Part Number | 02790281 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.362" |
| Minimum Cutting Diameter Internal (mm) | 60.00mm |
| Minimum Cutting Diameter Internal 2 (Decimal Inch) | 2.000" |
| Minimum Cutting Diameter Internal 2 (mm) | 50.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 2.000" |
| Connection Diameter Machine Side (mm) | 50.80mm |
| Shank Diameter (Decimal Inch) | 2.000" |
| Shank Diameter (mm) | 50.80mm |
| Functional Length (Decimal Inch) | 13.78" |
| Functional Length (mm) | 350.00mm |
| Head Length (Decimal Inch) | 2.284" |
| Head Length (mm) | 58.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.843" |
| Height of Tool Holder Shank (mm) | 46.80mm |
| Shank Type | Cylindrical |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |

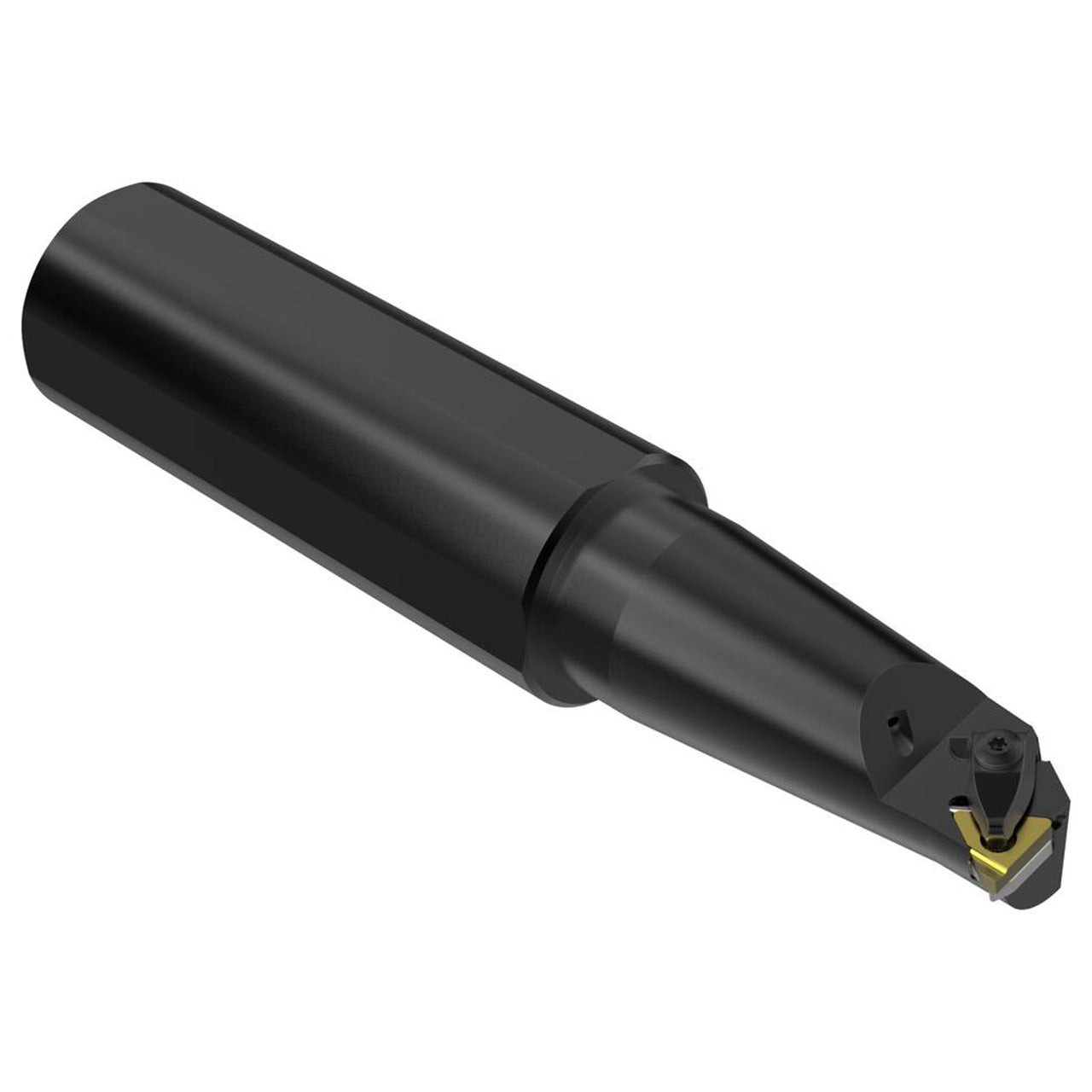

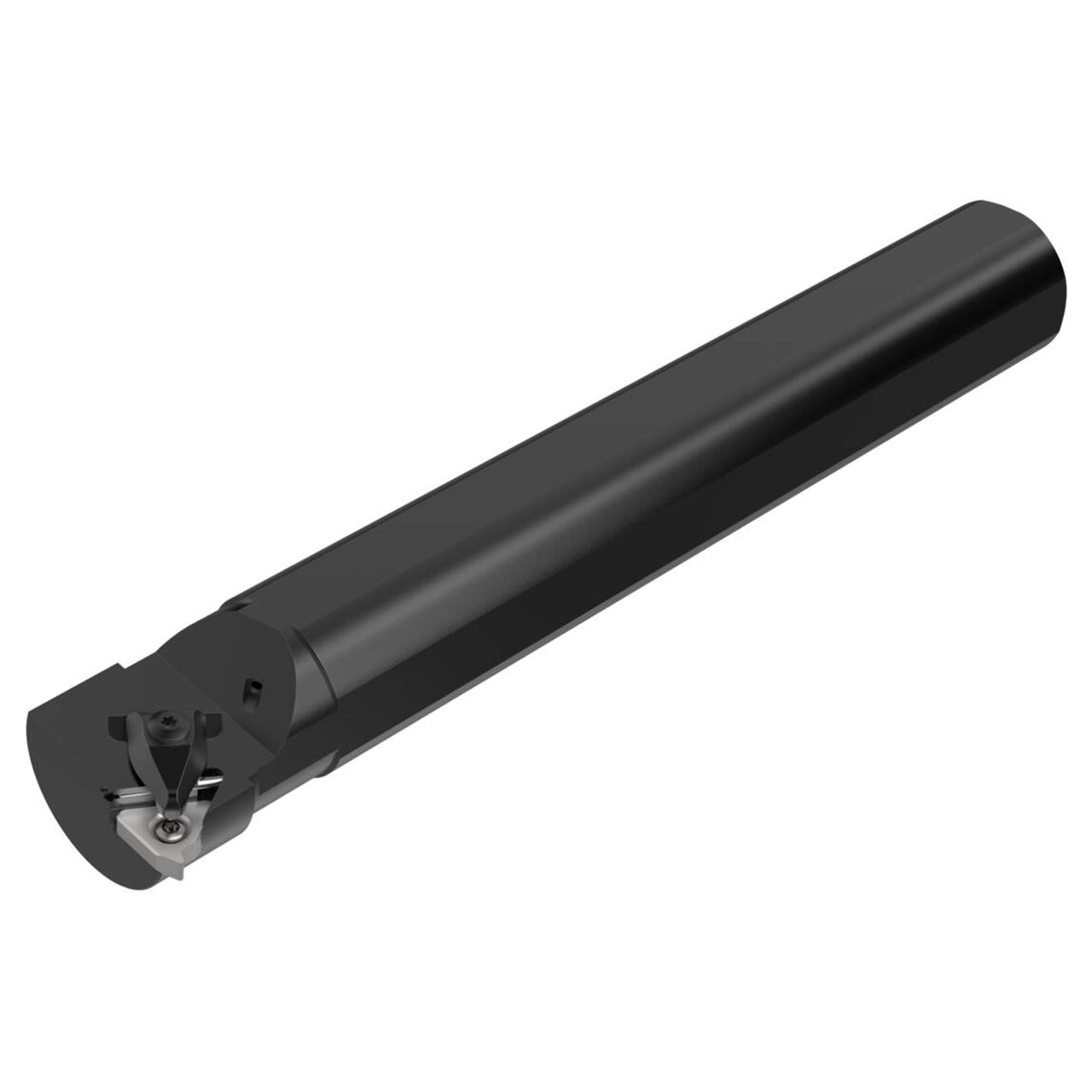

| Product Type | Indexable Threading Toolholder |
