Product Specifications
| Manufacturer Part Number | 02789777 |
| Cutting Diameter (Decimal Inch) | 0.290" |
| Cutting Diameter (mm) | 7.36mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.625" |
| Maximum Cutting Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.171" |
| Maximum Helical Interpolation Hole Diameter (mm) | 29.75mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.915" |
| Minimum Helical Interpolation Hole Diameter (mm) | 23.24mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Shank Length (Decimal Inch) | 5.000" |
| Shank Length (mm) | 127.00mm |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Maximum Depth of Cut (mm) | 0.76mm |
| Maximum Depth of Cut (Decimal Inch) | 0.030" |
| Programming Radius (Decimal Inch) | 0.071" |
| Programming Radius (mm) | 1.80mm |
| Uncut Thickness (Decimal Inch) | 0.0177 |
| Uncut Thickness (mm) | 0.45 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Maximum Rotational Speed (rpm) | 39000 rpm |
| Insert Shape Code | L |
| Shank Type | Cylindrical |

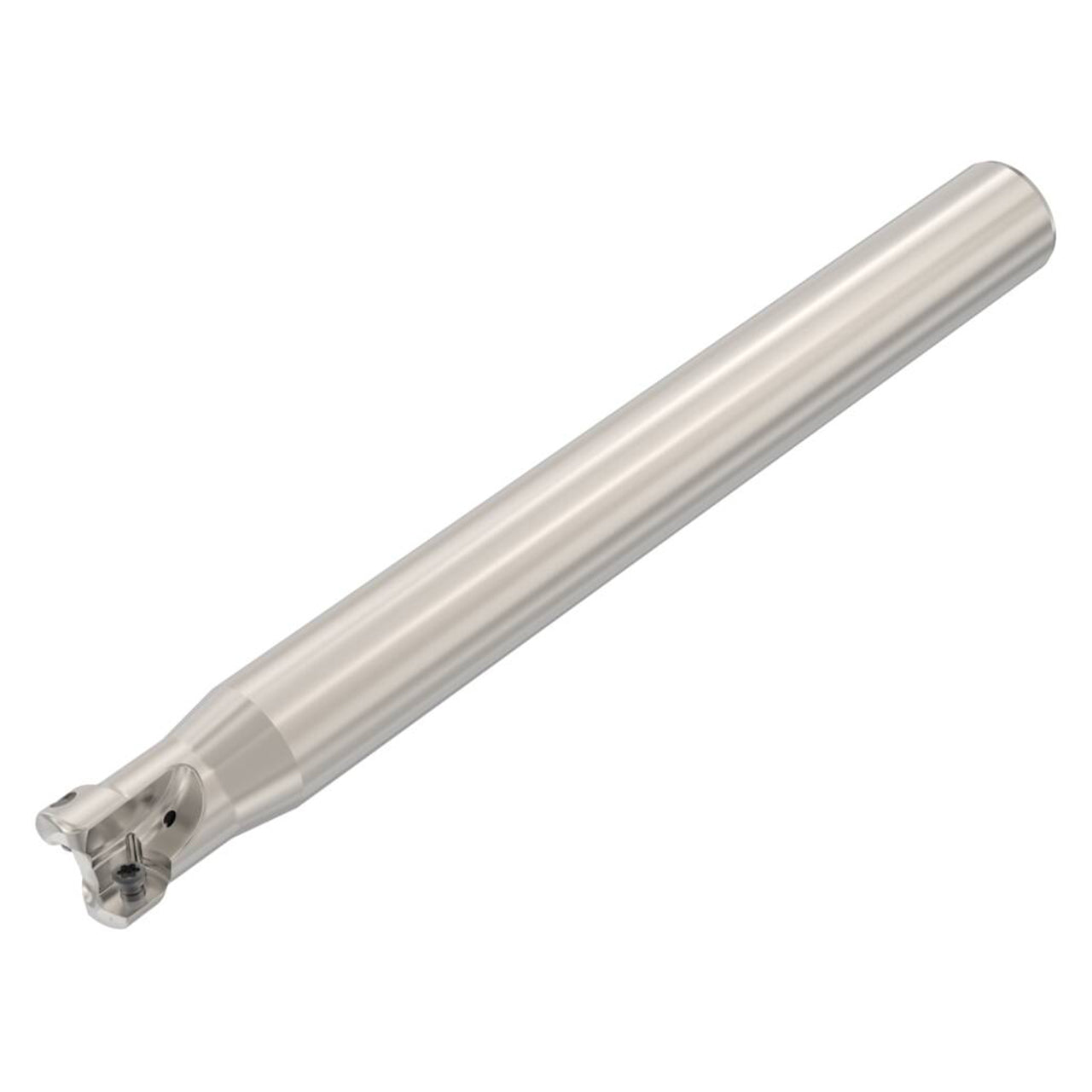

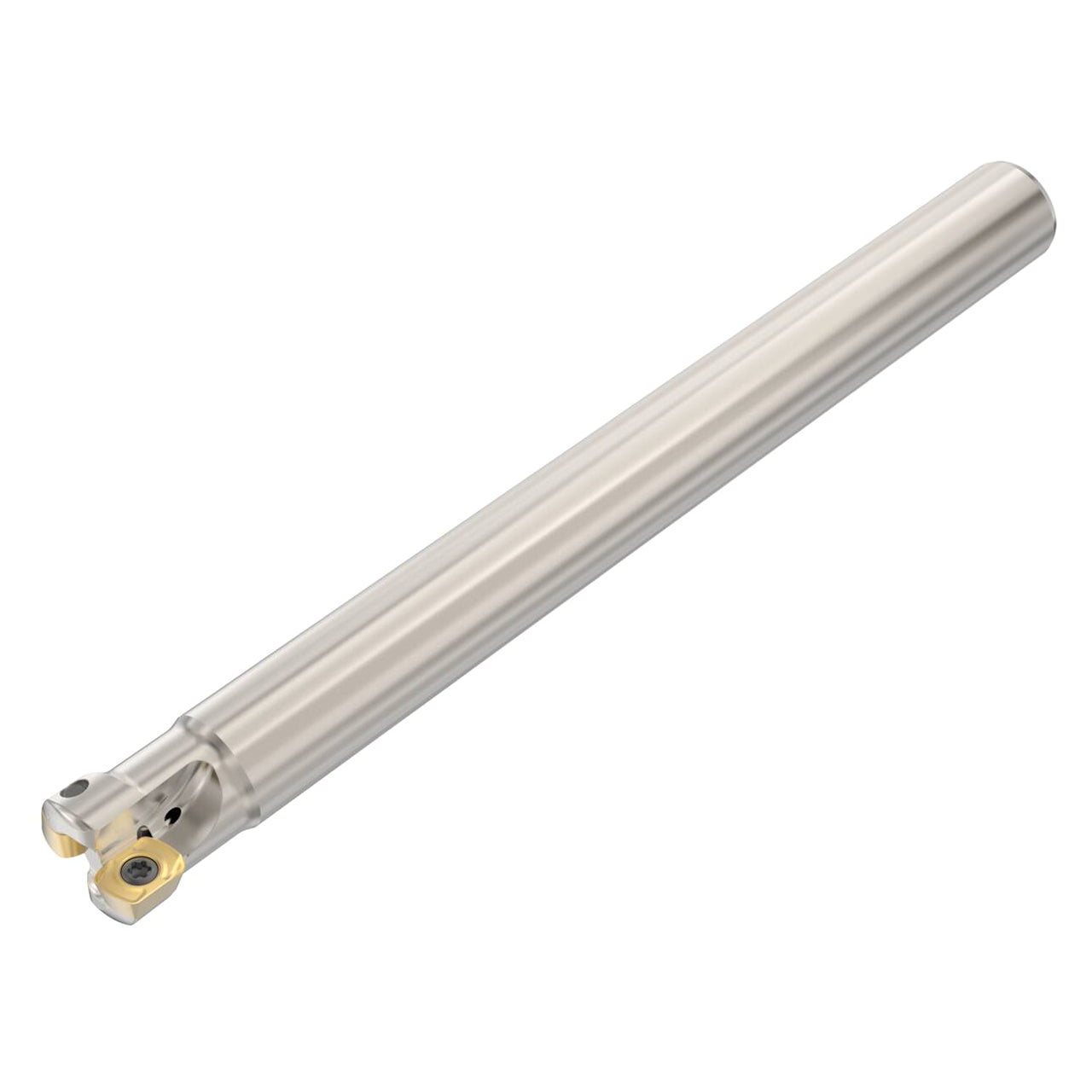

| Product Type | Indexable High-Feed End Mill |
