Product Specifications
| Manufacturer Part Number | 02789050 |
| Cutting Diameter (Decimal Inch) | 1.327" |
| Cutting Diameter (mm) | 33.70mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.850" |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.000" |
| Maximum Cutting Diameter (mm) | 50.80mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 3.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 99.60mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 3.327" |
| Minimum Helical Interpolation Hole Diameter (mm) | 84.50mm |
| Functional Length (Decimal Inch) | 1.600" |
| Functional Length (mm) | 40.64mm |
| Maximum Depth of Cut (mm) | 2.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.079" |
| Depth of Key Way (Decimal Inch) | 0.191" |
| Depth of Key Way (mm) | 4.85mm |
| Keyway Width (Decimal Inch) | 0.322" |
| Keyway Width (mm) | 8.18mm |
| Programming Radius (Decimal Inch) | 0.119" |
| Programming Radius (mm) | 3.03mm |
| Uncut Thickness (Decimal Inch) | 0.0409 |
| Uncut Thickness (mm) | 1.04 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 1.17 Degree |
| Maximum Rotational Speed (rpm) | 12900 rpm |
| Insert Shape Code | 218.19 |

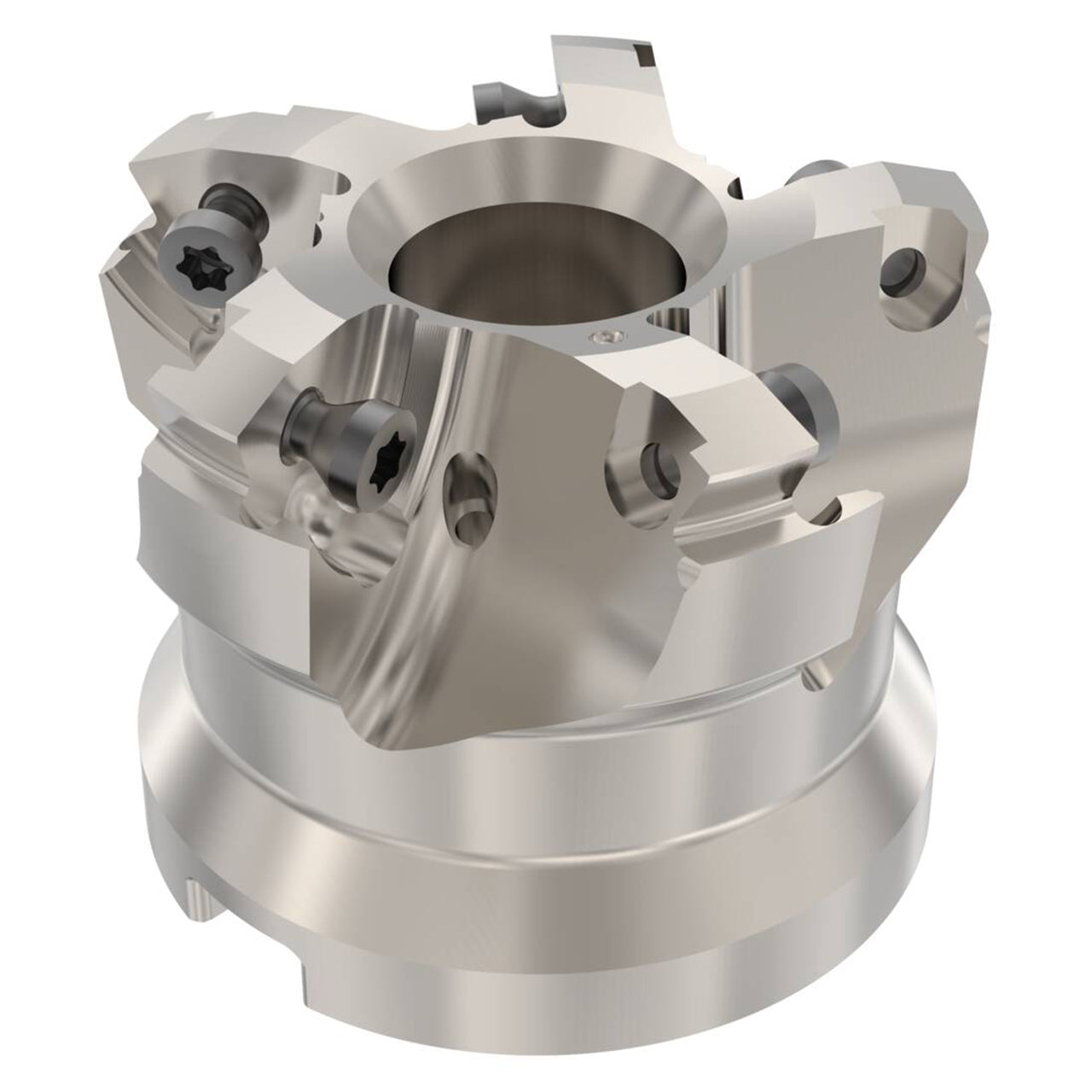

| Shank Type | Arbor |

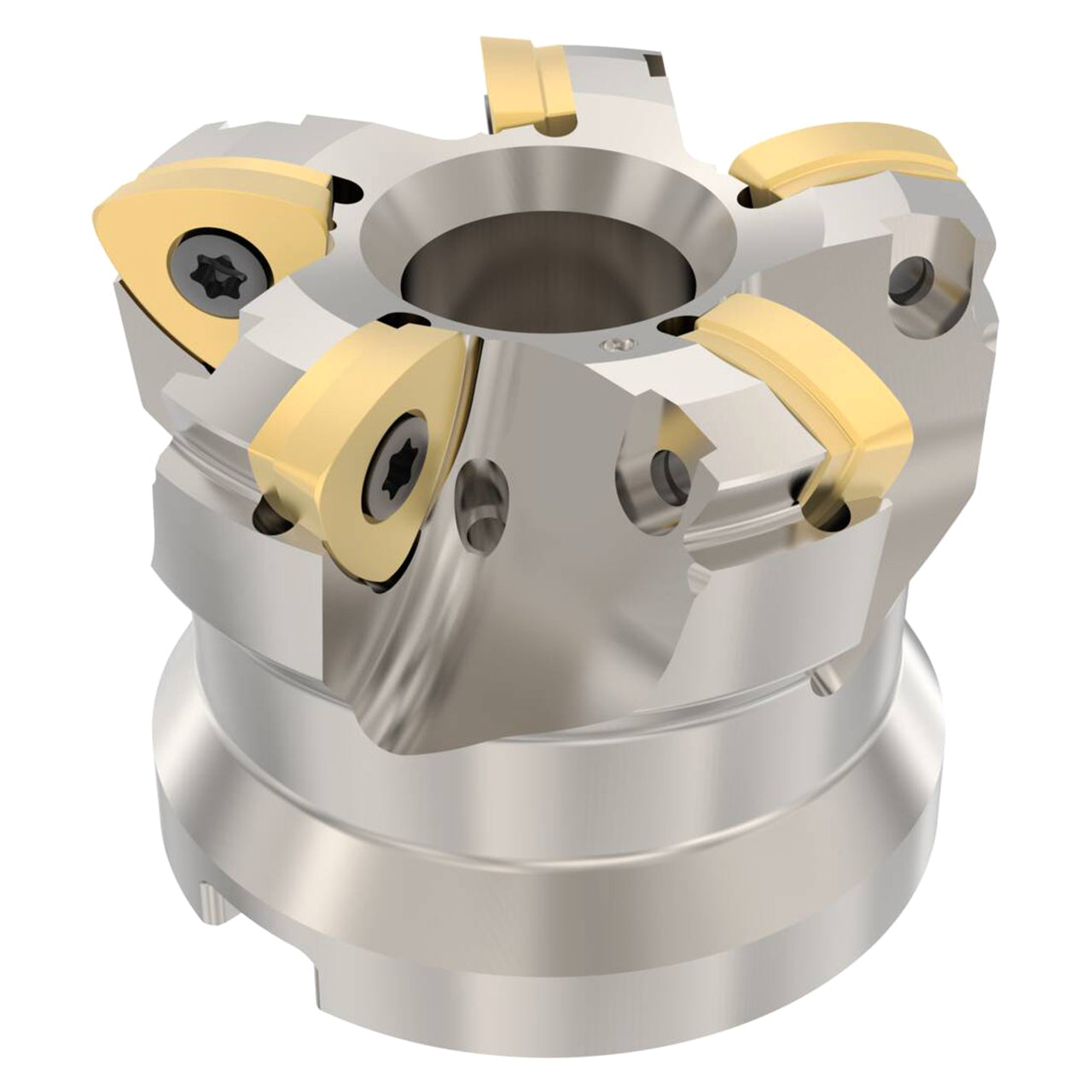

| Product Type | High Feed Trigon Shape Insert |
