Product Specifications
| Manufacturer Part Number | 02772635 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.728" |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Thread Diameter Size | M10 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.437" |
| Maximum Helical Interpolation Hole Diameter (mm) | 36.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.063" |
| Minimum Helical Interpolation Hole Diameter (mm) | 27.00mm |
| Functional Length (Decimal Inch) | 1.378" |
| Functional Length (mm) | 35.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -9.2 Degree |
| Rake Radial Angle (Degree) | -9.2 Degree |
| Rake Orthogonal Angle (Degree) | -9.2 Degree |
| Axial Rake Angle (Degree) | 5.2 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Maximum Rotational Speed (rpm) | 26300 rpm |
| Shank Type | Combimaster |

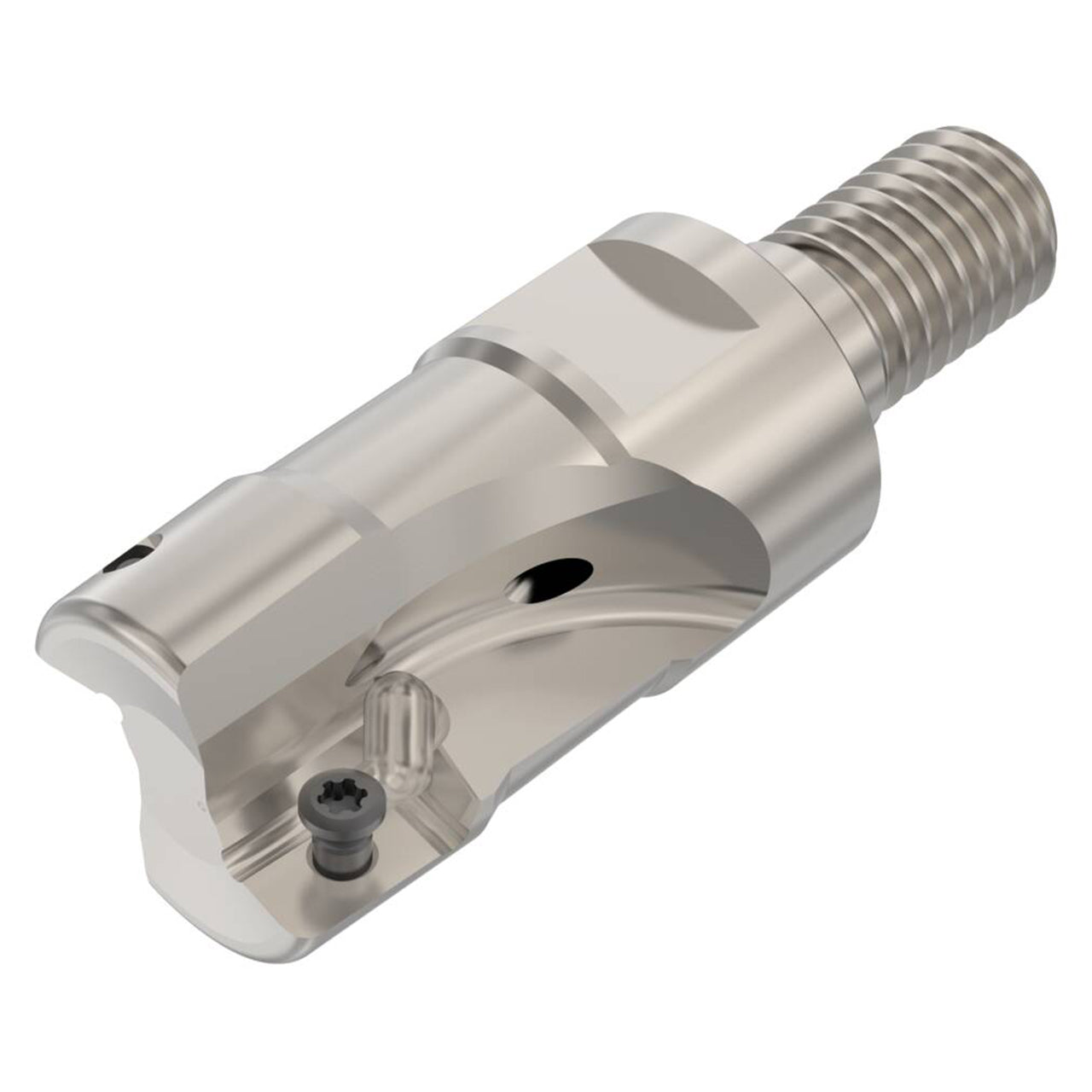

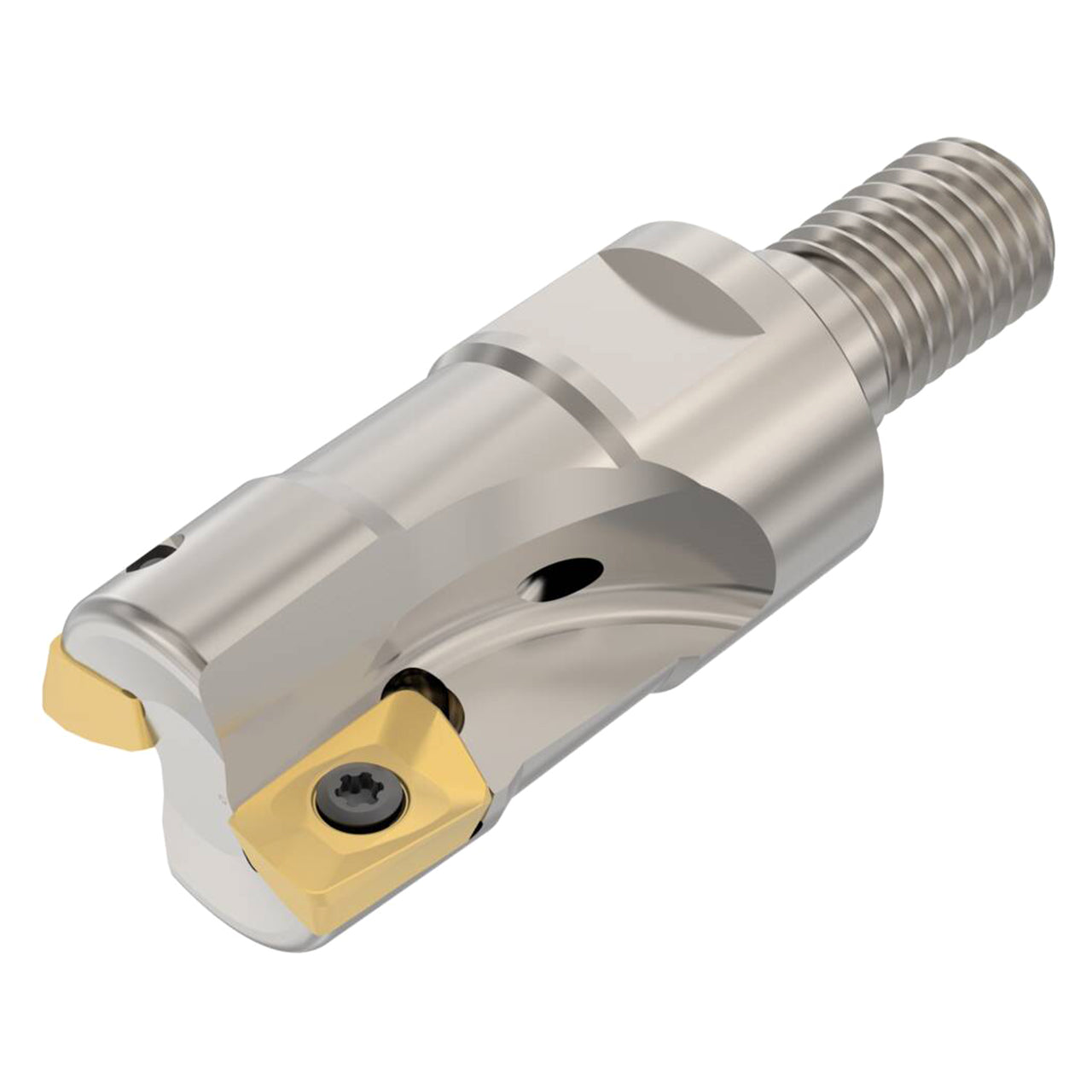

| Product Type | Indexable Square-Shoulder End Mill |
