Product Specifications
| Manufacturer Part Number | 02772634 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Cutting Diameter (mm) | 15.88mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.201" |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.827" |
| Minimum Helical Interpolation Hole Diameter (mm) | 21.00mm |
| Functional Length (Decimal Inch) | 2.299" |
| Functional Length (mm) | 58.40mm |
| Protruding Length (Decimal Inch) | 1.362" |
| Protruding Length (mm) | 34.60mm |
| Shank Length (Decimal Inch) | 2.169" |
| Shank Length (mm) | 55.10mm |
| Overall Length (Decimal Inch) | 3.252" |
| Overall Length (mm) | 82.60mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -11.6 Degree |
| Rake Radial Angle (Degree) | -11.6 Degree |
| Rake Orthogonal Angle (Degree) | -11.6 Degree |
| Axial Rake Angle (Degree) | 2.9 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 7.5 Degree |
| Maximum Rotational Speed (rpm) | 29400 rpm |
| Shank Type | Weldon |

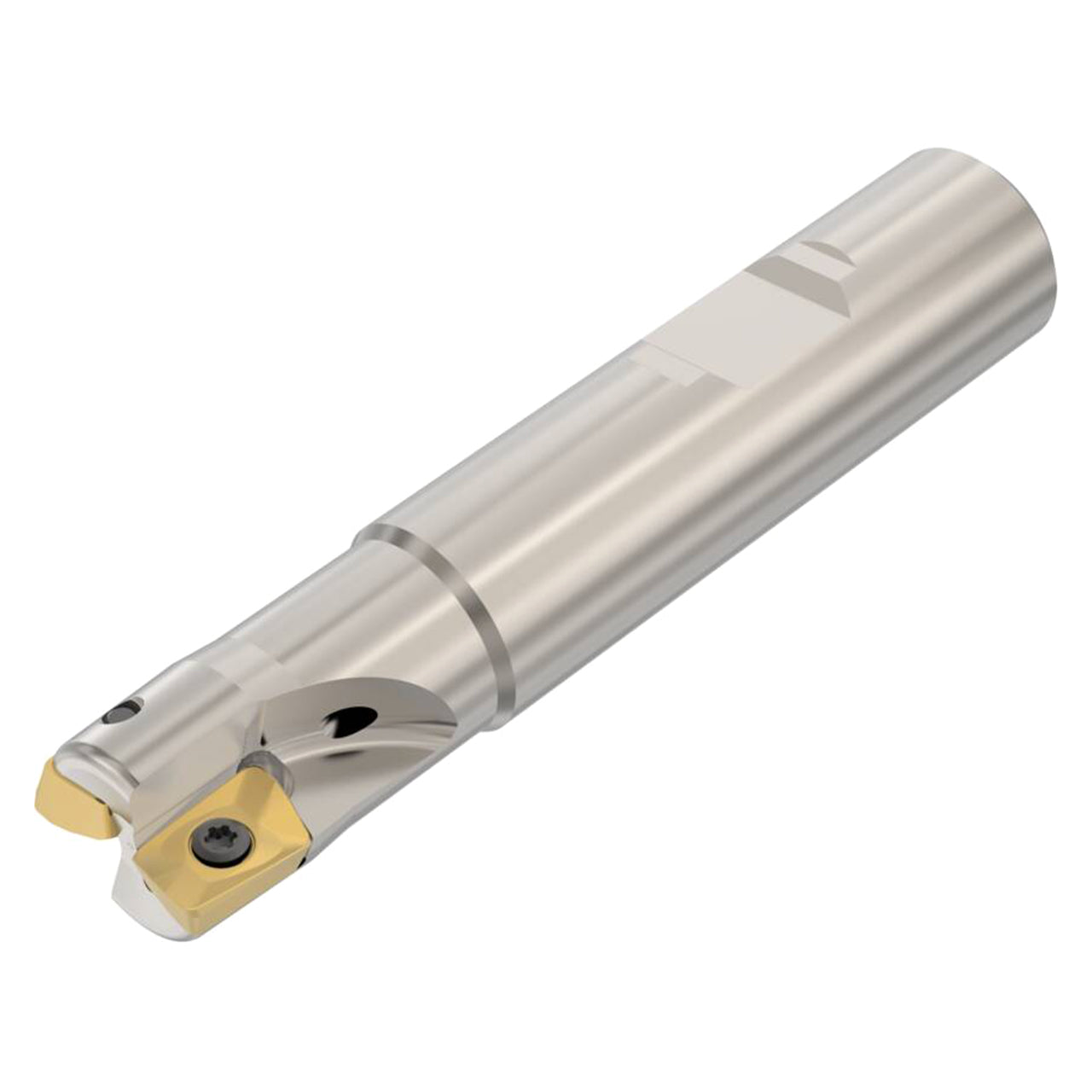

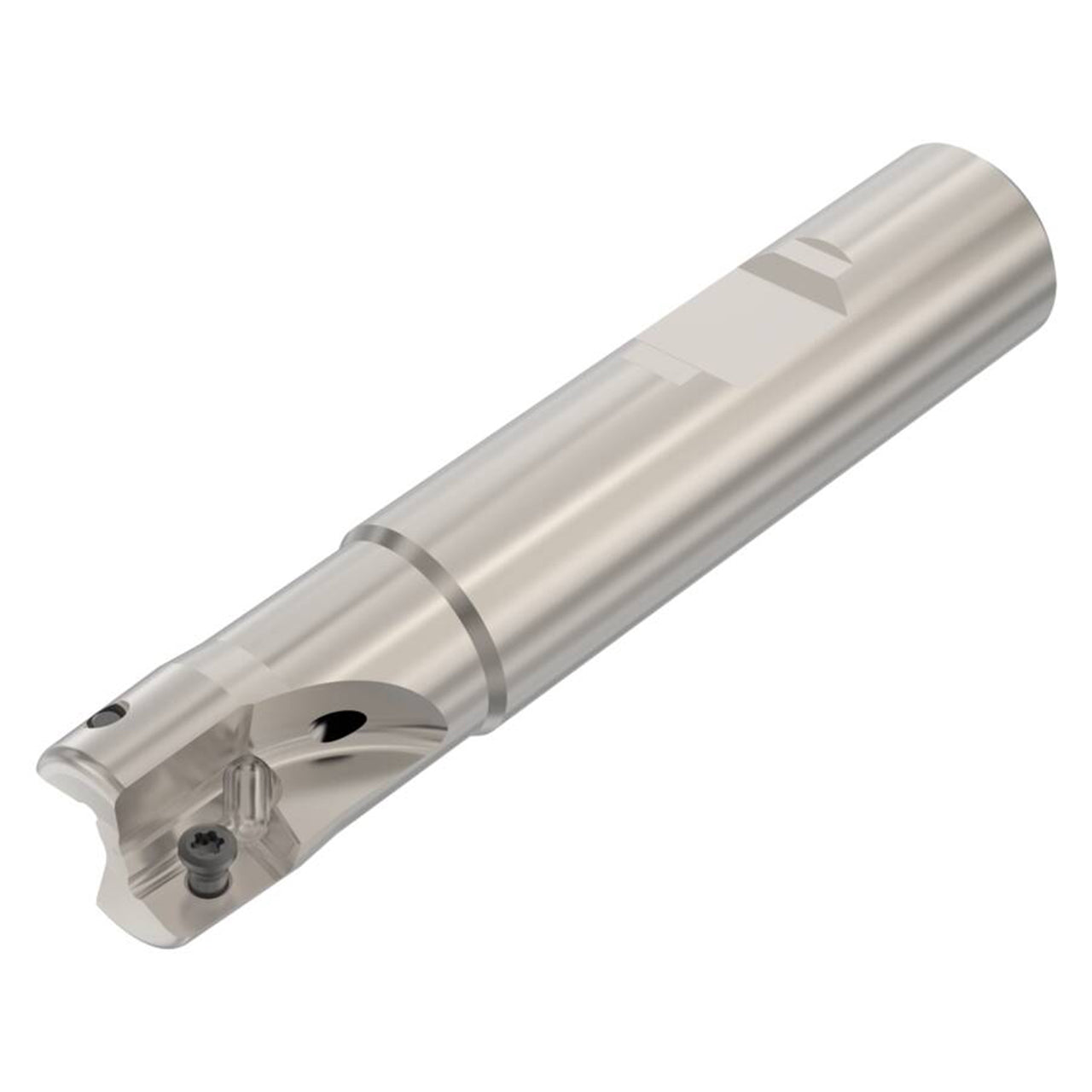

| Product Type | Indexable Square-Shoulder End Mill |
