Product Specifications
| Manufacturer Part Number | 02772627 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Cutting Diameter (mm) | 15.88mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.532" |
| Contact Surface Diameter Machine Side (mm) | 13.50mm |
| Thread Diameter Size | M8 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.181" |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.807" |
| Minimum Helical Interpolation Hole Diameter (mm) | 20.50mm |
| Functional Length (Decimal Inch) | 0.906" |
| Functional Length (mm) | 23.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Connection Mounting Torque (Nm) | 25.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -11.5 Degree |
| Rake Radial Angle (Degree) | -11.5 Degree |
| Rake Orthogonal Angle (Degree) | -11.5 Degree |
| Axial Rake Angle (Degree) | 3 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 7.5 Degree |
| Maximum Rotational Speed (rpm) | 29400 rpm |
| Shank Type | Combimaster |

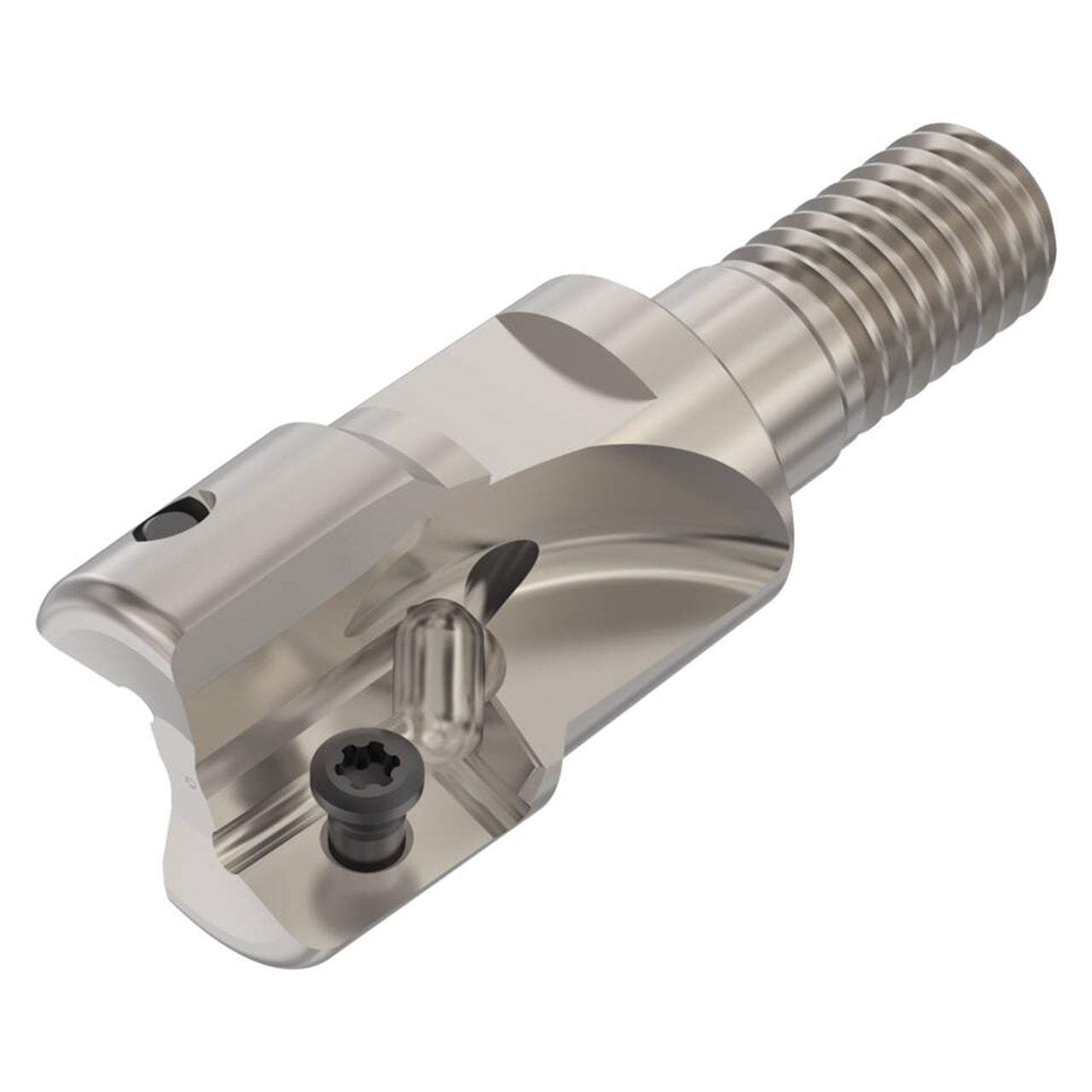

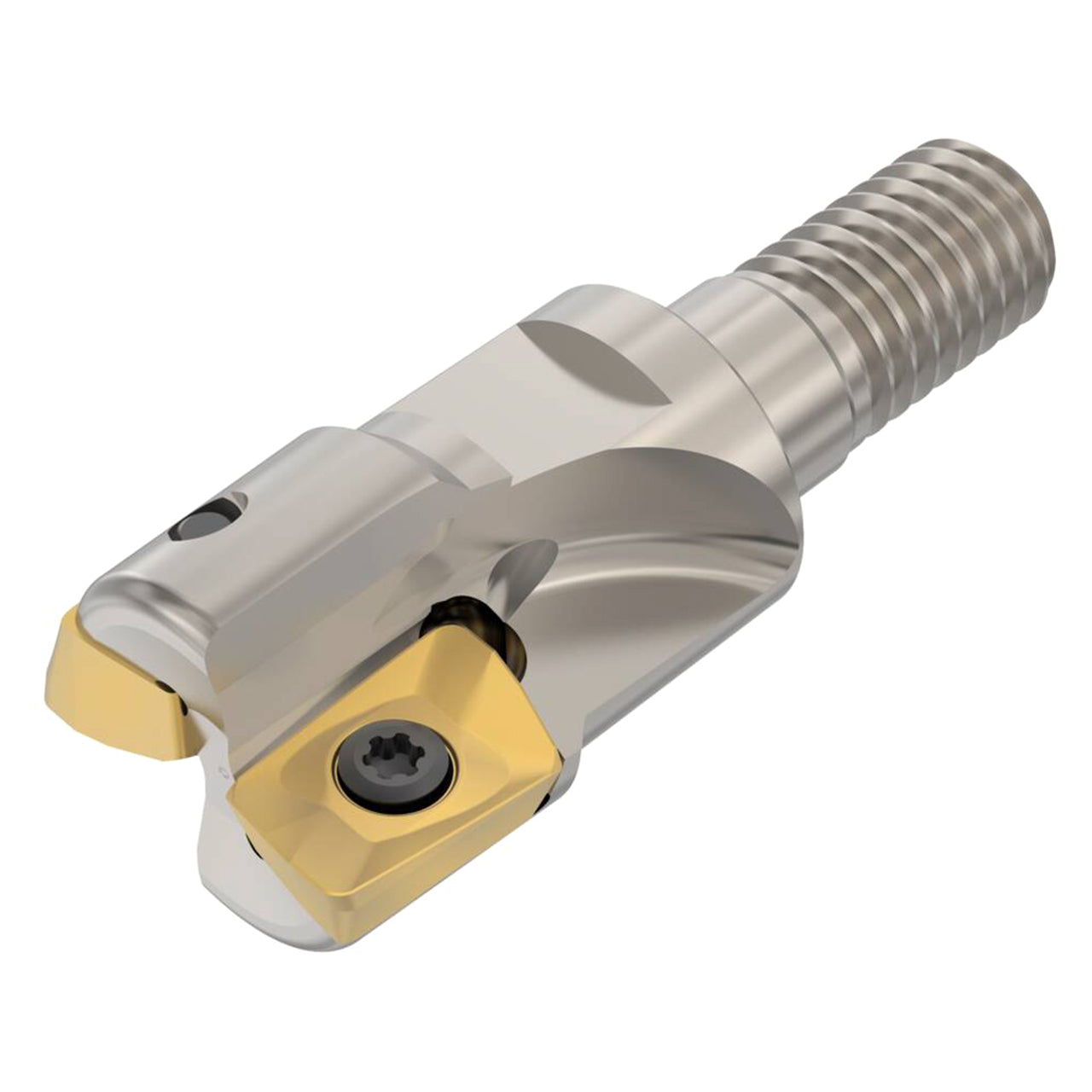

| Product Type | Indexable Square-Shoulder End Mill |
