Product Specifications
| Manufacturer Part Number | 02770501 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.689" |
| Contact Surface Diameter Machine Side (mm) | 17.50mm |
| Functional Length (Decimal Inch) | 1.070" |
| Functional Length (mm) | 27.18mm |
| Maximum Depth of Cut (Decimal Inch) | 0.158" |
| Maximum Depth of Cut (mm) | 4.00mm |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -18.5 Degree |
| Rake Orthogonal Angle (Degree) | -18.5 Degree |
| Maximum Rotational Speed (rpm) | 29400 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XNEX0403 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |

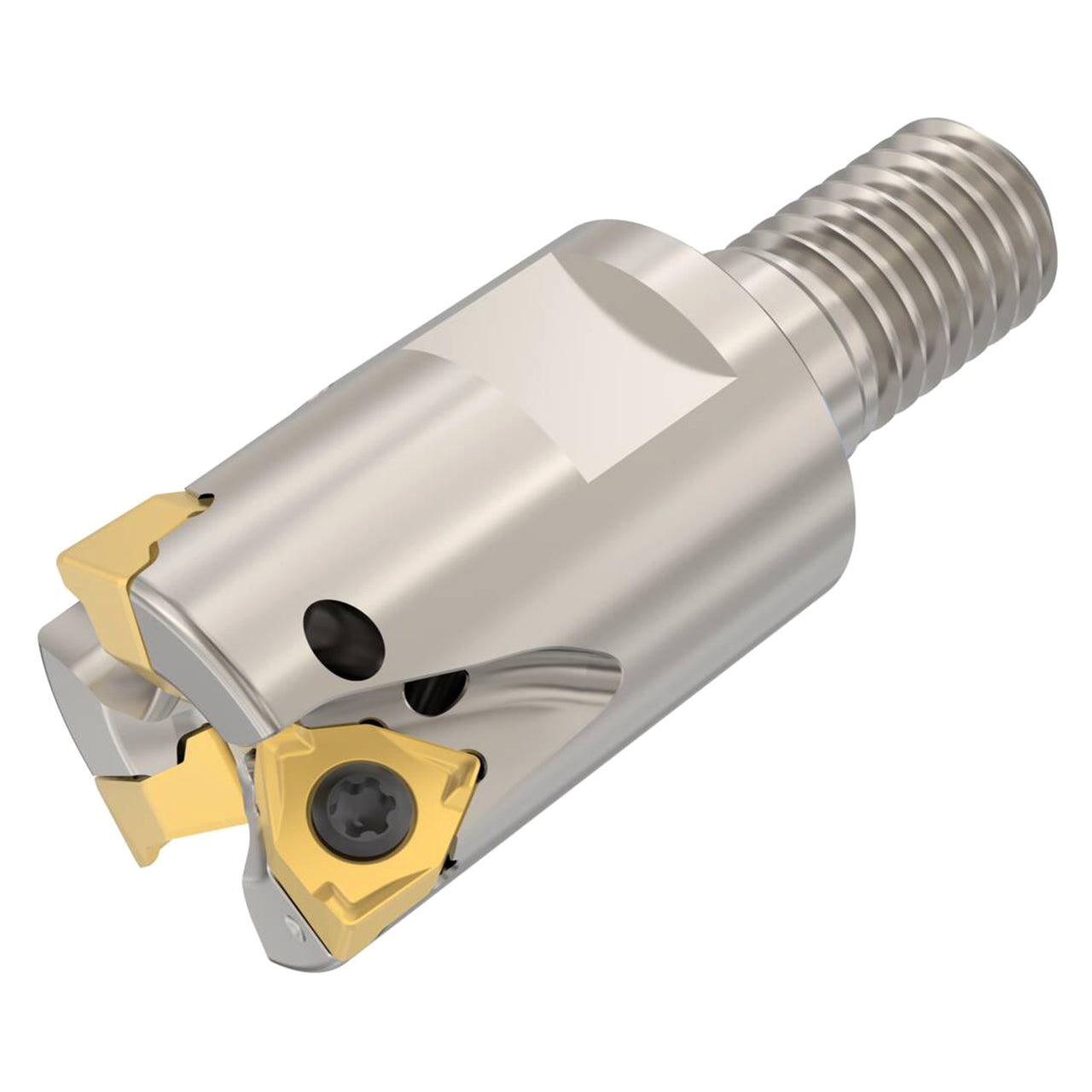

| Product Type | Indexable Square-Shoulder End Mill |
