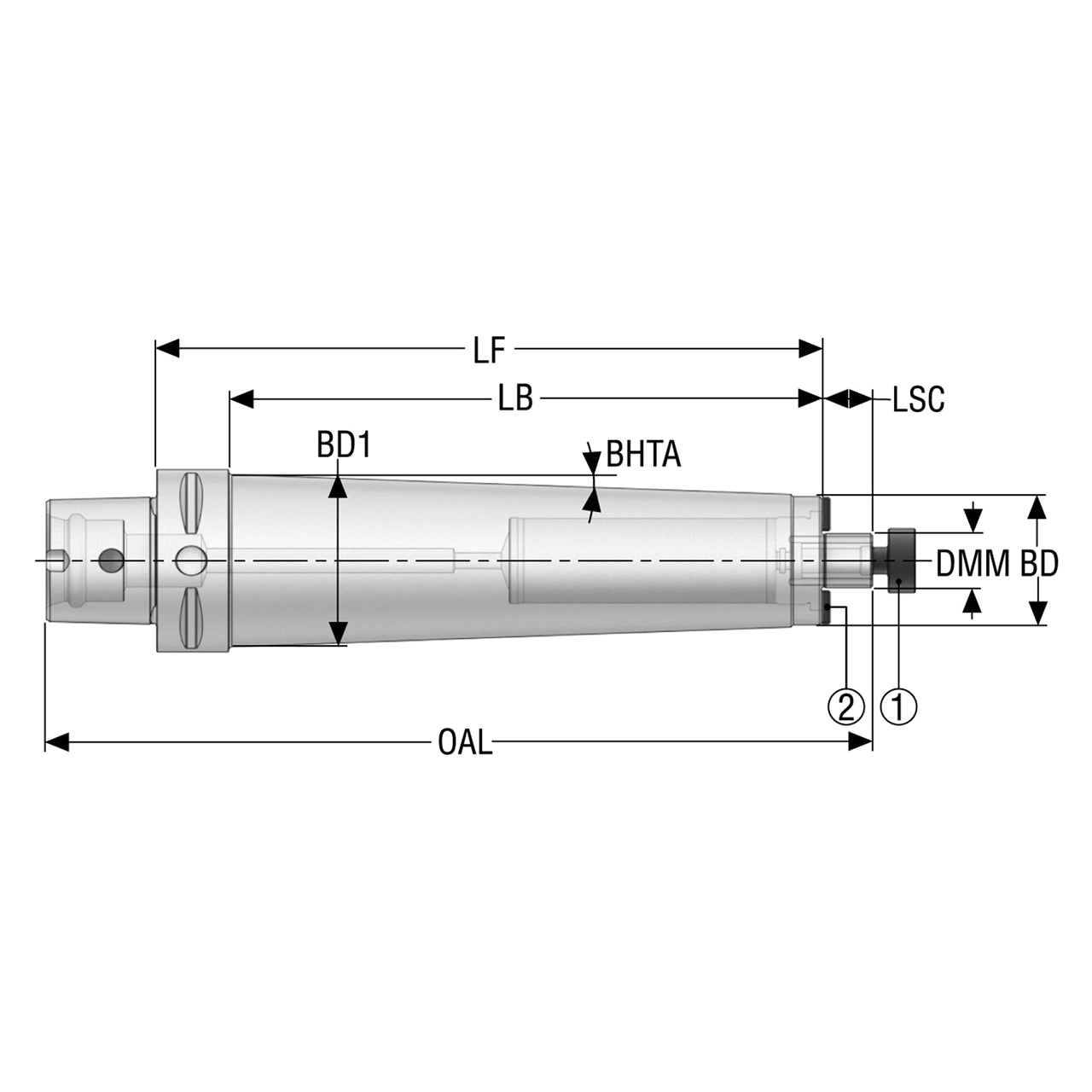

Product Specifications
| Manufacturer Part Number | 02753485 |
| Body Diameter (Decimal Inch) | 3.500" |
| Body Diameter (mm) | 88.90mm |
| Body Diameter 1 (Decimal Inch) | 3.500" |
| Body Diameter 1 (mm) | 88.90mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.500" |
| Connection Diameter Workpiece Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Body Length (Decimal Inch) | 12.453" |
| Body Length (mm) | 316.30mm |
| Functional Length (Decimal Inch) | 13.752" |
| Functional Length (mm) | 349.30mm |
| Clamping Length (Decimal Inch) | 0.941" |
| Clamping Length (mm) | 23.90mm |
| Overall Length (Decimal Inch) | 16.583" |
| Overall Length (mm) | 421.20mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 3000 rpm |

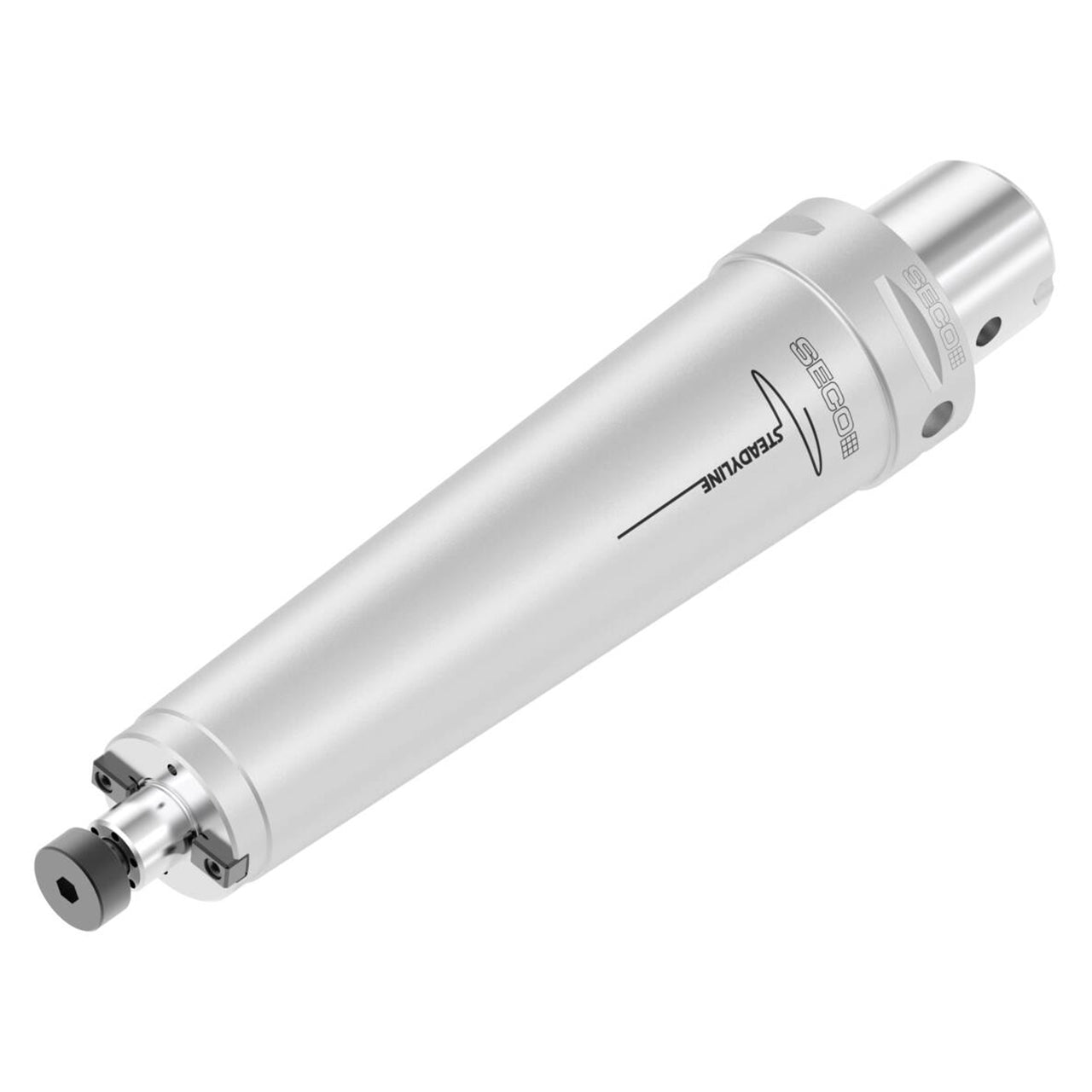

| Product Type | Shell Mill Holder |
