Product Specifications
| Manufacturer Part Number | 02748763 |
| Minimum Cutting Diameter Internal (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (mm) | 200.00mm |
| Head Length (mm) | 52.00mm |
| Usable Length (mm) | 30.00mm |
| Shank Width (mm) | 19.00mm |
| Maximum Cutting Depth (mm) | 5.50mm |
| Cutting Width (mm) | 2.00mm |
| Height of Tool Holder Shank (mm) | 18.00mm |
| Functional Width (mm) | 14.50mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Cylindrical |

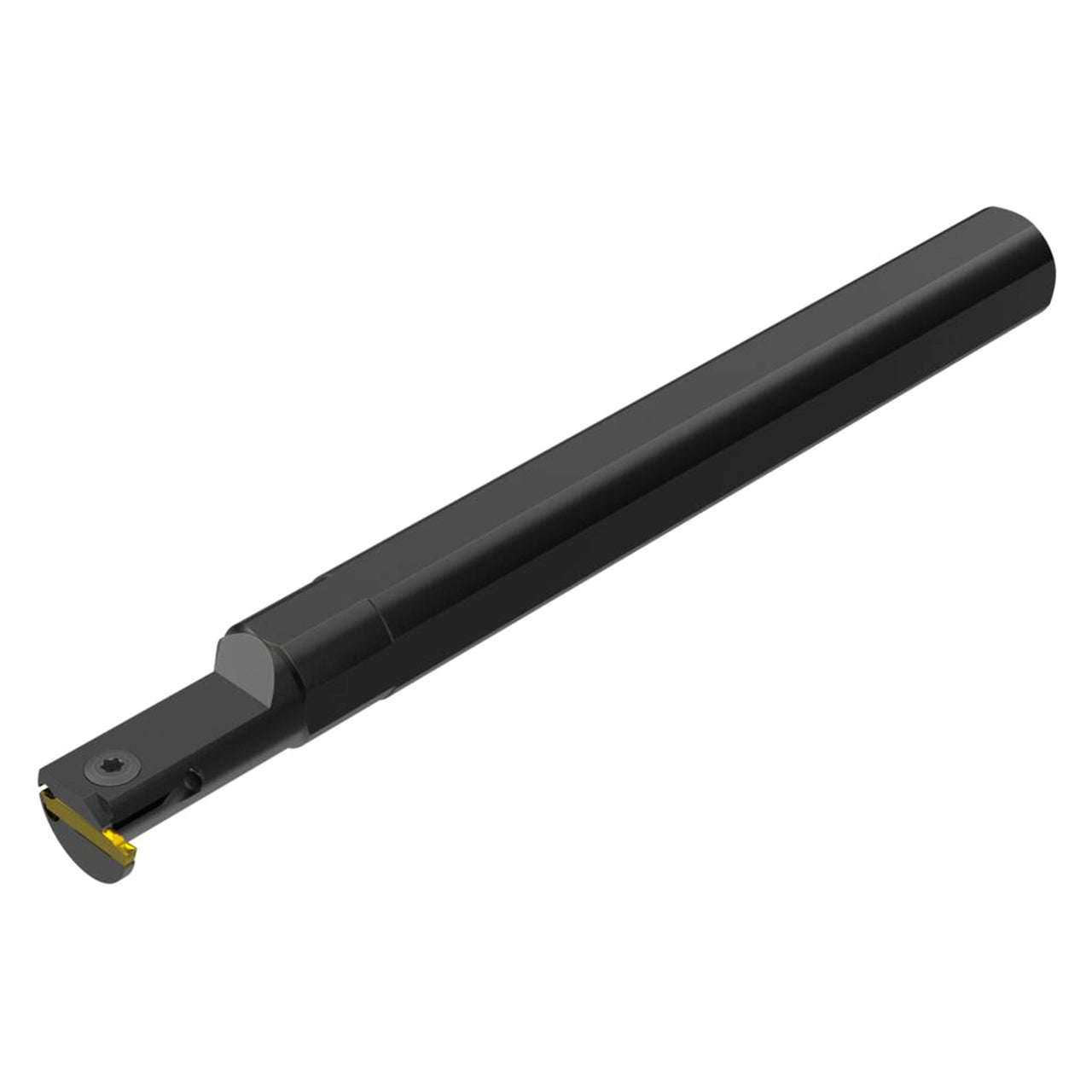

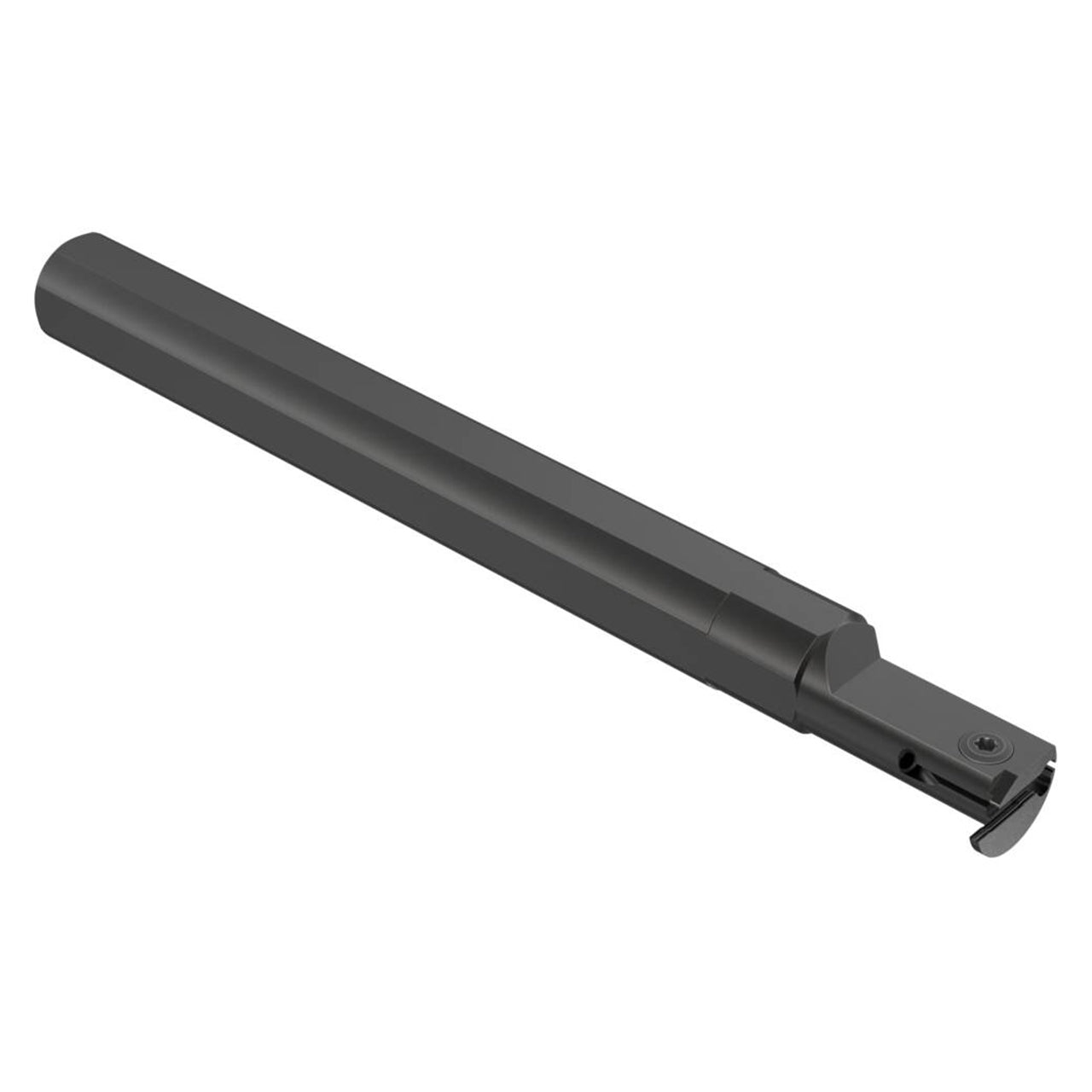

| Product Type | Indexable Grooving Toolholder |
