Product Specifications
| Manufacturer Part Number | 02748737 |
| Functional Length (mm) | 150.00mm |
| Head Length (mm) | 46.00mm |
| Shank Width (mm) | 16.00mm |
| Maximum Cutting Depth (mm) | 26.00mm |
| Cutting Width (mm) | 2.00mm |
| Height of Tool Holder Shank (mm) | 16.00mm |
| Functional Height (mm) | 16.00mm |
| Functional Width (mm) | 16.00mm |
| Cutting Direction | Left Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Shank Type | Square shank |

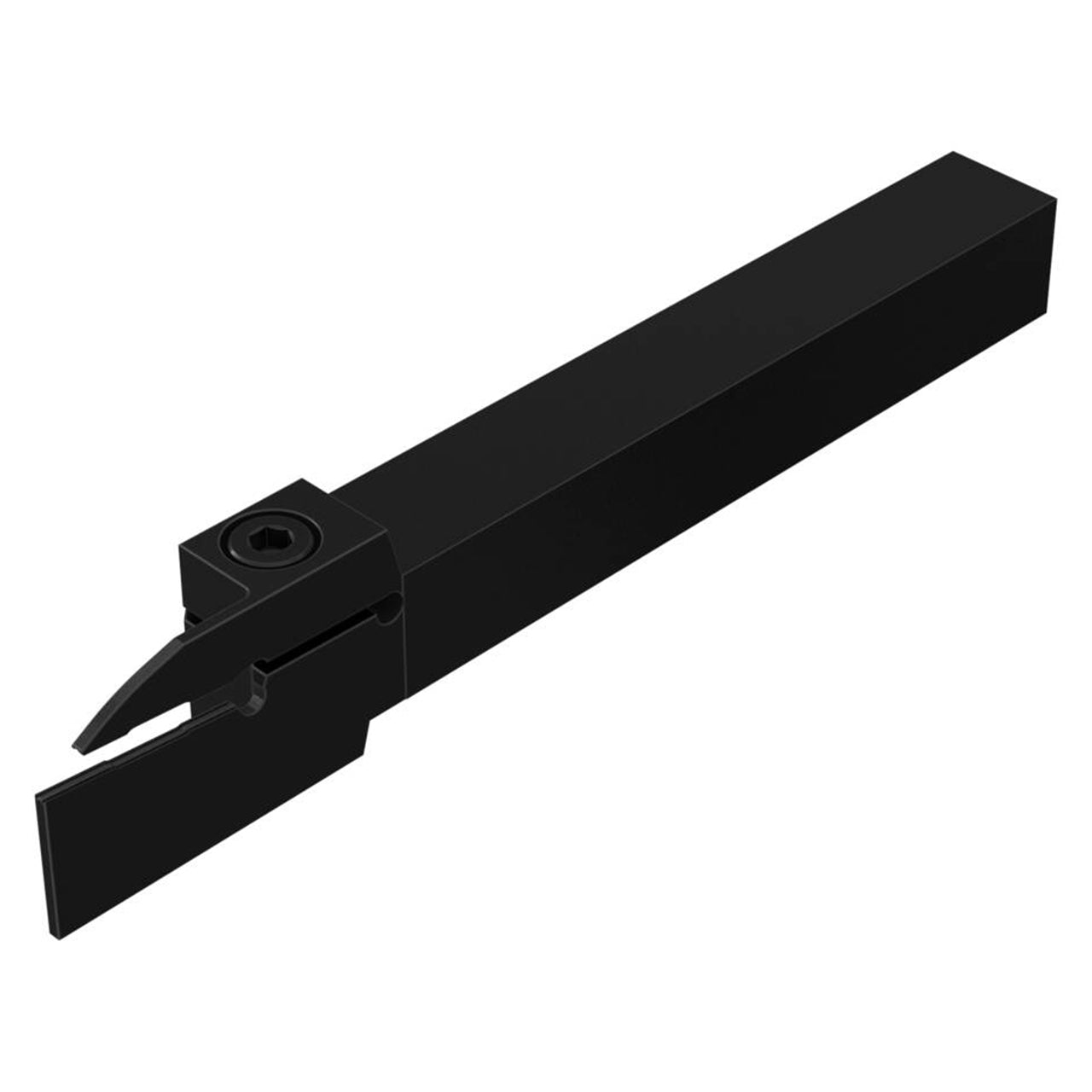

| Product Type | Indexable Grooving Toolholder |
