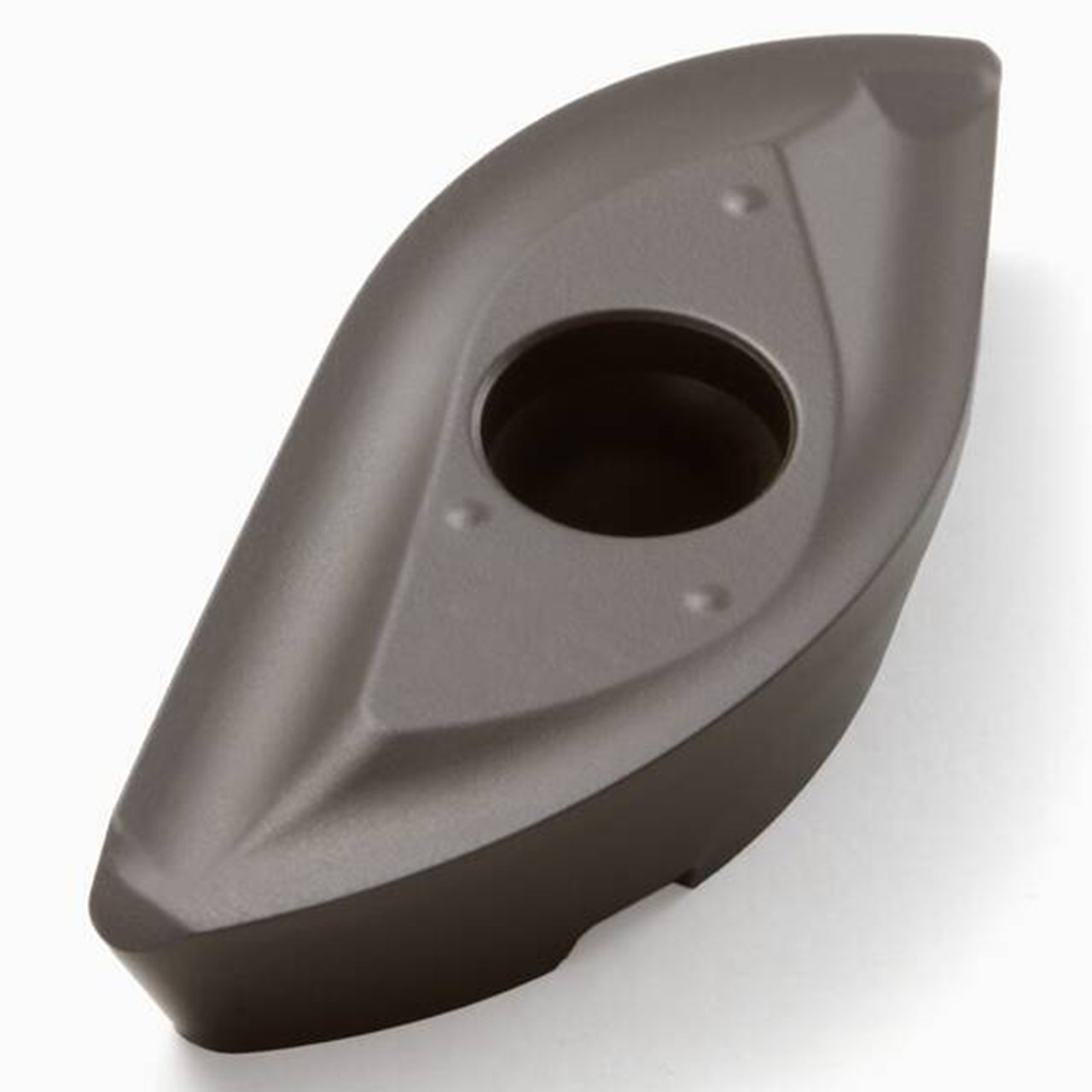

Product Specifications
| Manufacturer Part Number | 02744288 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.271" |
| Inscribed Circle Diameter (mm) | 6.88mm |
| Insert Length (Decimal Inch) | 0.616" |
| Insert Length (mm) | 15.64mm |
| Corner Radius (Decimal Inch) | 0.315" |
| Corner Radius (mm) | 8.00mm |
| Insert Thickness (Decimal Inch) | 0.126" |
| Insert Thickness (mm) | 3.21mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 11 Degree |
| Insert Rake Angle (Degree) | 1 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M04 |
| Pocket Seat Code of The Cutter | 218.20-080 |
| Insert Size And Shape | 218.20-080 |
| Insert Shape Code | 218.20 |
| Material | Carbide |
| Product Type | Milling Insert |
