Product Specifications
| Manufacturer Part Number | 02740497 |
| Cutting Diameter (Decimal Inch) | 10.000" |
| Cutting Diameter (mm) | 254.00mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.000" |
| Contact Surface Diameter Machine Side (mm) | 76.20mm |
| Functional Length (Decimal Inch) | 0.509" |
| Functional Length (mm) | 12.94mm |
| Keyway Width (Decimal Inch) | 0.500" |
| Keyway Width (mm) | 12.70mm |
| Cutting Width (Decimal Inch) | 0.394" |
| Cutting Width (mm) | 10.00mm |
| Minimum Cutting Width (Decimal Inch) | 0.394" |
| Minimum Cutting Width (mm) | 10.00mm |
| Maximum Cutting Width (Decimal Inch) | 0.472" |
| Maximum Depth of Cut (Decimal Inch) | 0.472" |
| Maximum Depth of Cut (mm) | 12.00mm |
| Maximum Cutting Depth (Decimal Inch) | 3.386" |
| Maximum Cutting Depth (mm) | 86.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 6000 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0605 / LNK.0805 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

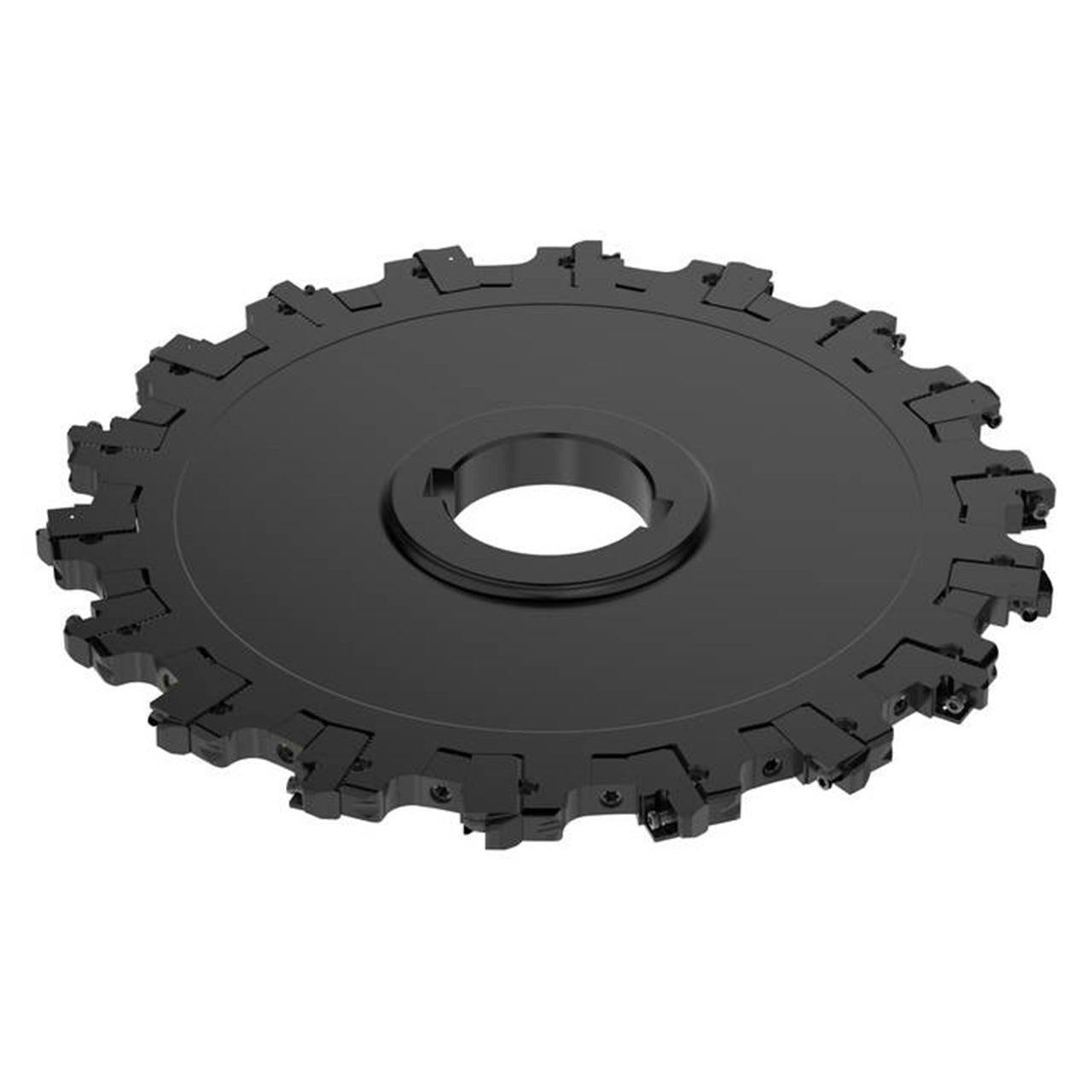

| Product Type | Indexable Slotting Cutter |
