Product Specifications

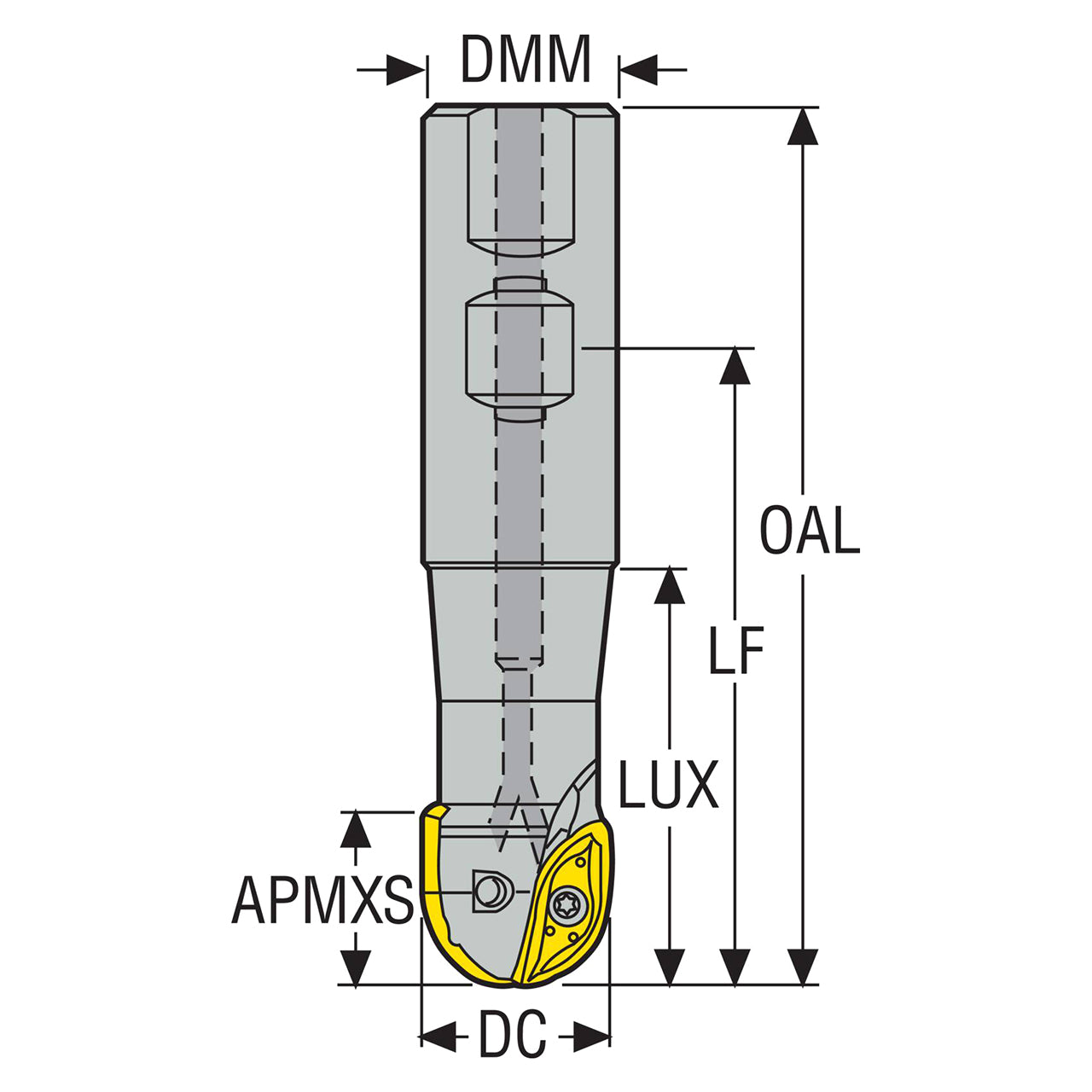

| Manufacturer Part Number | 02740375 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Cutting Diameter (mm) | 50.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 2.000" |
| Connection Diameter Machine Side (mm) | 50.80mm |
| Shank Diameter (Decimal Inch) | 2.000" |
| Shank Diameter (mm) | 50.80mm |
| Functional Length (Decimal Inch) | 6.124" |
| Functional Length (mm) | 155.54mm |
| Protruding Length (Decimal Inch) | 4.818" |
| Protruding Length (mm) | 122.37mm |
| Shank Length (Decimal Inch) | 3.243" |
| Shank Length (mm) | 82.37mm |
| Overall Length (Decimal Inch) | 7.967" |
| Overall Length (mm) | 202.37mm |
| Maximum Depth of Cut (mm) | 70.00mm |
| Maximum Depth of Cut (Decimal Inch) | 2.756" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Maximum Rotational Speed (rpm) | 3700 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Insert Shape Code | 218.20 / S |
| Shank Type | Weldon |
| Product Type | Indexable Ball Nose End Mill |
