Product Specifications
| Manufacturer Part Number | 02735924 |
| Cutting Diameter (mm) | 15.92mm |
| Contact Surface Diameter Machine Side (mm) | 23.00mm |
| Thread Diameter Size | M12 |
| Functional Length (mm) | 50.00mm |
| Overall Length (mm) | 71.75mm |
| Maximum Depth of Cut (mm) | 28.00mm |
| Connection Mounting Torque (Nm) | 60.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Rotational Speed (rpm) | 18000 rpm |
| Sphere Angle (Degree) | 172 Degree |
| Insert Shape Code | 218.20 / X |
| Shank Type | Combimaster |

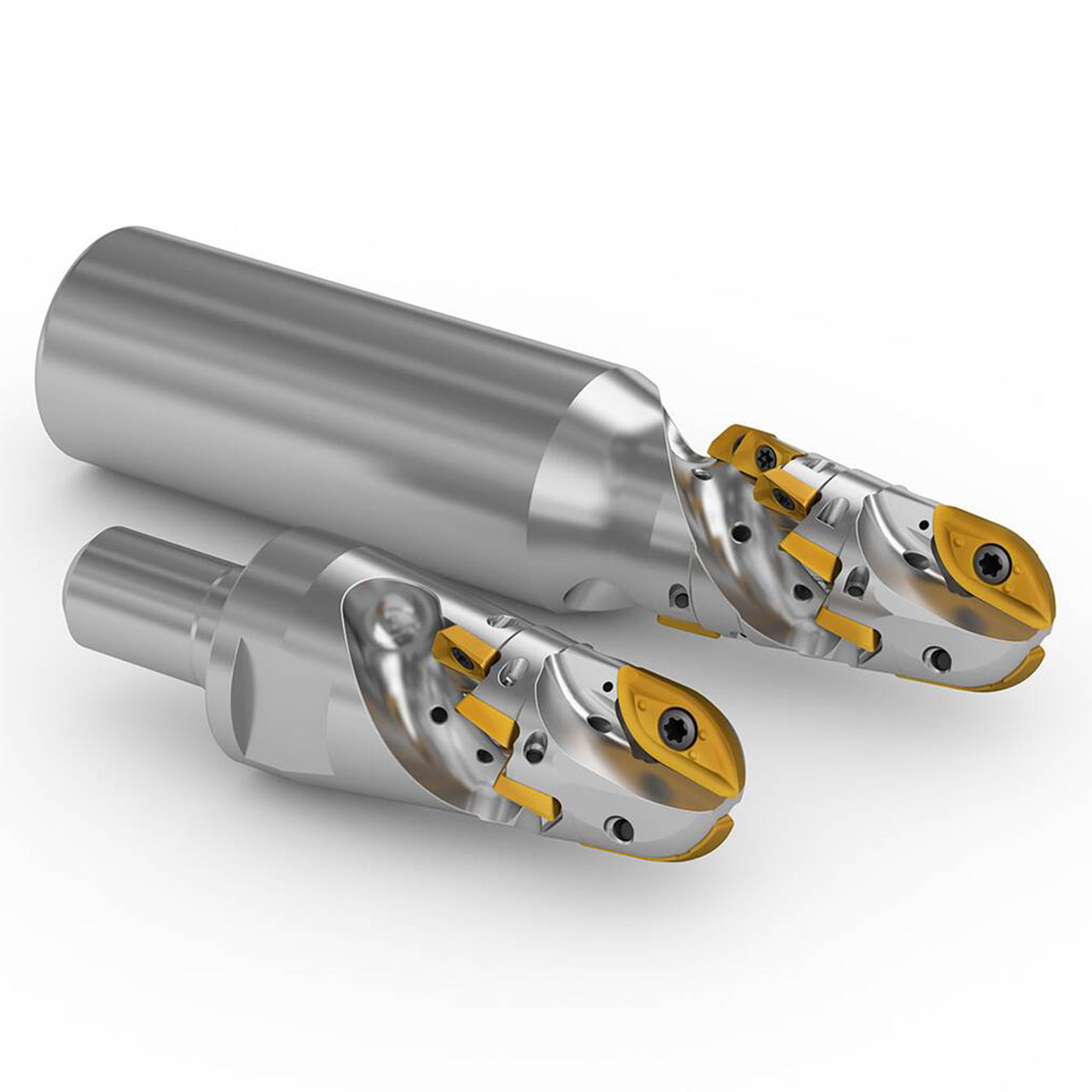

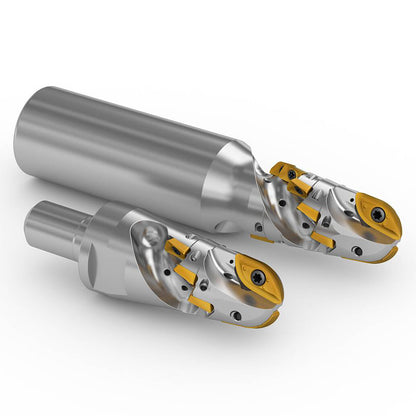

| Product Type | Indexable Ball Nose End Mill |
