Product Specifications
| Manufacturer Part Number | 02735709 |
| Cutting Diameter (mm) | 30.00mm |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Maximum Cutting Diameter (mm) | 30.00mm |
| Thread Diameter Size | M10 |
| Functional Length (mm) | 20.00mm |
| Maximum Depth of Cut (mm) | 2.60mm |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -18 Degree |
| Rake Radial Angle (Degree) | -18 Degree |
| Rake Orthogonal Angle (Degree) | -18 Degree |
| Axial Rake Angle (Degree) | -5 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 18900 rpm |
| Insert Shape Code | S |
| Shank Type | Combimaster |

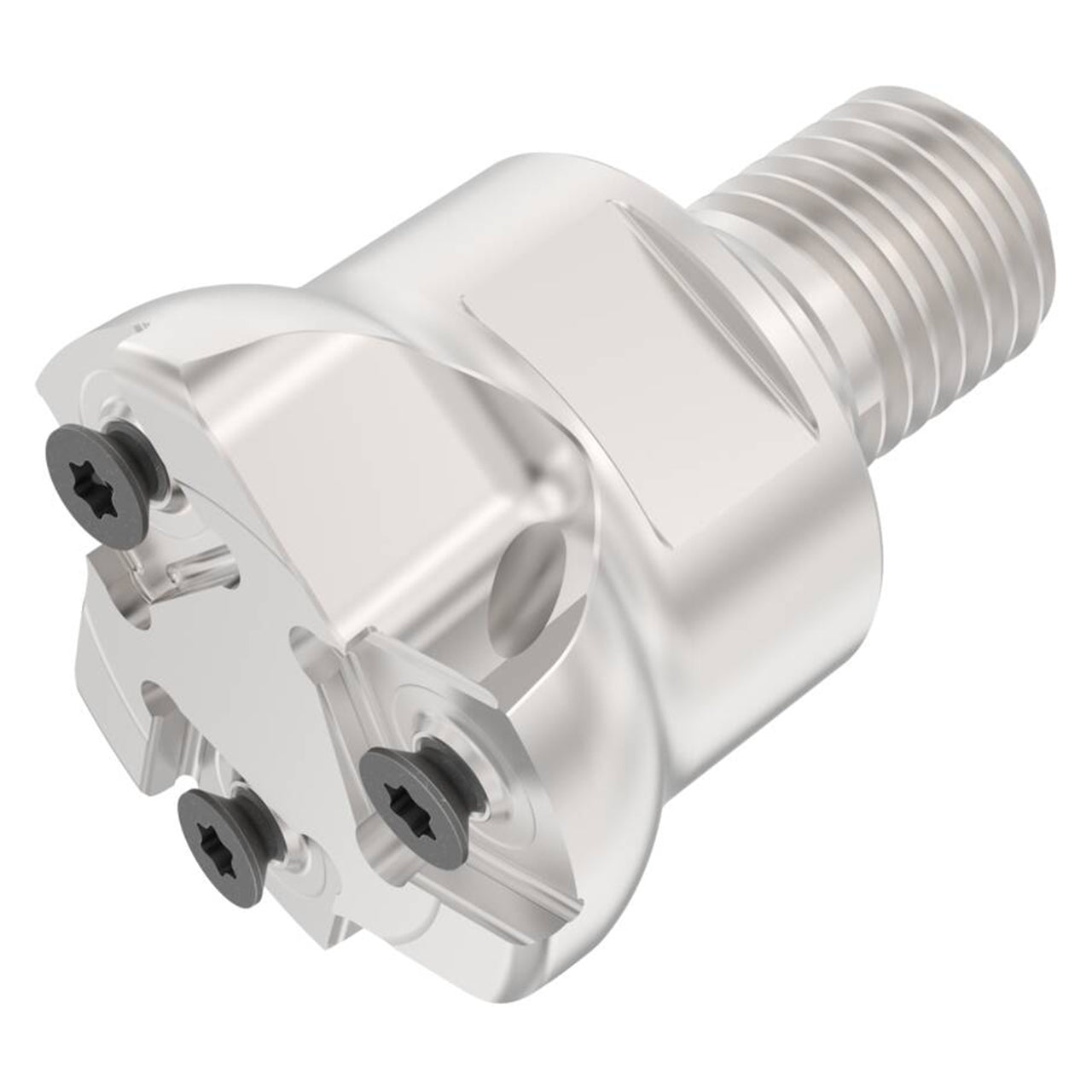

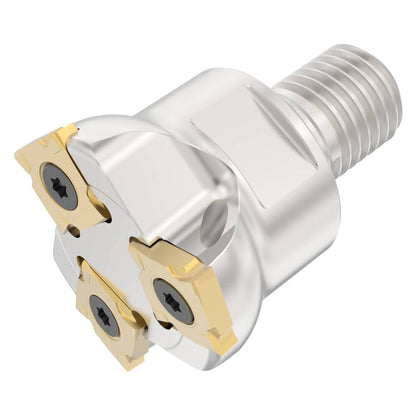

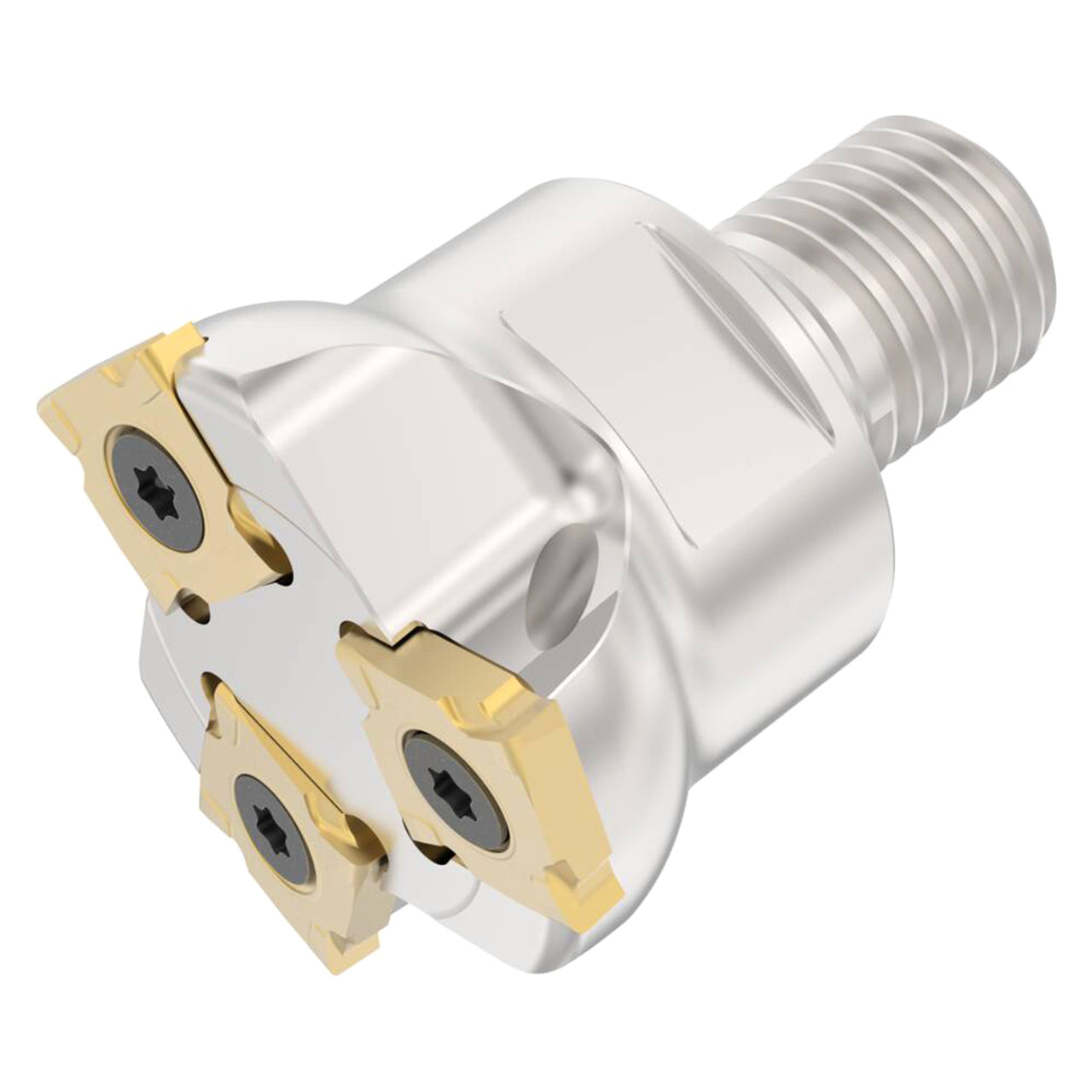

| Product Type | Indexable Copy Face Mill |
