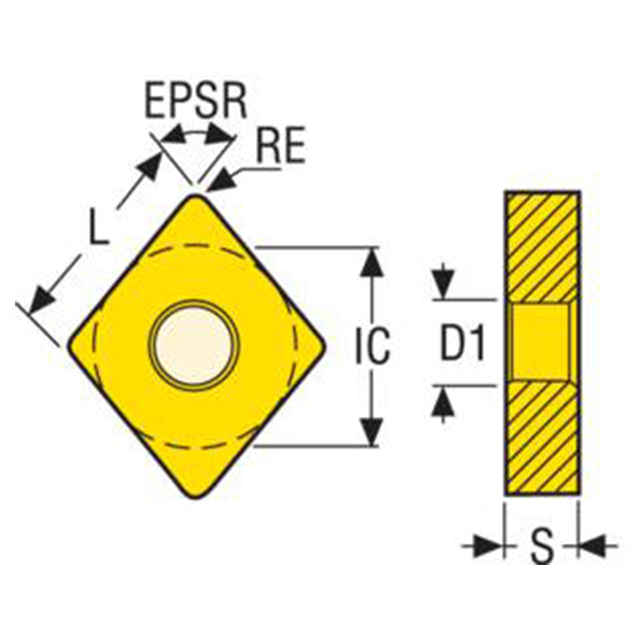

Product Specifications
| Manufacturer Part Number | 02728723 |
| Fixing Hole Diameter (Decimal Inch) | 0.203" |
| Fixing Hole Diameter (mm) | 5.15mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.118" |
| Cutting Edge Effective Length (mm) | 3.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.004" |
| Corner Chamfer Width (mm) | 0.10mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Condition Code | E |
| Cutting Edge Count | 4 |
| Insert Size And Shape | CN1204 |
| Insert Included Angle (Degree) | 80 Degree |
| Material | PCBN |
| Product Type | PCBN Tipped Turning Insert |
